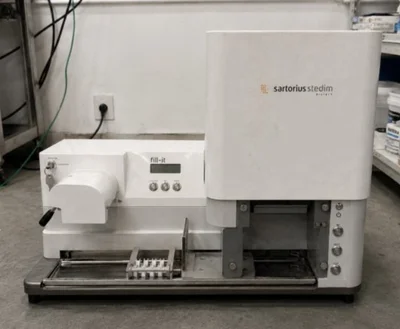

USED SARTORIUS / ESSEN / INTELLICYT FILL-IT AUTOMATED FILLING SYSTEM

The Sartorius Fill-It™ Automated Filling System is a GMP-ready automated cryovial filling platform designed for the rapid, aseptic preparation of cell banks and strain banks. The system automates the decapping, filling, and recapping of cryovials using sterile single-use tubing sets, significantly reducing manual handling while improving fill consistency, cell viability, and process reproducibility.

Designed to fit inside standard biological safety cabinets, the Fill-It system processes 24-, 48-, or 96-vial racks in a single automated cycle. It is widely used in biotechnology, pharmaceutical, cell therapy, and vaccine manufacturing laboratories for preparing Master Cell Banks (MCB) and Working Cell Banks (WCB). Manufacture of the Fill-It instrument was discontinued at the end of 2024, although Sartorius continues to provide service, spare parts, tube sets, and accessories through 31 December 2031, subject to availability.

---------------------------------------------------------------
Key Highlights

- Automated decapping, filling, and recapping of cryovials
- Designed for GMP cell banking and strain banking
- Processes 24-, 48-, or 96-vial racks
- Sterile disposable single-use tube sets
- Dispense volume range: 250 µL–5 mL
- Dispense volume resolution: 1 µL
- Typical processing time: ~92 seconds per rack
- Fits inside standard biological safety cabinets
- Compatible with Corning, Nunc, Nalgene, and Matrix cryovials
- Minimizes contamination risk and repetitive manual handling
- Improves batch consistency and cell viability
---------------------------------------------------------------

Applications / Uses

- Master Cell Bank (MCB) preparation
- Working Cell Bank (WCB) preparation
- Strain banking
- Cell therapy manufacturing
- Vaccine production
- Biopharmaceutical manufacturing
- Microbial banking
- GMP bioprocessing
- Research and development
- Quality-controlled cryopreservation
---------------------------------------------------------------

Typical Specifications (Summary)

- System Type: Automated Cryovial Filling System
- Dispense Volume: 250 µL–5 mL
- Volume Resolution: 1 µL
- Dispensing Accuracy: Approximately ±10% (after calibration)
- Typical Dispense Speed: 350–800 µL/sec
- Rack Formats: 24, 48, or 96 cryovials
- Typical Cycle Time: ~92 seconds per rack (decap, fill, recap)
- Supported Cryovials: Corning, Nunc, Nalgene, Matrix (compatible formats)
- Operating Temperature: 4°C–30°C
- Power Requirements: 110–240 VAC, 50/60 Hz
- Weight: Approximately 70 kg
---------------------------------------------------------------

Typical Configuration Includes

- Sartorius Fill-It instrument
- Automated decap/recap module
- Dispensing module
- Rack transfer mechanism
- Control interface
- Power cord
- User documentation
