NEW BRAD CONNECTIVITY 1200650503

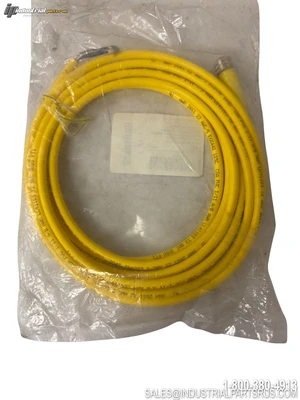

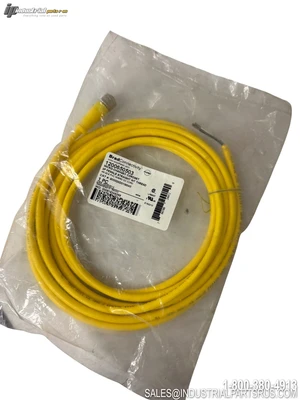

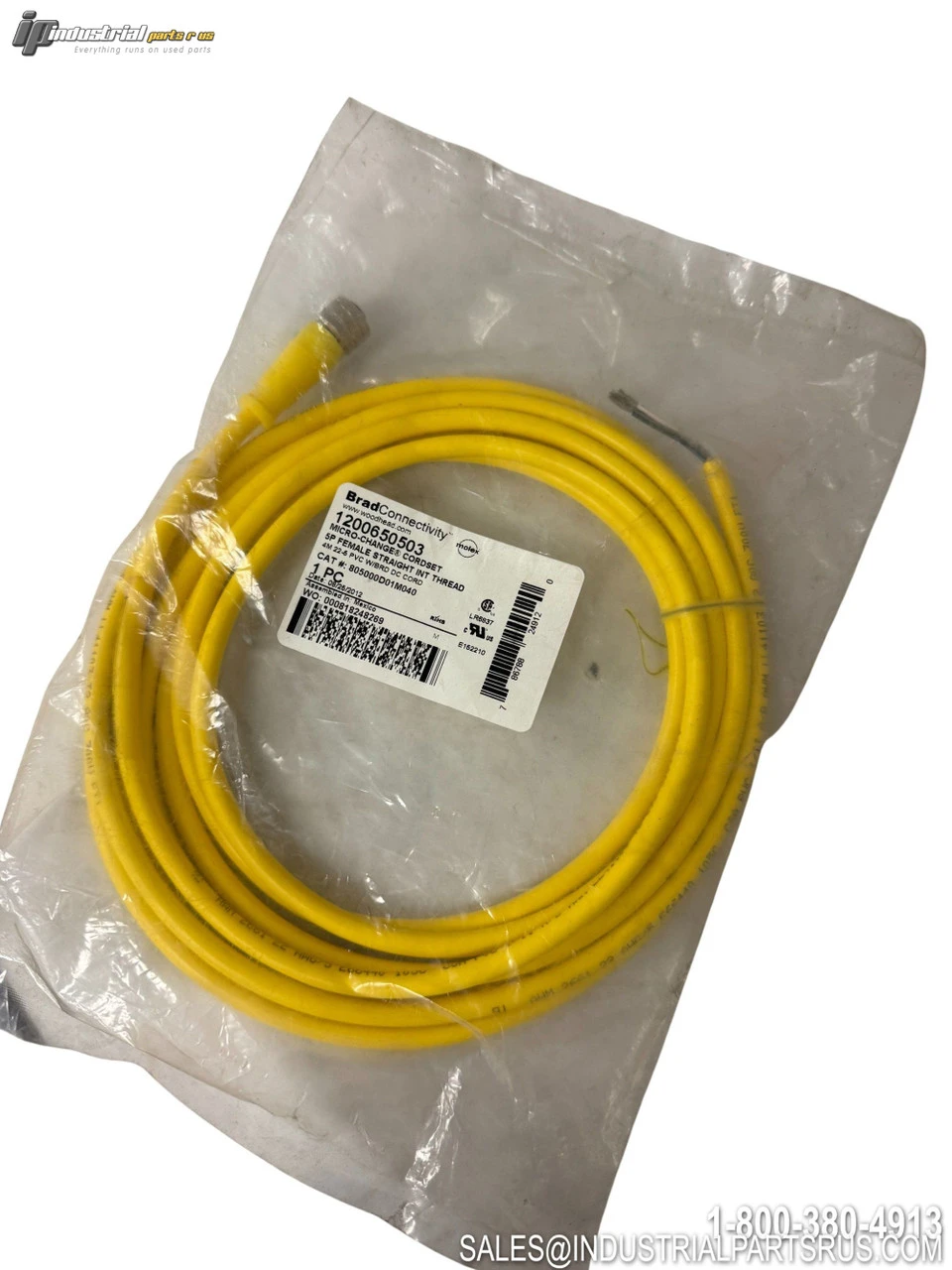

The Brad Connectivity 1200650503 is a Micro-Change® (M12) single-ended cordset from the 120065 series, featuring a 5-pole straight female connector to pigtail (open end) termination. Designed for sensor and actuator connectivity in harsh industrial environments, this cordset meets IEC 61076-2-101 and NEMA 6P/IP67 standards, making it suitable for use in wet and demanding factory floor applications. It is cross-referenced as Molex/Woodhead part number 805000D01M040. The cable is unshielded and rated for both AC and DC current, compatible with panel mount installations.
Specification
Value
Brand
Brad Connectivity
Model / Part Number
1200650503
Molex Cross-Reference (Modern PN)
805000D01M040 / 120065-0503
Series
Micro-Change 120065
Connector Type
M12 x 1
Number of Poles
5
Gender
Female
Connector Orientation
Straight (0°)
Termination Type
Pigtail (Open End)
Cable Length
4 m (13.12 ft)
Wire Gauge
22 AWG
Cable Material
PVC (Yellow Jacket)
Shield
Unshielded
Keyway
Single Keyway (A-Coding)
Rated Voltage
250 VAC/VDC
Current Type
AC/DC
Rated Current
4 A
IP Rating
IP67 / NEMA 6P
IEC Standard
IEC 61076-2-101
Contact Material
Gold over Nickel Plated Copper Alloy
Connector Body Material
PUR
Coupling Nut Material
Nickel Plated Brass
Thread
M12 x 1 (Internal Thread)
Compatible Mounting Type
Panel Mount
Application
Sensors, Encoders, Switches, Actuators
Manufacturer
Molex (formerly Brad Connectivity / Woodhead)
We warranty all items for 30 days from date of purchase.
