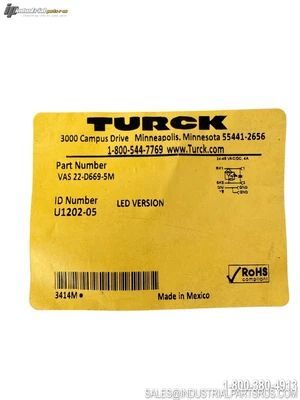

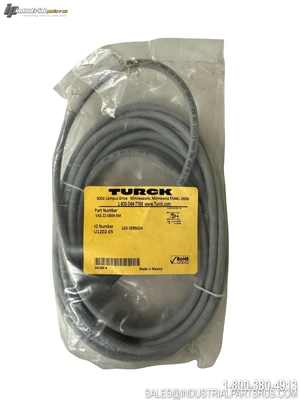

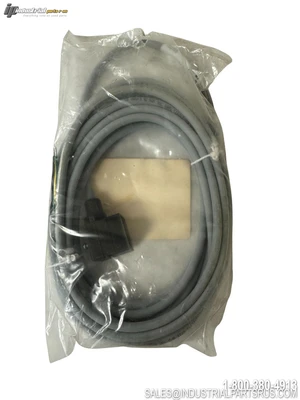

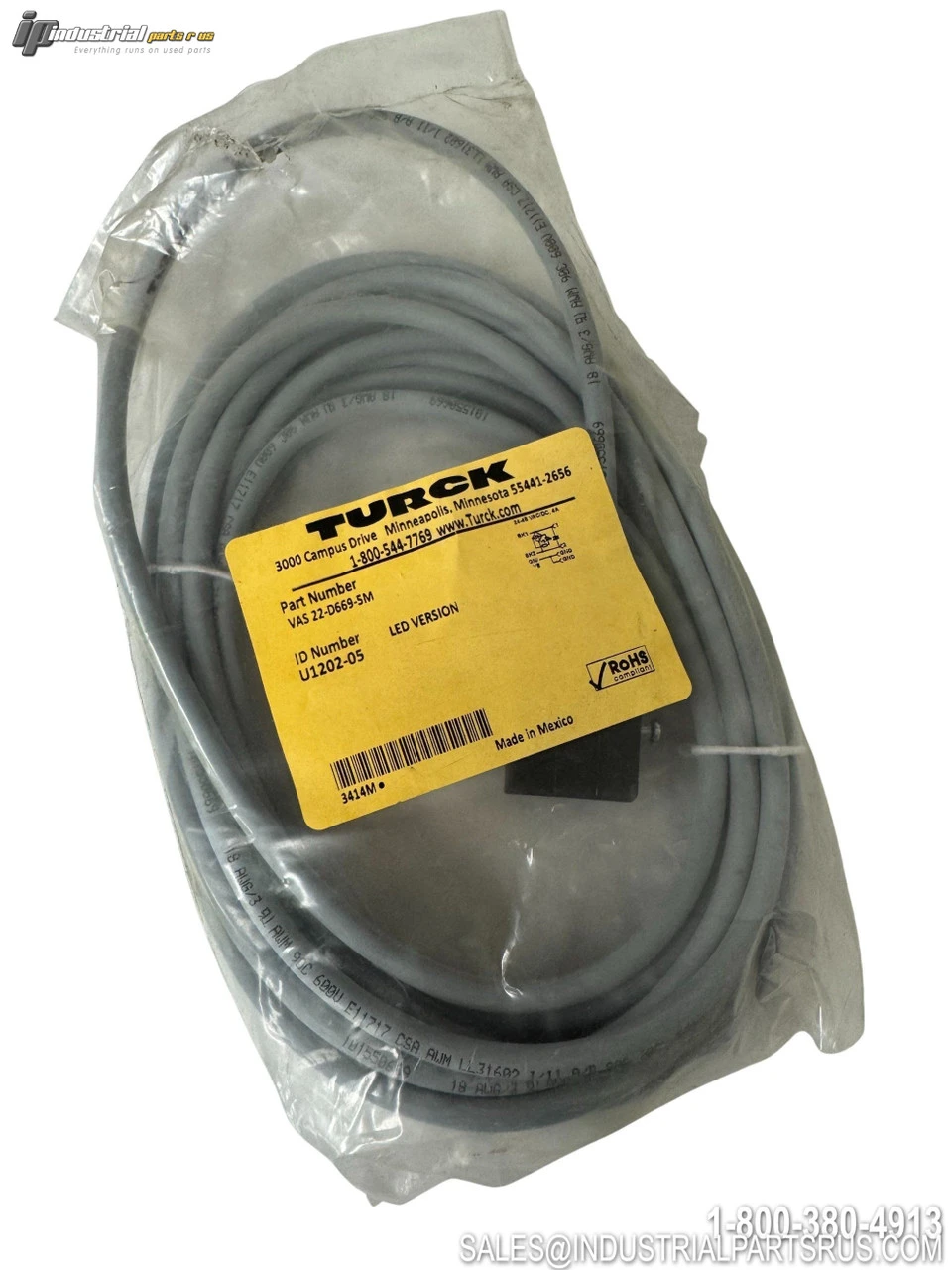

NEW TURCK VAS 22-D669-5M

The Turck VAS 22-D669-5M is a single-ended valve solenoid connection cable (cordset) designed to connect DIN 43650 Form A valve solenoids to an automation system via bare-end flying leads. It features an 18mm Type A contact spacing housing equipped with an indicator LED and MOV (Metal Oxide Varistor) surge suppressor, a 4-pin female DIN 43650 connector with the cable exit on the side opposite the ground, and a 5-meter TPU-jacketed gray cable with 3 × 18 AWG conductors. This cordset is IP67-rated when properly connected and is RoHS compliant, making it suitable for demanding industrial valve wiring applications.
Specification
Value
Brand
Turck
Model / Part Number
VAS 22-D669-5M
Alternate Part Number (Order Code)
U1202-05
Product Type
Single-Ended Valve Solenoid Cordset (Open-End)
Series / Product Family
Valve Plug Connectivity – DIN 43650 to Bare Leads
Connector Type (End 1)
4-Pin Female DIN 43650 Valve Plug, Form A, 18mm Contact Spacing
Connector Type (End 2)
Bare End Flying Leads
Connector Orientation
Right Angle (Cable exit opposite ground side)
Pin Count
3 Pin (2 conductors + 1 ground; ground contacts parallel wired)
Cable Length
5 m (16.4 ft)
Number of Conductors
3 (2 Signal + 1 Ground)
Wire Gauge
#18 AWG
Jacket Material
TPU (Thermoplastic Polyurethane)
Jacket Color
Gray
Housing Color
Translucent Black
Contact Material
Brass
Contact Plating
Silver
Rated Voltage (AC)
48 VAC
Rated Current
4 A
Suppression / Indicator
Indicator LED + MOV (Metal Oxide Varistor)
IP Protection Rating
IP67 (IEC) when connected and secured
NEMA Rating
NEMA 1, 3, 4, 6P
Housing / Body Material
Oil-Resistant Polyurethane Body; Nylon Contact Carrier
Compliance
RoHS Compliant
IEC Connector Standard
DIN 43650 Form A
We warranty all items for 30 days from date of purchase.
