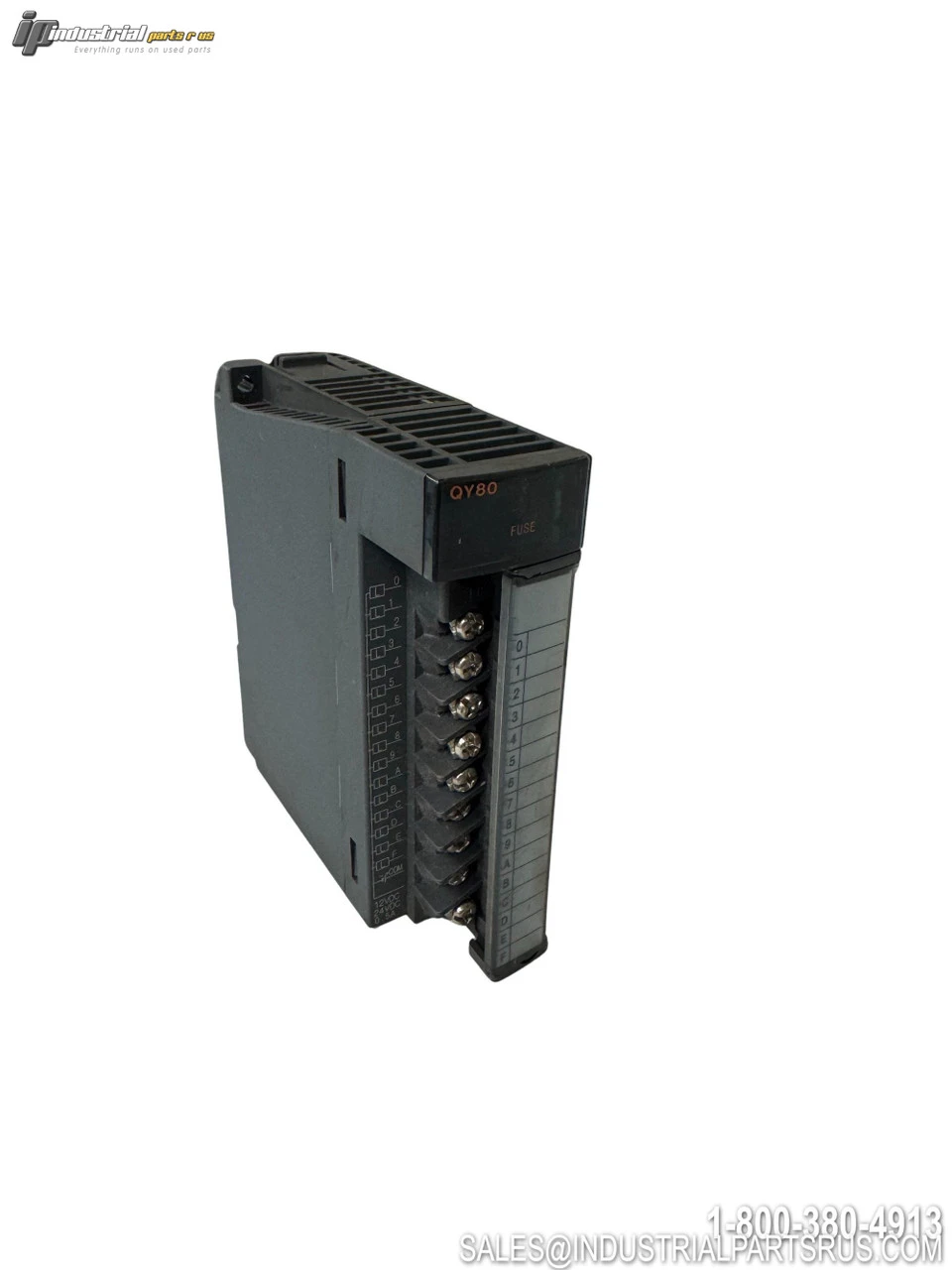

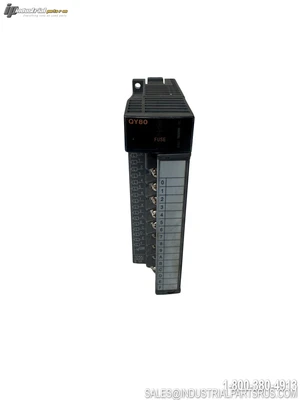

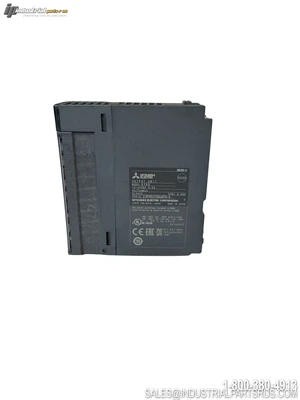

USED MITSUBISHI QY80

The Mitsubishi Electric QY80 is a transistor output module (source type) designed for use with MELSEC-Q Series programmable logic controllers. It provides 16 digital output points capable of controlling DC loads such as solenoids, relays, contactors, and indicator lamps, with optical isolation on each channel for noise immunity and surge protection. The module features built-in fuses for output circuit protection and a blown-fuse indicator LED, and uses screw-type terminals on an 18-point terminal block for reliable field wiring connections.
Specification
Value
Brand
Mitsubishi Electric
Model / Part Number
QY80
Product Type
Transistor Output Module (Source Type)
Series
MELSEC-Q (Q Series)
Output Points
16 Points
Output Type
Transistor, Source Type
Rated Load Voltage
12–24 VDC
Max Load Current per Point
0.5 A
Max Load Current per Common
4 A
Points per Common
16 Points / 1 Common
OFF Leakage Current
0.1 mA max
Response Time
1 ms
Internal Current Consumption
0.08 A (80 mA)
Isolation Method
Photocoupler (Optical Isolation) + Zener Diode Surge Suppressor
Surge Absorber
Yes (Built-in)
Fuse Protection
Yes (Built-in), with blown-fuse LED indicator
Terminal Type
Screw Terminals, 18-Point Terminal Block
Compatible Wire Size
0.3 mm² – 0.75 mm²
Width
27.4 mm
Height
98 mm
Depth
90 mm
Weight
0.152 kg (approx.)
Compatible PLC Platform
Mitsubishi MELSEC-Q Series (QnU)
Applications
Solenoids, Relays, Contactors, Indicator Lamps, Actuators
We warranty all items for 30 days from date of purchase.
