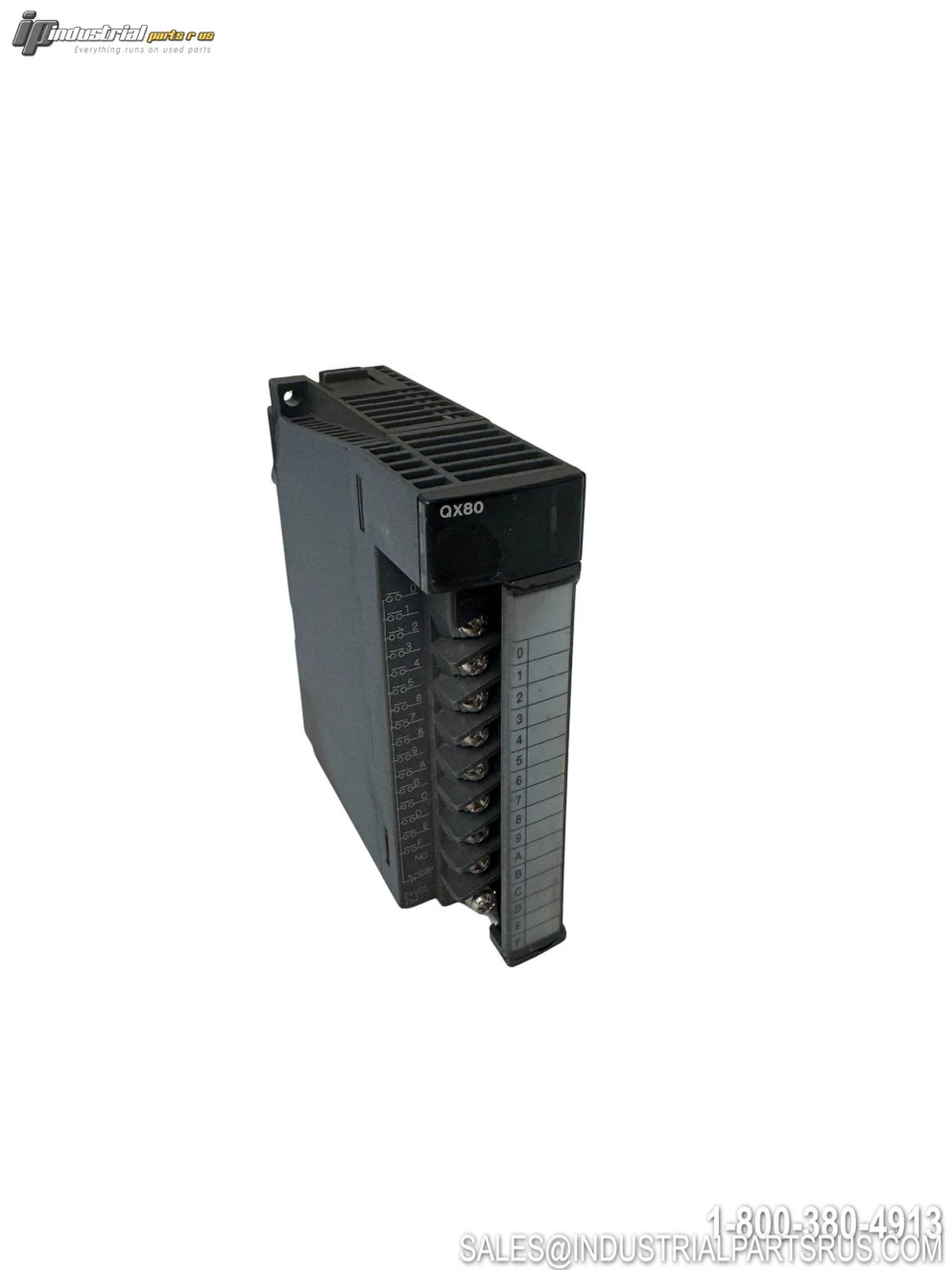

USED MITSUBISHI QX80

The Mitsubishi Electric QX80 is a 16-point DC digital input module from the MELSEC-Q Series (QnU) programmable controller platform. It accepts 24V DC sink-type (minus common) input signals from external devices such as sensors and switches, and transmits them to the system CPU via photocoupler isolation. The module features a configurable response time and mounts directly to the Q-Series base unit using a snap-in mounting lever, with wiring via an 18-point screw terminal block.
Specification
Value
Brand
Mitsubishi Electric
Model / Part Number
QX80
Product Series
MELSEC-Q (QnU)
Module Type
DC Digital Input Module (Minus Common / Sink Type)
Input Points
16 Points
Occupied I/O Points
16
Rated Input Voltage
24V DC
Input Voltage Operating Range
19.2 – 28.8V DC
Rated Input Current
Approx. 4 mA
ON Voltage (Min)
19V DC
ON Current (Min)
3 mA
OFF Voltage (Max)
11V DC
OFF Current (Max)
1.7 mA
Response Time (OFF→ON / ON→OFF)
1 / 5 / 10 / 20 / 70 ms (configurable via PLC parameter)
Isolation Method
Photocoupler
Insulation Resistance
10 MΩ
Dielectric Withstand Voltage
560V AC (up to 2000 m altitude)
Noise Immunity
500V noise voltage, 1 µs noise width
Internal Current Consumption (5V DC)
0.05 A (50 mA typical, all 16 points ON)
Common Terminal
16 points / 1 common (TB18); TB17 vacant
Wiring / Terminal Type
18-point screw terminal block (M3)
Cable Wire Size
0.3 – 0.75 mm² (AWG22–18)
Protection / IP Rating
IP2X (IP20)
Status Indicator
LED (per input point, ON/OFF)
Dimensions (H × W × D)
98 × 27.4 × 90 mm
Weight
0.144 – 0.16 kg
Mounting Type
Base unit slot mount (Q-Series base unit)
Compatible Programming Software
GX Works2, GX Developer
Certifications
CE, UL/cUL, UKCA, Marine (ABS, BV, DNV GL, LR, NK, RINA)
We warranty all items for 30 days from date of purchase.
