USED 2019 IRONWOOD DBR50 Double-Line Boring Machine
Overview

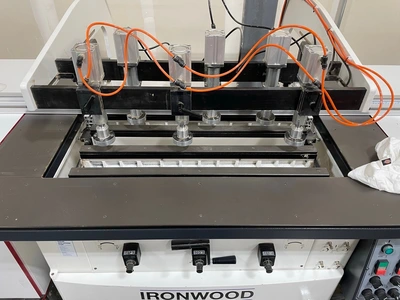

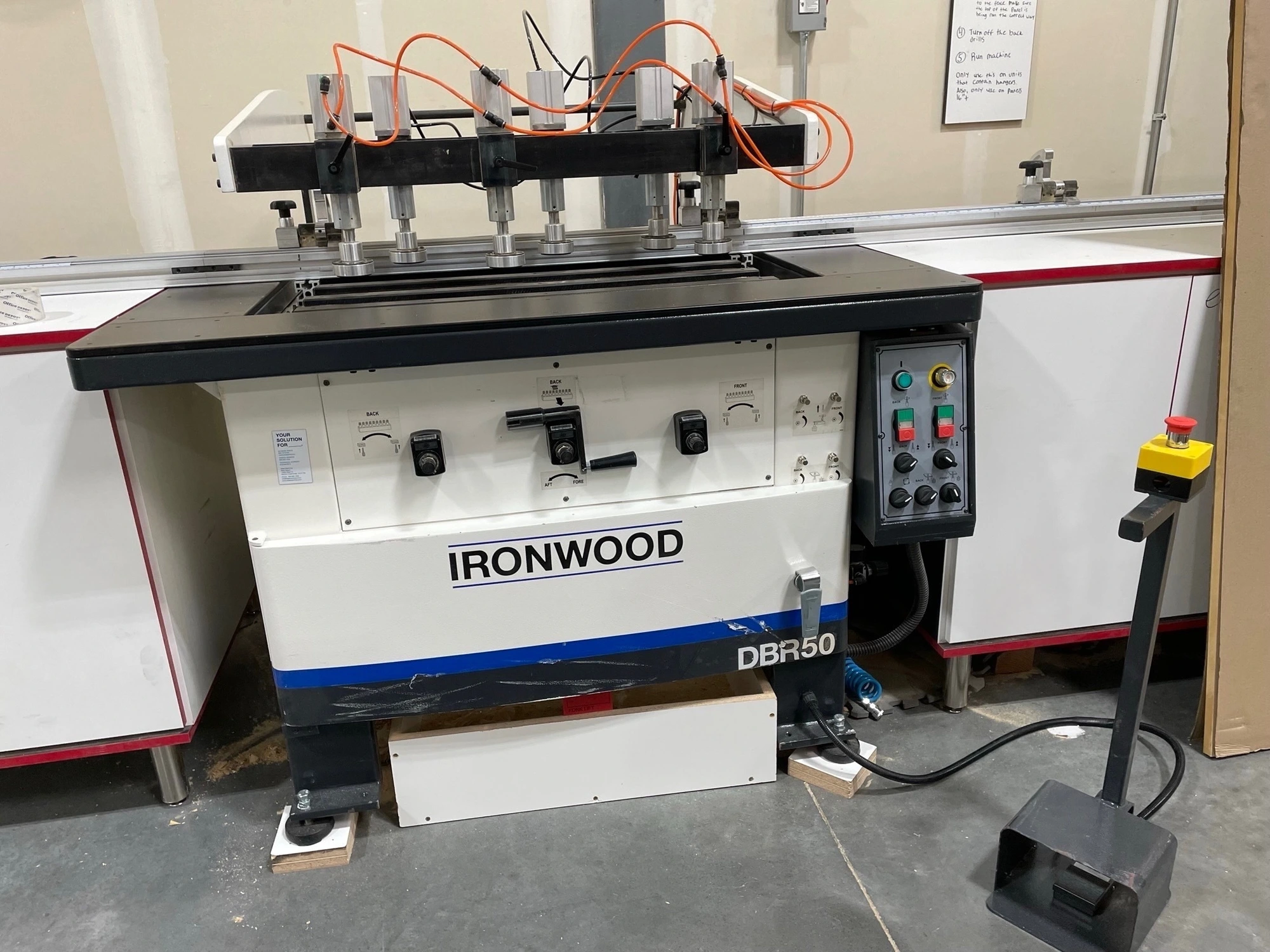

2019 IRONWOOD DBR50 Double-Line Boring Machine (Used)
Excellent Condition • Professionally Maintained • 50 Spindles • System 32 Line Boring • Digital Positioning
This 2019 IRONWOOD DBR50 Double-Line Boring Machine is in excellent condition, has been professionally maintained, and remains under power in production. Designed around the industry-standard 32 mm construction system, the DBR50 delivers fast, accurate, and repeatable drilling for cabinet manufacturing, closet systems, furniture production, architectural millwork, and commercial casework applications.
Featuring dual independently driven 25-spindle boring heads, the DBR50 functions as a high-production System 32 line boring machine capable of drilling multiple rows in a single operation. Digital positioning readouts, independently adjustable boring heads, and six pneumatic clamps dramatically reduce setup time while delivering exceptional accuracy and repeatability.
The machine's large work surface, heavy-duty extension fence, and ergonomic controls make it ideal for processing everything from small cabinet components to large panels. Whether used for construction boring, shelf pin drilling, hinge plate drilling, or System 32 machining, the DBR50 is designed to maximize productivity while maintaining outstanding hole quality.
Specs
Machine Specifications
• Manufacturer: IRONWOOD
• Model: DBR50
• Year: 2019
• Machine Type: Double-Line Boring Machine
• Condition: Excellent
• Number of Boring Heads: 2
• Spindles per Boring Head: 25
• Total Spindles: 50
• Spindle Center Distance: 32 mm
• Adjustable Distance Between Boring Heads: 145 mm – 620 mm
• Maximum Boring Depth: 70 mm
• Maximum Workpiece Thickness: 100 mm
• Working Table: 820 mm × 1150 mm
• Working Height: 33-3/4"
• Motors: (2) 3 HP
• Electrical: 230V • 3 Phase • 60 Hz
• Net Weight: 1,606 lbs.
---
Control System
• Digital positioning readouts
• Front-mounted depth and positioning adjustments
• Automatic and manual operating modes
• Pivoting operator control station
• Adjustable drilling feed speed
---
Machine Configuration
• Dual independently driven boring heads
• (50) quick-change drill chucks included
• (6) quick-release pneumatic clamps
• Heavy-duty 3000 mm extension fence
• Dual-bearing flip stops with hairline indicators
• Parallel rear fence adjustment system
• Secondary indexing scale for rapid positioning
• Large surround support tables with micro-dot work surface
---
Performance Features
• Simultaneous dual-row drilling significantly increases production throughput
• Digital positioning improves setup speed and drilling accuracy
• Independently adjustable boring heads maximize production flexibility
• Hydro-buffer braking system provides smooth blind-hole and through-hole drilling
• Adjustable drilling feed rate produces clean holes in a variety of materials
• Large work support allows efficient processing of oversized cabinet components
---
Operator Features
• Six pneumatic clamps securely hold workpieces during drilling
• Quick-release clamp pressure protection enhances operator safety
• Front storage compartment accommodates up to 50 additional drill bits
• Easy-access maintenance door simplifies service and cleaning
• Ergonomic machine layout improves operator productivity
---
Applications
• System 32 Construction
• Cabinet Manufacturing
• Closet Systems
• Commercial Casework
• Furniture Manufacturing
• Architectural Millwork
• Shelf Pin Drilling
• Construction Boring
• Hinge Plate Drilling
• Line Boring Operations
---
Why Buy This Machine?
• Excellent condition and professionally maintained
• High-production System 32 line boring machine with dual independently driven boring heads
• 50 total spindles dramatically reduce drilling cycle times
• Digital positioning minimizes setup time while improving accuracy and repeatability
• Heavy-duty industrial construction designed for continuous production environments
• Large working surface accommodates a wide variety of cabinet and furniture components
• Complete package includes 50 quick-change drill chucks
• Significant savings compared to purchasing a comparable new industrial line boring machine
---
Availability
• Earliest pickup/removal date: August 1, 2026
• Equipment remains under power and in operation
• Inspection available by appointment
• Removal cannot occur prior to August 1, 2026
• Freight quotes, financing, installation assistance, and loading assistance available
All information, including specifications, photos, videos, and descriptions, is believed to be accurate but is not guaranteed. Buyers are responsible for independently verifying machine condition, specifications, tooling, electrical requirements, dimensions, and all other details prior to purchase.
