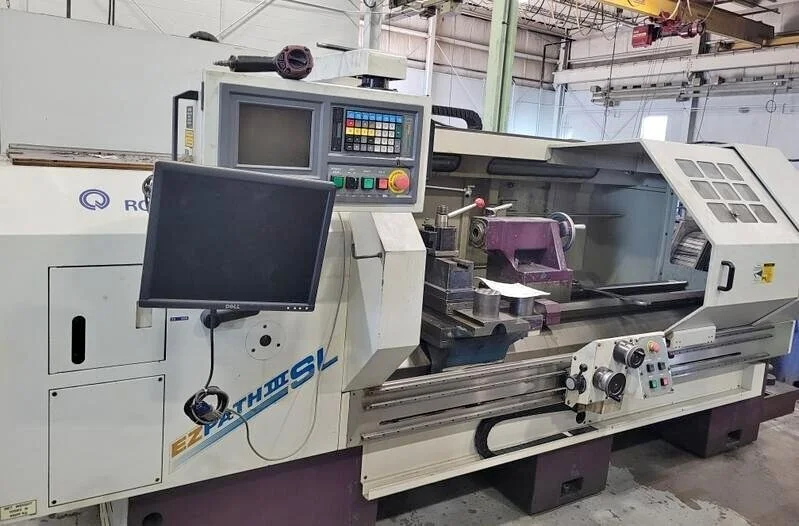

USED BRIDGEPORT EZ PATH III SL
Overview
Used multi-axis CNC lathe features a 27" swing over bed, 84" between centers, and a variable spindle speed of 25-2,000 RPM. Includes BRIDGEPORT CNC control, manual/automatic operation, and a 20 HP spindle motor.
Specs
SWING OVER BED......................... 27"
DISTANCE BETWEEN CENTERS............... 84"
SWING OVER CROSS SLIDE................. 16.93"
CROSS SLIDE TRAVEL .................... 14.17"
SPINDLE NOSE........................... ASA A2-8"
SPINDLE BORE........................... 3-1/4"
SPINDLE SPEEDS VARIABLE ............... 25 TO 2,000 RPM
TAILSTOCK QUILL TRAVEL................. 7.09"
TAILSTOCK QUILL DIAMETER............... 3.94"
TAILSTOCK TAPER........................ #5MT
FLOOR SPACE REQUIRED................... 80" X 176"
APPROXIMATE WEIGHT..................... 15,000 LBS.
Equipped With
- BRIDGEPORT EZ PATH BPCT CNC CONTROL, 32 BIT PROCESSOR WITH
- TURN PARTS MANUALLY OR AUTOMATICALLY
- "TEACH" 1ST PART, RUN REMAINING PARTS AUTOMATICALLY
- 24 OFFSETS, GRAPHIC TOOL LIBRARY, TOOL PATH VIEWED ON-SCREEN
- THREADING, TURNING, DRILLING, GROOVING, FACING CYCLES & MORE
- DUAL ELECTRONIC HANDWHEELS
- 3.5" FLOPPY DISK DRIVE & RS 232 PORT

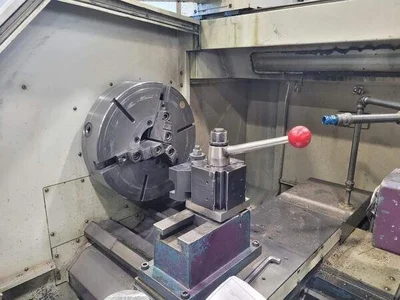

- DORIAN QUICK CHANGE TOOLPOST W/ HOLDER
- SPLASH GUARDING SINGLE SLIDING DOOR
- COOLANT SYSTEM WITH REMOVEABLE CHIP PAN
- 20 HORSE POWER SPINDLE MOTOR
- AC BRUSHLESS SERVO MOTORS & DRIVES
- MANUALS
