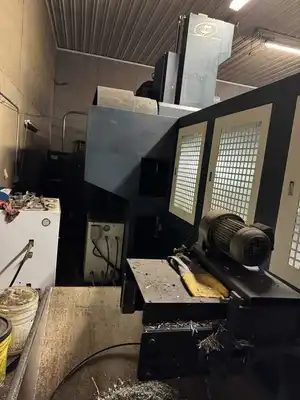

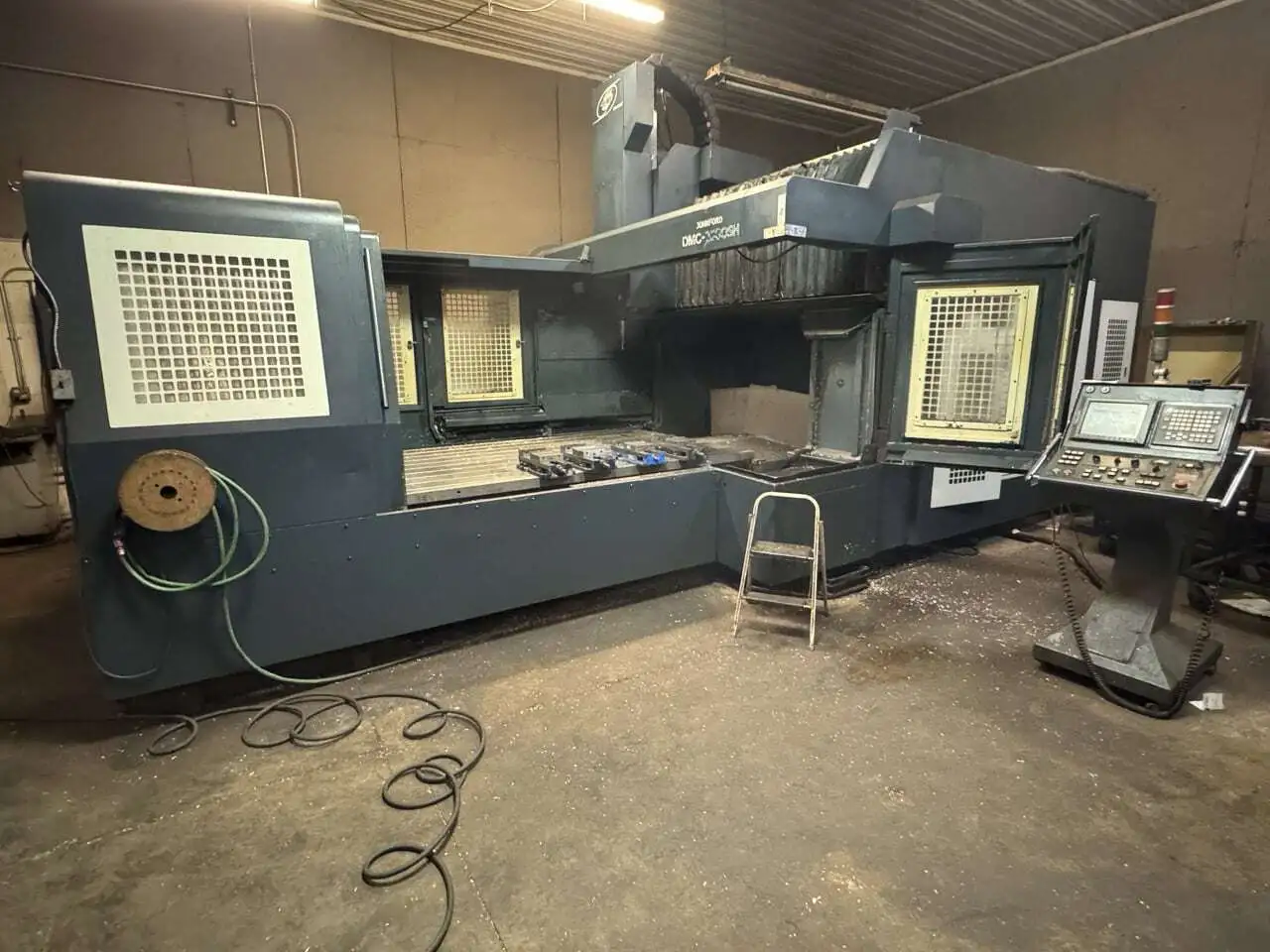

USED 2002 JOHNFORD DMC-2600SH

Ohio, United States
1,542Listings|424Followers
Overview
Gantry Machining Centers (incld. Bridge & Double Column)

Used Gantry Machining Center with a 102.4" X, 69.5" Y, and 31.5" Z axis travel. Features a 56 hp, 15,000 RPM spindle with HSK-100 taper, 40 ATC, through spindle coolant, chip conveyor, and spindle chiller.

Specs
X
102.4"
2,601 mm
Y
69.5"
1,765.3 mm
Z
31.5"
800.1 mm
Power
56 hp
41.8 kW
RPM
15,000 RPM
15,000 RPM
# ATC
40
40
Taper
HSK-100
HSK-100
Table-W
59"
1,498.6 mm
Table-L
106"
2,692.4 mm
Control
CNC (Fanuc)
CNC (Fanuc)
Equipped With

Through Spindle Coolant
Chip Conveyor
Spindle Chiller
