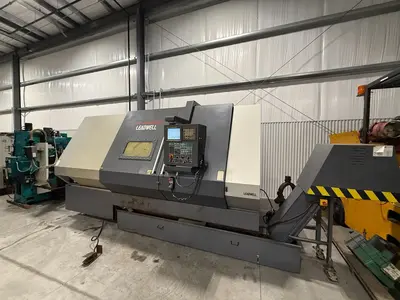

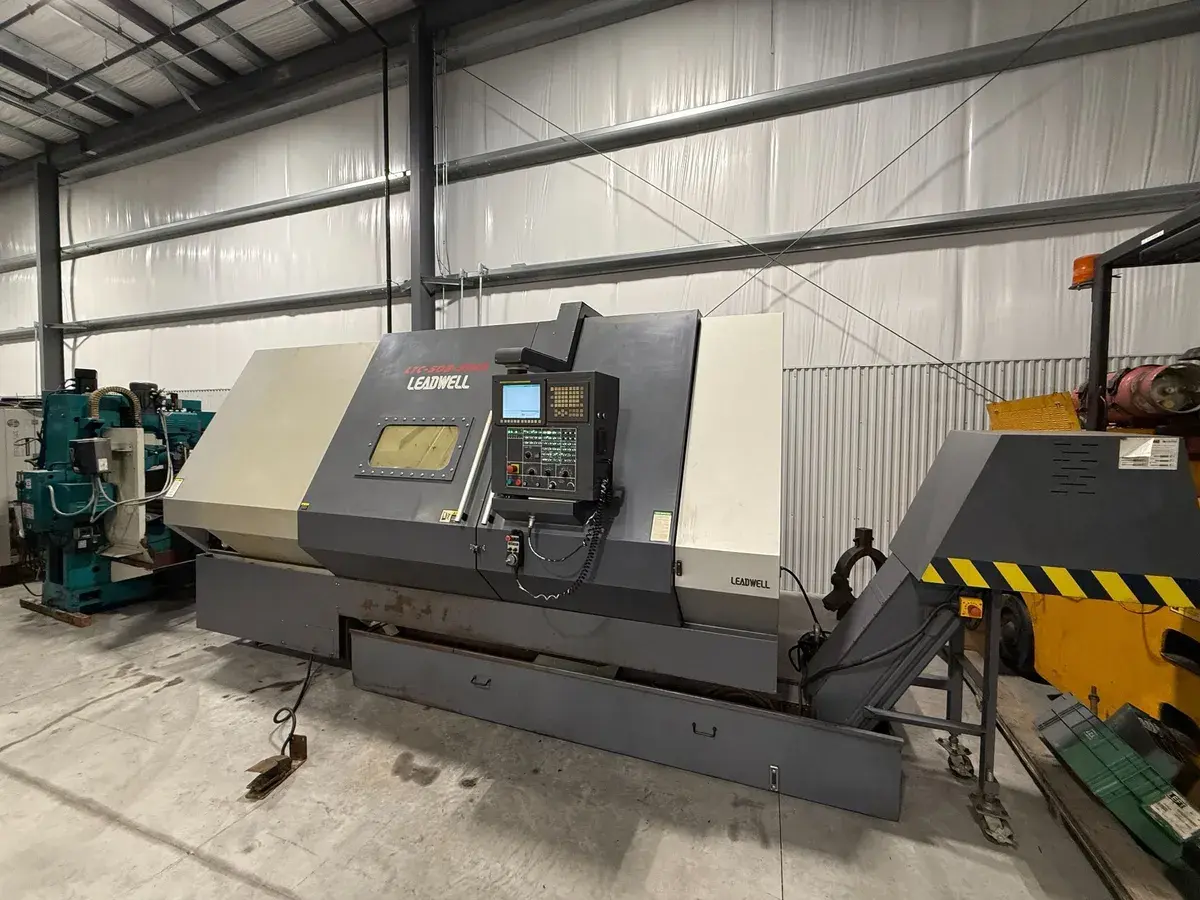

USED 2012 LEADWELL LTC-50B
Overview
Used CNC lathe. Features include FANUC OiTD control, 60 HP spindle motor, 1,500 RPM spindle, 15” 3-jaw chuck, and 8 tool stations. Equipped with chip conveyor, tool setter, and coolant system. Weight: 43,000 lbs.
Specs
SPECIFICATIONS:
CAPACITY
Max. Work Swing ....................................... 35"
Swing Over Cross Slide ................................ 27.55”
TRAVELS
X Axis ................................................ 17.9”
Z Axis ................................................ 40.2"
FEED RATES
X Axis Rapid ........................................... 590 IPM
Z Axis Rapid ........................................... 787 IPM
Jog Feed Rate .......................................... 50 IPM
NO TAILSTOCK WITH STAR STYLE TURRET
BALL SCREWS
X Axis Ball Screw......................................1.97” Dia. X .394 Pitch-Double Nutted
Z Axis Ball Screw ......................................2.48” Dia. X .472 Pitch-Double Nutted
DRIVE MOTORS
X Axis Motor ........................................... 12.8 HP Fanuc Alpha A/C Brushless*
Z Axis Motor ........................................... 28 HP Fanuc Alpha 40 A/C Brushless*
ACCURACY (Ball Bar Tested)
Positioning X/Y/Z/B...................................... +/-0.0002
Repeatability X/Y/Z/B ................................... +/-0.0001
SPINDLE (Option C, D)
Spindle Nose ............................................ A2-11 (A2-15, A2-20)
Chuck Diameter & bar capacity ........................... 15”/4.6”(20/6.25”, none)
Spindle Bore ............................................5.50” (7.25”, 10.25”)
Spindle Speed ........................................... 1,500 (1,500, 1,000)
Spindle Motor (Fanuc A/C Brushless) ....................... 2 Speed ZF 60.0 Hp*Peak
(50hp 30min ~ Alpha 30)

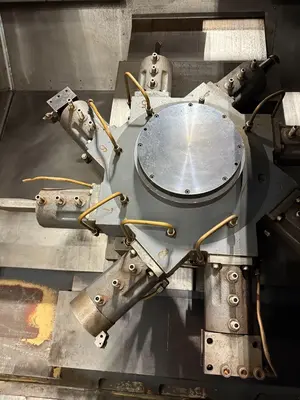

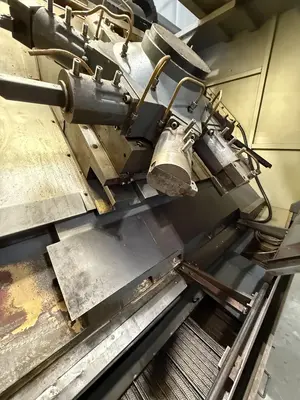

TURRET-STAR STYLE
Tool Stations ............................................. 8
COOLANT SYSTEM
Pump Motor Output ........................................ 1.3 HP
Pump Flow Rate ........................................... 7.1 gpm
Pump Pressure ............................................ 29.0 psi
Tank Capacity ............................................ 42 gal.
POWER REQUIREMENTS
220 Volts/3 Phase/60 Cycle
70 KVA (180 amps. @ 220 volts)
GENERAL
Machine Weight ........................................... 43,000 lbs
Equipped With
Chip Conveyor and Bucket
FANUC OiTD CONTROL STANDARD FEATURES:
64 Bit Micro Processor
10.4" Color LCD Screen
Inch/Metric Input
64Tool Offsets
Can Cycle (G70 - G76)
Run Hour & Parts Counter
512 K of Program Memory
Tool Nose Radius Comp.
Background Editing
Tool Setter Function
Polar Coordinate Interpolation (G12:1)
PMCCIA Memory Card Slot
Embedded Ethernet Connection
400 Part Programs
Automatic Tool Compensation
Constant Surface Speed
RS-232 Serial Port Interface
4 + 1 Axis Control
Tool & Wear Offsets
Manual Pulse Generator
Backlash Compensation
X Axis Radius or Diameter
Chamfering/Corner R
Cylindrical Interpolation (G07.1)
G54 Work Offset System
60 HP Fanuc High Torque Alpha 30 A/C Spindle Motor *Peak Rating
1,500 RPM Spindle, 2-Speed ZF Gear Box

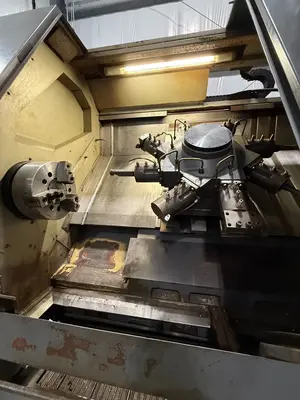

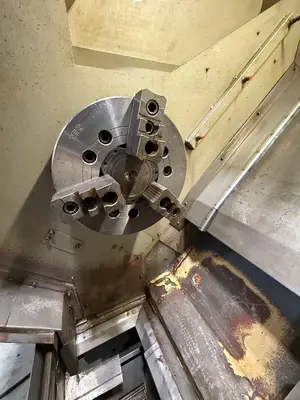

15” 3-Jaw Power Chuck with 4.6” Bar Capacity
(1) Set of Hard Jaws & (1) Set of Soft Jaws

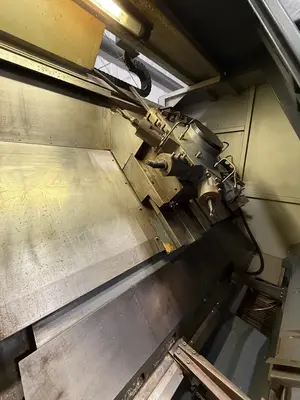

8 Tool Station Bi-directional Star Type Turret
Flood Coolant Unit
Heat Exchanger
Highly Rigid 45 deg. Slant Bed Construction
Work Light
