NEW 2026 PRIMAPRESS 176Ton x 122 w/ Delem 66T
Overview
2026 PRIMAPRESS Model 176Ton x 122" w/ Delem 66T 6 axis X, R, Z1, Z2, Y1, Y2 CNC contol
A Primapress 176Ton × 122" (often listed in metric as 160 Ton × 3100mm) is a heavy-duty CNC hydraulic press brake. It is designed for bending sheets up to 10.1 feet long and is widely used for precision steel door manufacturing, metal framing, and custom sheet fabrication.
Nanjing Prima CNC Machinery Co., Ltd., located in the center of China’s machine tool industry, MaanShan BoWang District Sanyang Industrial Park. we have more than 30 years manufacturing history with 540 technicians and 60000 sqm factory building sizes. Now we have 3 factories, just nearby each others in the same city.
Our company specializes in sheet metal machine by Primapress brand like: press machines, power press machine, automatic production line, CNC bending machine, fiber laser cutting machine machines, all kinds of hydraulic machine, power press macihne, and other metal forming forging equipment.
Specs
Specifications
Nominal Force (Tonnage): 176 US Tons (1600 kN)
Bending Length: 126 inches (3200 mm)
Distance Between Housings: ≈ 102.4 inches (2600 mm)
Stroke Length (Slide Stroke): ≈ 7.8 inches (200 mm)
Throat Depth: ≈ 15.7 inches (400 mm)
Motor Power: ≈ 15 HP (11 kW)
Speed (Approach / Bending / Return): Variable (Approach: ≈ 160 mm/sec | Return: ≈ 120 mm/sec)
Machine Dimensions: ≈ 130" × 61" × 101" (3300mm × 1550mm × 2580mm)
Approximate Weight: ≈ 22,000 to 26,000 lbs (10,000 to 12,000 kg)

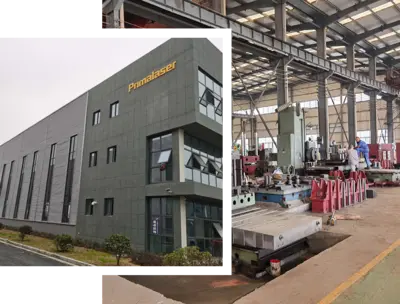

1.Factory covers an area of 80,000 square meters.
2.300 staff, included 60 engineers.
3.200 sets/ month.
4.Main product: cnc fiber laser cutting machine, press brake and shearing machine, more details: www.prima-press.com.
5.Lead time: 5 days – 60days, depends on machine model.
6.Our factory environment is for international standard, safety compliance, standard production.
7.Factory has more than 80 sets of CNC equipment such as gantry milling machine – drilling machine – planing milling machine.
8.Our machine with EU standard, has CE, ISO, SGS certification.
Equipped With
Standard Equipment:
1. Mono block, welded steel frame rigid to deflection and high tensile with ST44 A1 material.
2. 6 axes (Y1, Y2, X, R, Z1, Z2)
3. Throat depth 410 mm.

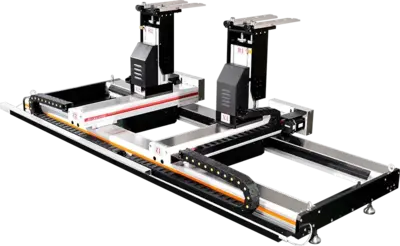

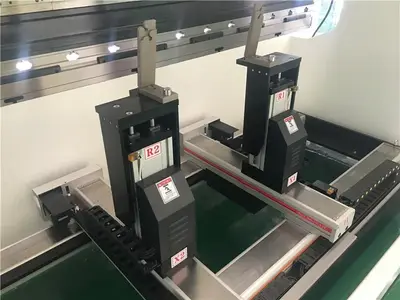

4. Back gauge system with X, R, Z1, Z2 axis driven by AC servo with colored graphics.
5. HOERBIGER servo hydraulic system.
6. CNC controlled motorized anti-deflection system.

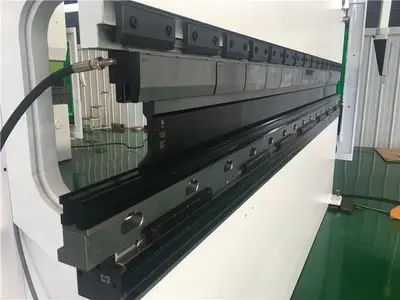

7. Hardened and ground standard sectioned top and 4V-Die bottom tools (835 mm section).
8. Easy to clamp tool holding system with upper and lower tools.
9. Ergonomic user friendly, pendant control panel.
10. Back light safety guards (category-4)
11. Front side covers with safety switches.
12. Synchronization of Y1 Y2 axis provided by linear encoders with 0,01 mm tolerances.
13. Foot pedal suitable to CE regulation.
14. Sliding front support arms with T slot and mm/inch rulers.
15. Standard graphic controllers can be selected from: DelemDA66T 3D colour graphical touch screen controller.

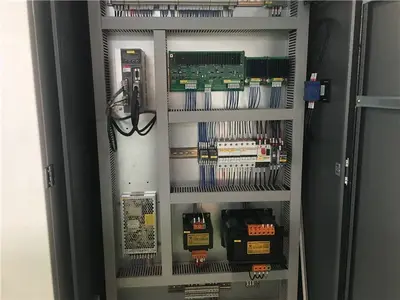

16. Electrical panel with cooling system designed to meet CE standards & composed of automation and electrical equipment with SIEMENS branding.
Delem DA66T CNC Control system:
1. 2D graphical touch screen programming mode.
2. 3D visualisation in simulation and production.
3. 17″ high resolution colour TFT.
4. Windows applications compatible.
5. Delem Modusys compatibility. (module scalability and adaptivity)
6. USB, peripheral interfacing.
7. Open system architecture.
8. User specific application support within the controllers multitasking environment.
9. Sensor bending & correction interface.
