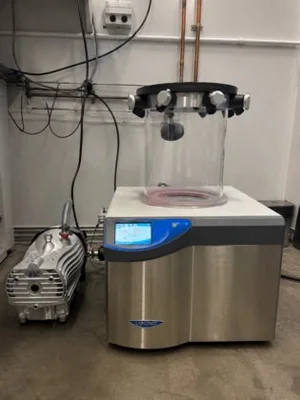

USED LABCONCO FREEZONE

The Labconco FreeZone® 4.5 Liter Lyophilizer is a compact benchtop freeze dryer designed for lyophilizing light to moderate sample loads in research, pharmaceutical, biotechnology, and academic laboratories. Featuring a 4.5-liter ice-holding capacity, the system is available with collector temperatures of -50°C, -84°C, or -105°C, allowing users to process a broad range of aqueous and organic solvent-containing samples.

The system incorporates Lyo-Works™ OS with a 5-inch full-color touchscreen, providing real-time monitoring of collector temperature and vacuum level, programmable operation, data logging, Ethernet and USB connectivity, and optional End-Zone™ endpoint detection. The FreeZone 4.5L can be configured for flask drying, bulk drying, or stoppering tray drying using optional accessories.

---------------------------------------------------------------
Key Highlights

- 4.5 L ice-holding capacity
- Available collector temperatures of -50°C, -84°C, or -105°C
- Lyo-Works™ OS touchscreen interface
- 5-inch color capacitive display
- Real-time temperature and vacuum monitoring
- Automatic hot-gas defrost
- USB and Ethernet connectivity
- Optional PTFE-coated collector for corrosive samples
- Optional End-Zone™ endpoint detection
- Compact benchtop footprint
- Suitable for flask, bulk, and tray drying applications
---------------------------------------------------------------

Applications / Uses

- Biological sample preservation
- Protein and enzyme lyophilization
- DNA and RNA sample drying
- Pharmaceutical formulation development
- Tissue sample preservation
- Microbiology research
- Food and agricultural research
- Environmental laboratories
- Chemical sample drying
- Academic and biotechnology research
---------------------------------------------------------------

Typical Specifications (Summary)

- System Type: Benchtop Lyophilizer / Freeze Dryer
- Ice Holding Capacity: 4.5 Liters
- Collector Temperature Options: -50°C, -84°C, or -105°C
- Display: 5-inch color touchscreen (Lyo-Works™ OS)
- Vacuum Monitoring: Digital vacuum display
- Defrost: Automatic hot-gas defrost
- Connectivity: USB and Ethernet
- Collector: Stainless steel or optional PTFE-coated stainless steel
- Required Vacuum Pump: Minimum 98 L/min displacement (not included)
- Dimensions: Approximately 41.9 × 56.8 × 48 cm
- Weight: Approximately 63 kg (139 lb)
- Power Requirements: 115 V or 230 V, 50/60 Hz (model dependent)
---------------------------------------------------------------

Typical Configuration Includes

- Labconco FreeZone® 4.5L Freeze Dryer
- Stainless steel collector
- Lyo-Works™ OS touchscreen controller
- Drain hose
- Power cord
- User documentation
