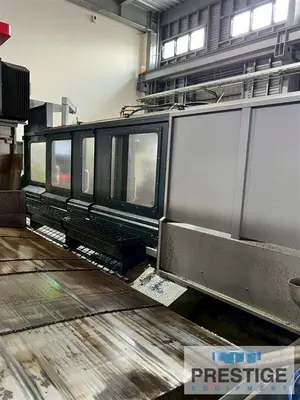

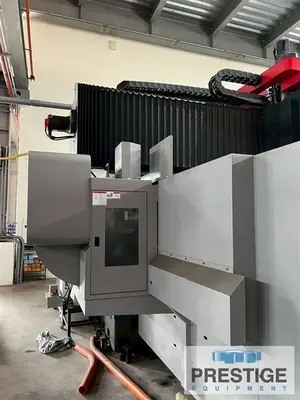

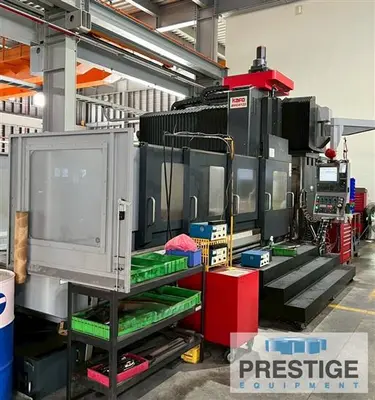

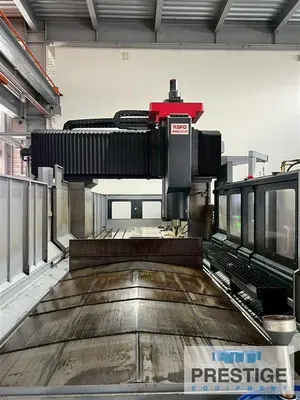

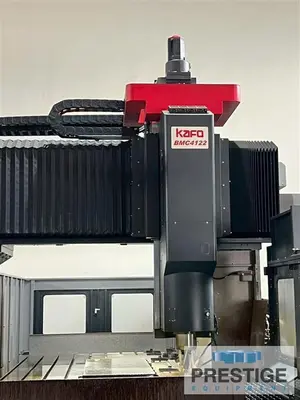

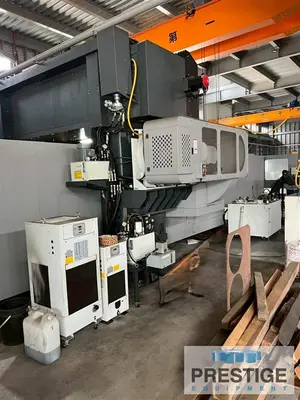

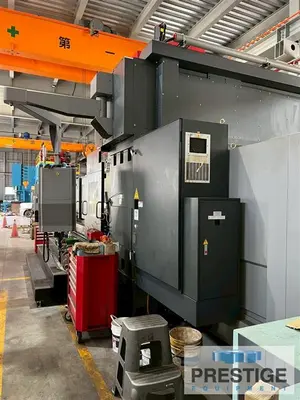

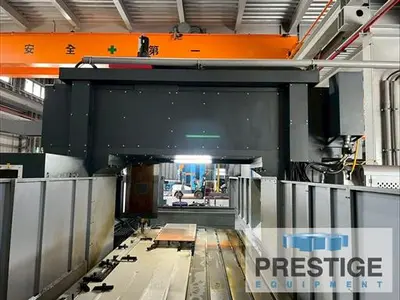

USED 2024 KAFO BMC-4122
Specs
SPECIFICATIONS:

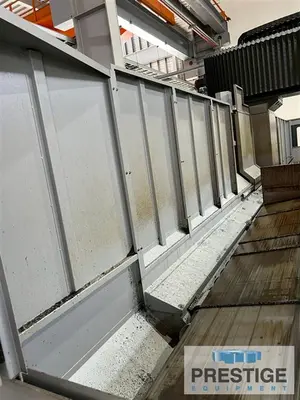

Table Size: 157.48" x 82.67"
Table Capacity: 37,400 Lbs.
Distance Between Columns: 90.55"
X-Axis Travel (Table Longitudinal): 161.41"
Y-Axis Travel (Head): 86.61"

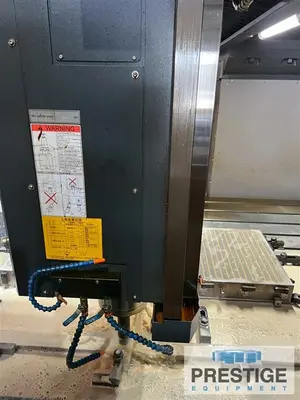

Z-Axis Travel (Spindle): 35.43"
Distance From Spindle Nose to Table: 7.87"-43.3"
Spindle Speeds (Gear Driven)........... 6000 RPM: 6000 RPM
Spindle Taper: BT #50
Spindle Drive Motor: 34.6 HP
Rapid Traverse (X,Z): 590.55 IPM
Rapid Traverse (Y): 787.40 IPM
Equipped With:

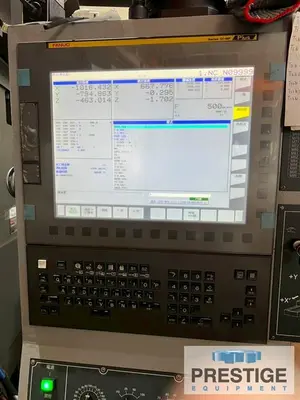

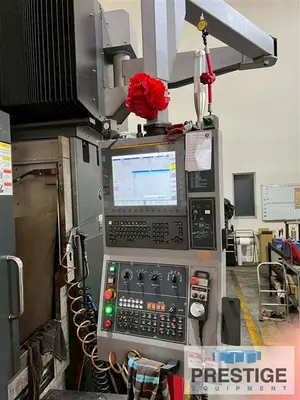

Fanuc OiMF Plus CNC Control with 15" LCD
30-Position Automatic Tool Changer

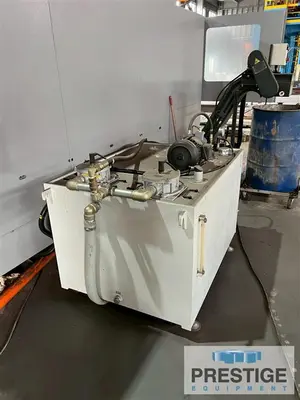

Coolant Thru Spindle (20 Bar)
Air Thru Spindle
Spindle Oil Cooler
3-Axis Cooling System
Heat Exchanger
Oil Skimmer
Chip Conveyor
NOTE:
Inspect In Plant Under Power
Features:
Fanuc OiMF Plus CNC Control with 15" LCD
30-Position Automatic Tool Changer
Coolant Thru Spindle (20 Bar)
Air Thru Spindle
Spindle Oil Cooler
Chip Conveyor
