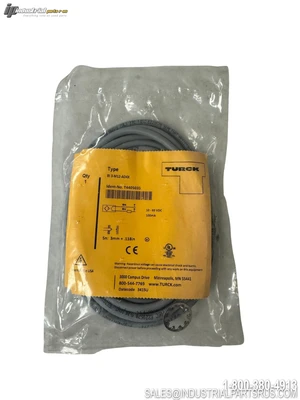

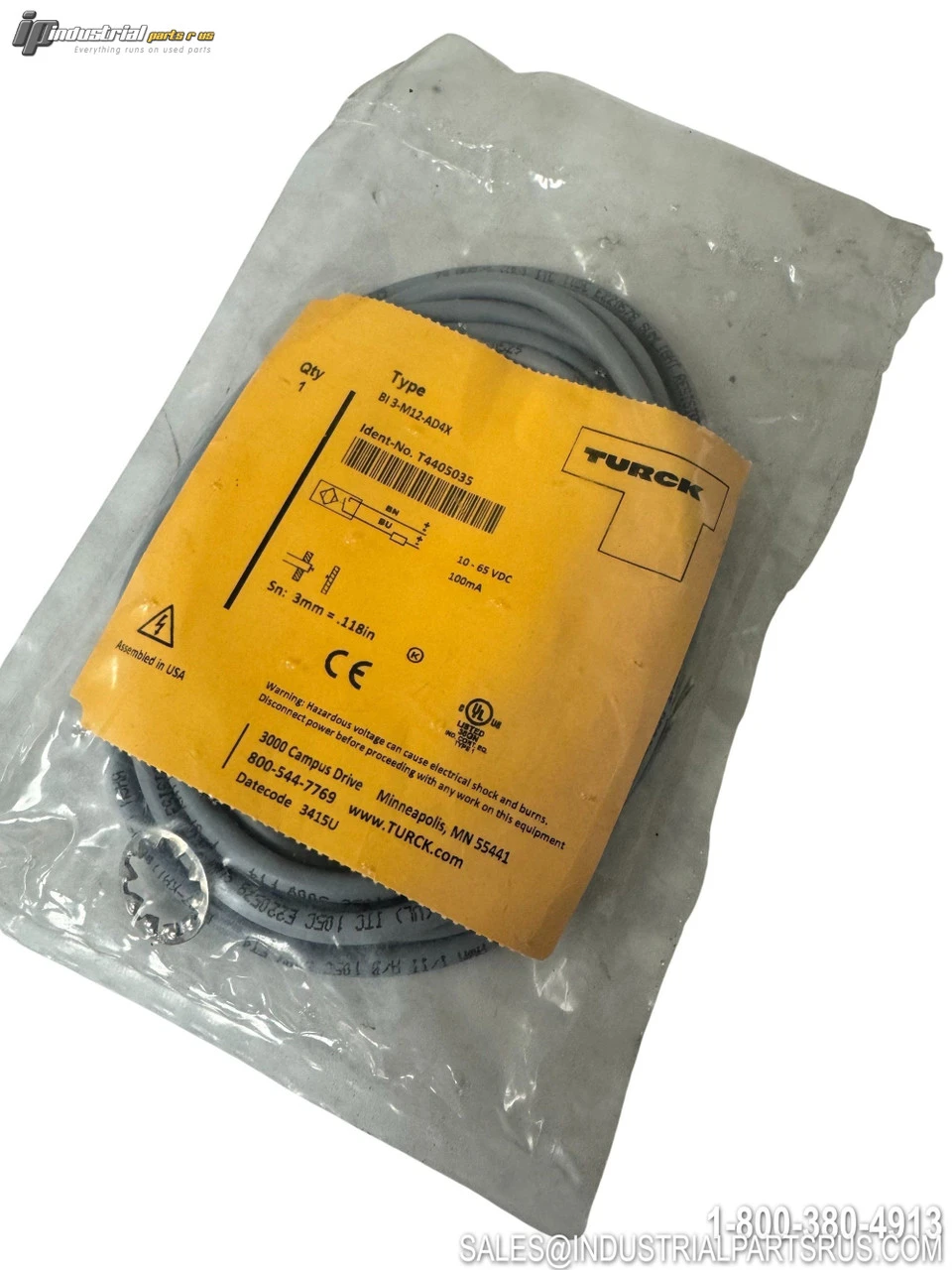

NEW TURCK BI 3-M12-AD4X

The Turck BI 3-M12-AD4X is an embeddable inductive proximity sensor featuring an M12 × 1 partially threaded barrel housing in chrome-plated brass with a PA12-GF30 glass-fiber-reinforced polyamide sensing face. It operates as a 2-wire DC device over a wide supply voltage range of 10–65 VDC, providing a normally open (NO) digital output with a 3mm rated switching distance. The sensor includes polarity protection, overload protection, short-circuit protection, and a yellow LED switching state indicator, making it suitable for a broad range of factory automation and machine control applications.
Specification
Value
Brand
Turck
Model / Part Number
BI 3-M12-AD4X
Turck ID Number
4405035
Product Type
Inductive Proximity Sensor
Sensing Range (Rated)
3 mm
Mounting / Design
Flush / Embeddable
Body Shape
Cylindrical, M12 partially threaded barrel
Thread Size
M12 × 1
Sensing Face Diameter
12 mm (Ø 12 mm active area)
Housing Material
Chrome-plated brass (CuZn)
Sensing Face Material
PA12-GF30 (glass fiber-reinforced polyamide)
Supply Voltage (DC)
10–65 VDC (12V / 24V / 48V nominal)
Output Type
DC 2-wire (transistor output)
Output Configuration
NO (Normally Open)
Max Output Current
100 mA
Switching Frequency
1 kHz (1000 Hz) max
Connection Type
Pre-wired cable, bare end flying leads
Cable Length
2 m (6.5 ft)
Indicator
Yellow LED
Protection Class (IP Rating)
IP67
Protection Functions
Short-circuit (pulsed), Overload, Reverse polarity
Operating Temperature
-25°C to +70°C
Shielded (Flush Mount)
Yes (shielded)
RoHS Compliant
Yes
Product Series / Family
BI…-M12 Series
We warranty all items for 30 days from date of purchase.
