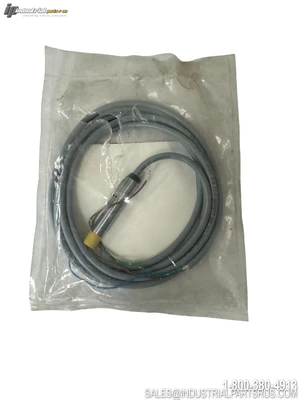

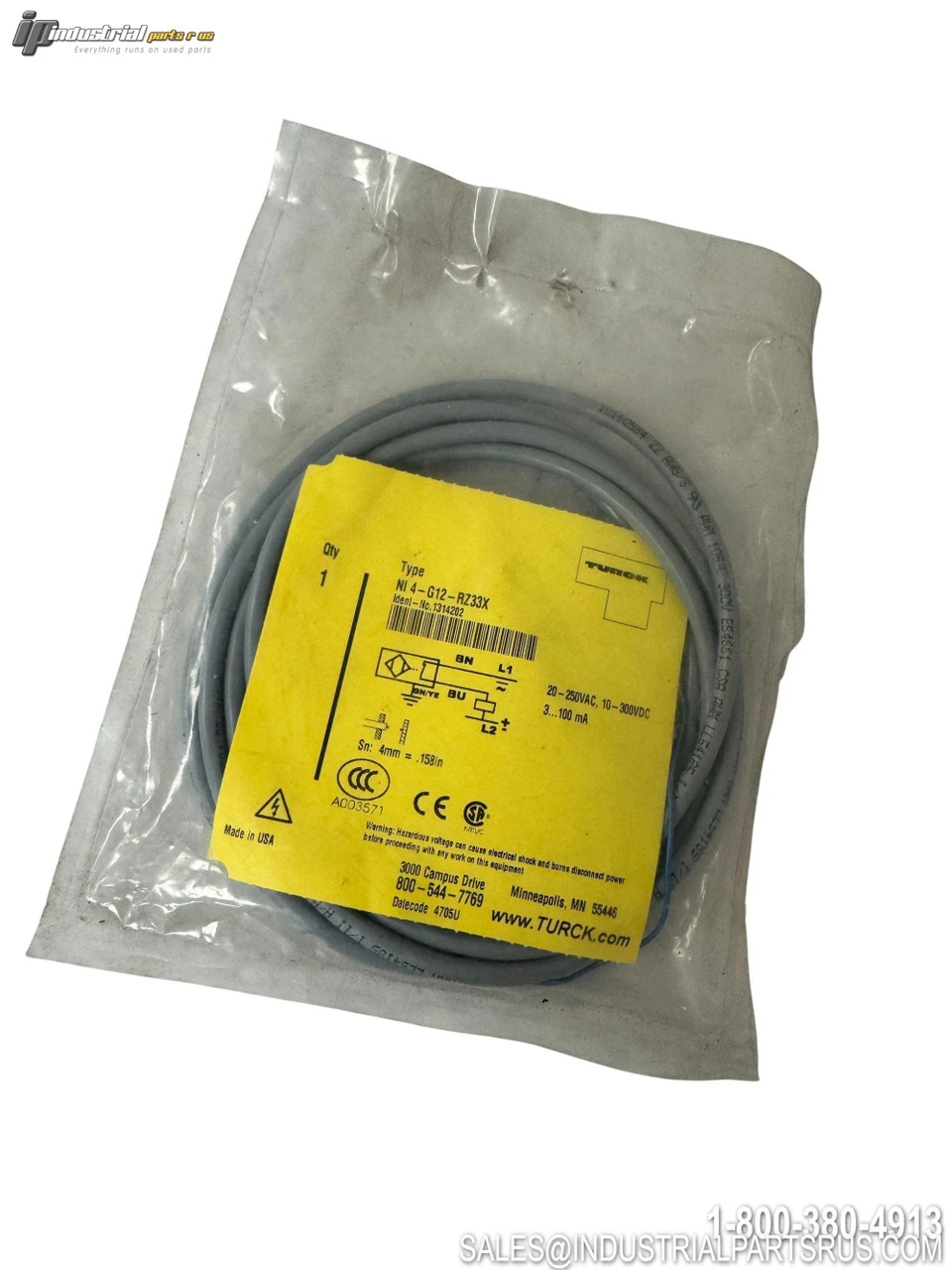

NEW TURCK NI 4-G12-RZ33X

The Turck NI 4-G12-RZ33X is an inductive proximity sensor featuring a fully-threaded M12 × 1 cylindrical barrel in chrome-plated brass. It provides a 4 mm nominal sensing range with a universal AC/DC 2-wire, normally open (NO) output compatible with both AC (20–250 VAC) and DC (10–300 VDC) supply voltages. The sensor includes a potted-in cable with bare-end flying leads and an LED indicator that illuminates when the output is energized.
Specification
Value
Brand
Turck
Model / Part Number
NI 4-G12-RZ33X
Turck Catalog Number
1314202
Product Series
NI 4 Series
Sensor Type
Inductive Proximity Sensor
Sensing Range (Nominal)
4 mm
Mounting Style
Non-Flush (Unshielded)
Body Style / Shape
M12 Fully Threaded Cylindrical Barrel
Thread Size
M12 × 1
Housing Material
Chrome-Plated Brass
Sensing Face Material
PA12-GF30 (Glass Fiber Reinforced Polyamide)
Output Type
AC/DC 2-Wire, Normally Open (NO)
Supply Voltage (DC)
10–300 VDC
Supply Voltage (AC)
20–250 VAC
Max Load Current
200 mA
Max Leakage Current
1.7 mA
Voltage Drop
6.0 VDC at 200 mA
Switching Frequency (Max)
20 Hz
Network Frequency
50–60 Hz
Connection Type
Potted-In Cable, Bare-End Flying Leads (2 m / 6.5 ft)
LED Indicator
Yes — Output Energized
IP Rating
IP67
NEMA Rating
NEMA 1, 3, 4, 6, 13
Operating Temperature
-25°C to +70°C (-13°F to +158°F)
RoHS Compliant
Yes
We warranty all items for 30 days from date of purchase.
