USED FESTO LFR-M2-G3/8-C1

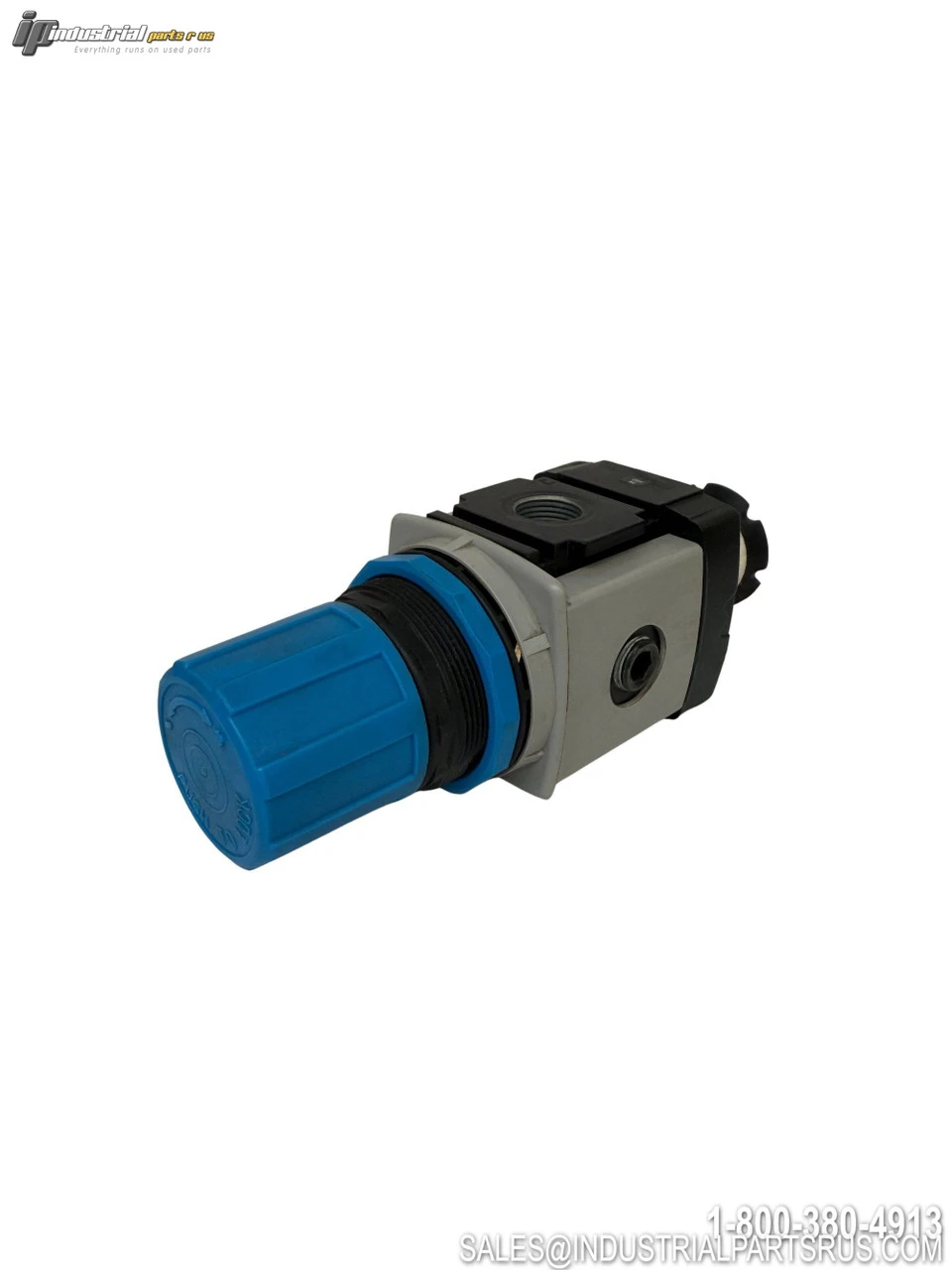

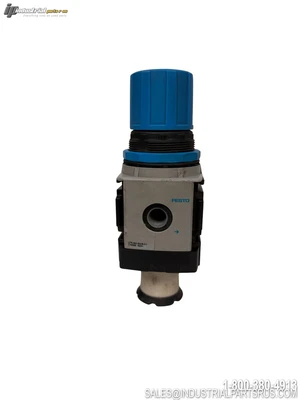

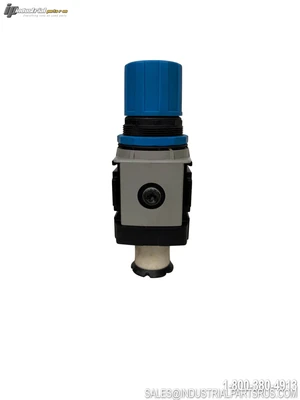

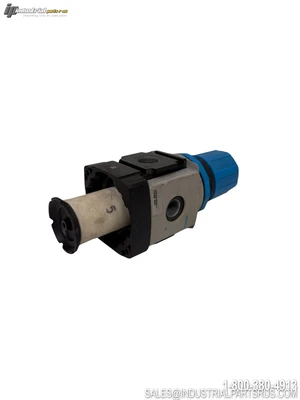

The Festo LFR-M2-G3/8-C1 is a Midi-size combination filter regulator from Festo's M-series air preparation product line. It integrates particle filtration (40 µm) and pressure regulation into a single compact unit with G3/8 BSPP pneumatic connections, a rotary knob with lock, and an integrated pressure gauge. This unit is designed for use in compressed air systems requiring clean, pressure-regulated supply air and is suitable for standard industrial automation environments.
Specification
Value
Brand
Festo
Model / Part Number
LFR-M2-G3/8-C1
Product Type
Filter Regulator (FRL)
Series
M-Series (Metal)
Size
Size 2 (Midi)
Pneumatic Connection (Port 1 & 2)
G3/8 (BSPP Female Thread)
Inlet Pressure (Max)
0 – 12 bar (0 – 174 psi)
Pressure Control Range
0 – 10 bar (0 – 145 psi)
Grade of Filtration
40 µm
Standard Nominal Flow Rate
3,800 l/min
Max. Pressure Hysteresis
0.5 bar
Condensate Drain
Manual
Pressure Gauge
Included (with pressure gauge)
Actuator Lock
Rotary knob with lock
Max. Condensate Volume
52.75 cm³
Operating Medium
Compressed air
Medium Temperature
-10 °C to +60 °C
Ambient Temperature
-10 °C to +60 °C
Assembly / Mounting Position
Vertical ±5°
Housing Material
Zinc die-cast / Wrought aluminium alloy
Bowl Material
Polycarbonate (PC)
Bowl Guard
Plastic guard
Product Weight
1,900 g (approx.)
Standards Compliance
ISO 1179-1, ISO 228-1
We warranty all items for 30 days from date of purchase.
