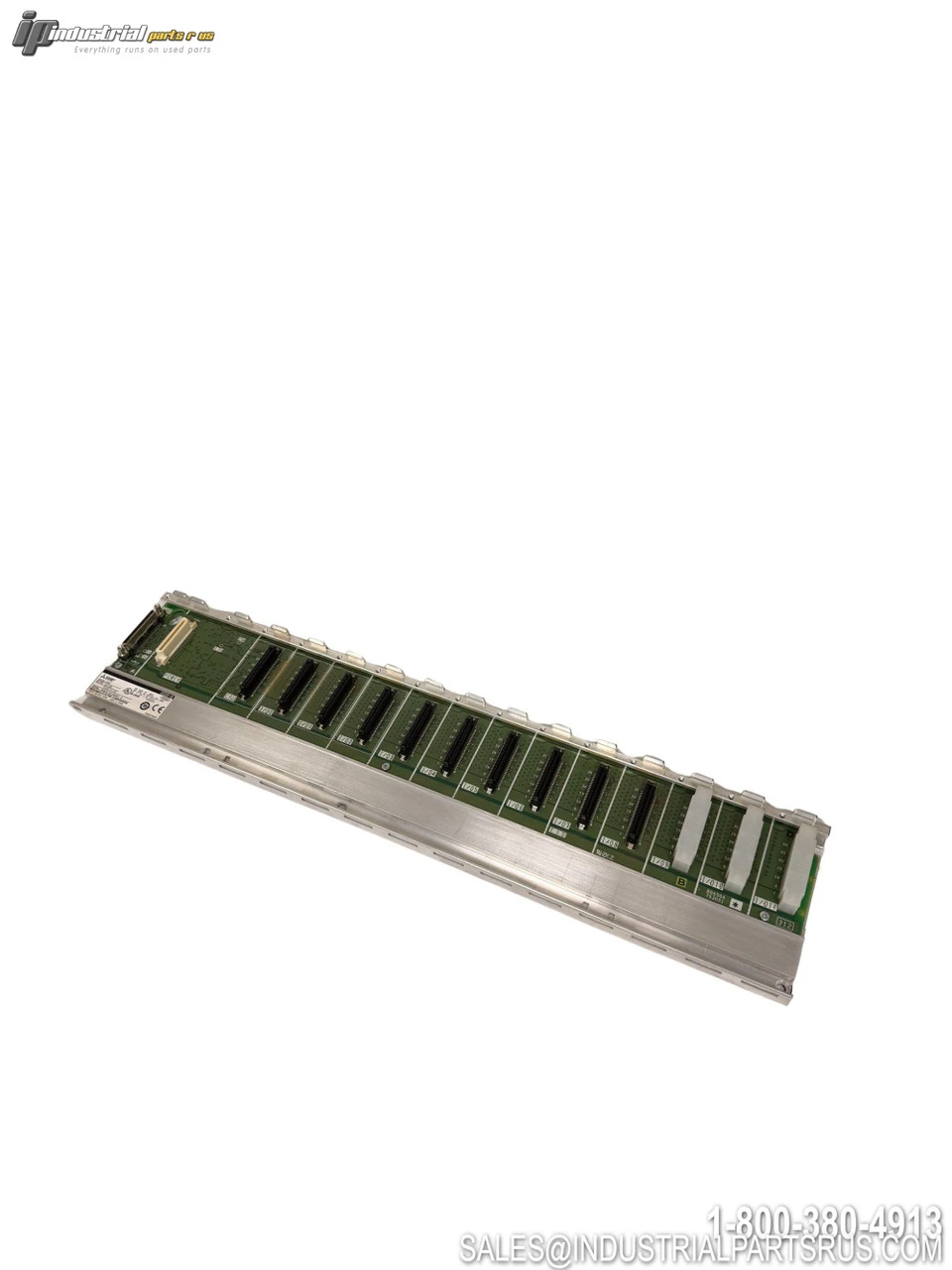

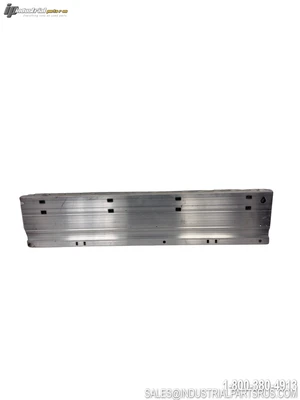

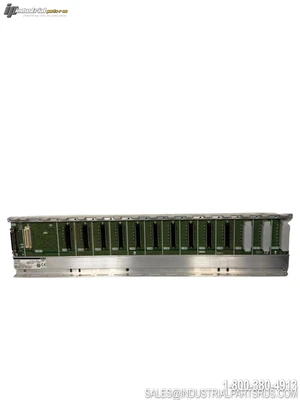

USED MITSUBISHI Q312B

The Mitsubishi Electric Q312B is a 12-slot main base unit (rack/backplane) designed for the MELSEC-Q Series modular programmable logic controller (PLC) platform. It provides the structural and electrical backbone for mounting a power supply module, CPU module, and up to 10 I/O or intelligent function modules. The Q312B is compatible with the full range of MELSEC-Q Series modules, including Q173/Q172 motion controllers, and supports panel-mount installation in industrial control panels. DIN rail mounting is available with an optional adapter.
Specification
Value
Brand
Mitsubishi Electric
Model / Part Number
Q312B
Series
MELSEC-Q
Type
Main Base Unit (Normal Type)
Number of Slots
12 (1 Power Supply + 1 CPU + 10 I/O or Special Function)
Slots for Power Supply
1
Internal Power Bus Voltage
5 VDC
Internal Bus Current Draw
0.13 A
Width (W)
439 mm (17.28 in)
Height (H)
98 mm (3.86 in)
Depth (D)
44.1 mm (1.74 in)
Weight
0.45 kg (approx. 0.99 lb)
Operating Temperature
0°C to 55°C
Mounting Type
Panel Mount (DIN rail mounting requires optional adapter)
Compatible Motion Controllers
Q173, Q172
Compatible CPU Types
Q Series CPU modules (except Q00JCPU and Q00UJCPU)
Compatible Extension Cables
QC06B, QC12B, QC30B, QC50B, QC100B
Certifications
CE, UL, cUL, UKCA, EAC, RoHS
Platform / Family
MELSEC System Q
Sales Start Date
May 18, 2000
We warranty all items for 30 days from date of purchase.
