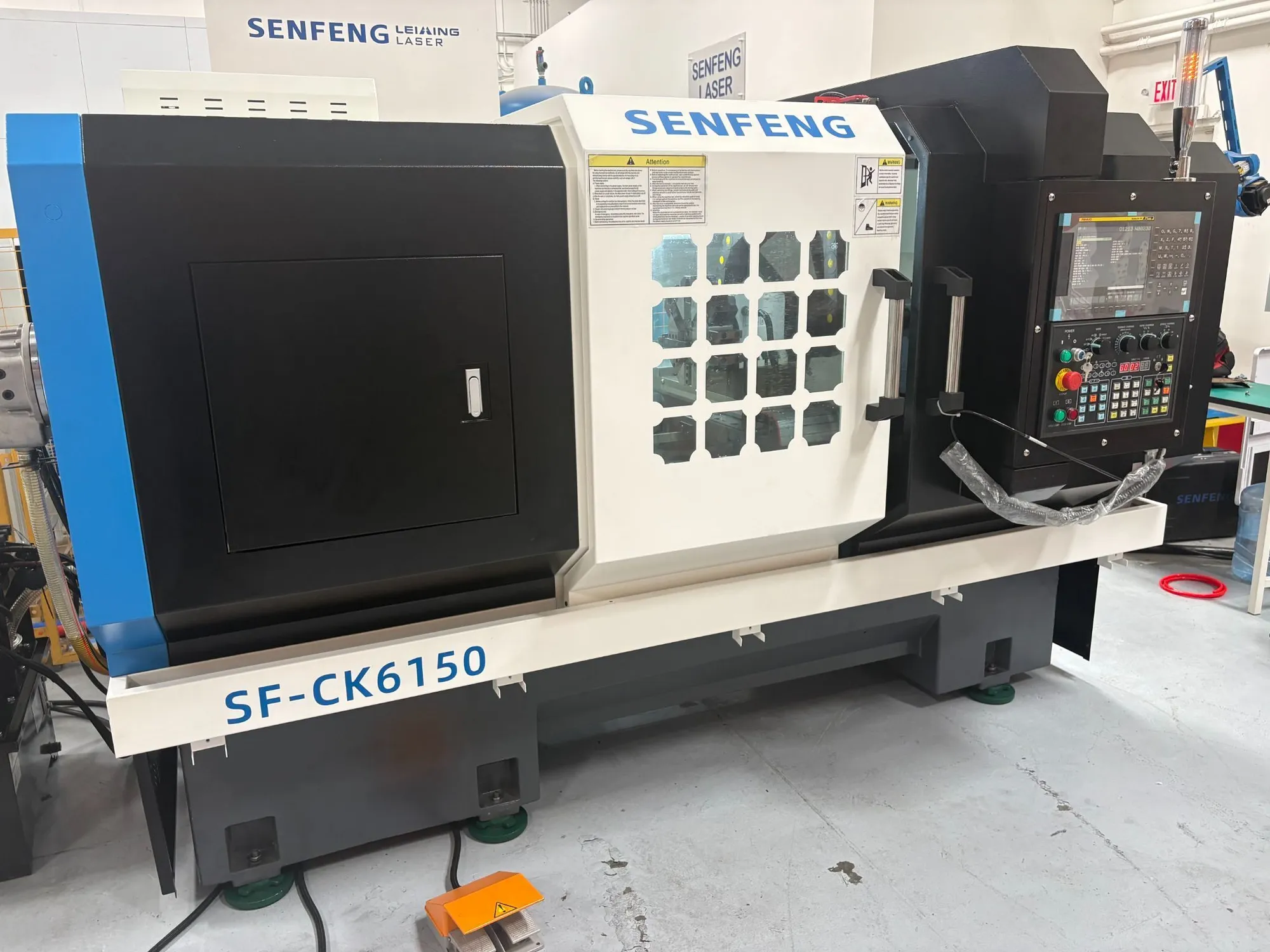

NEW 2025 SENFENG SF6150

Ⅰ. Main Technical Parameter

Item Parameter Unit SF-CK6150
Processing
Range
Max. Rotary Diameter on Saddle
Slider mm Φ500
Max. Turning Diameter on Slider Φ280
Maximum Processing Length mm 1000/1500/2000
Maximum Machining Diameter mm Φ500

Spindle

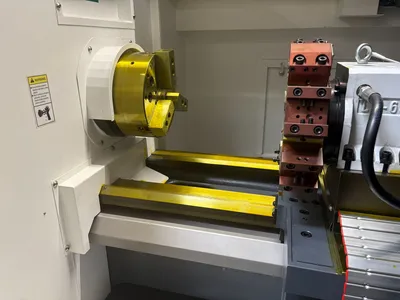

Chucks 250 Three-Jaw Hydraulic
Chucks
Spindle Type A2-8
Hole Diameter mm Φ82
Number Of Spindle Speed CVT
Spindle Speed Range r/min 1600
Tool
Holder

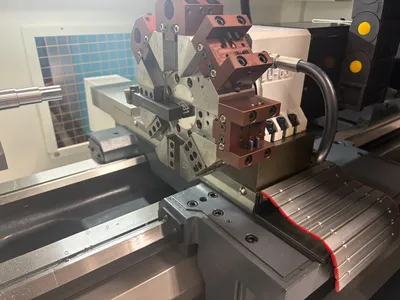

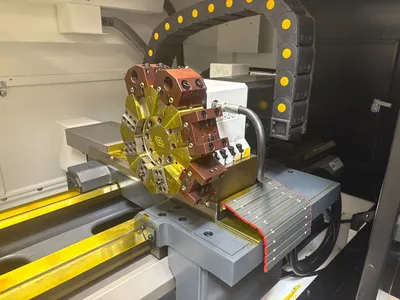

Tool Holder Type Electric Vertical
Workstation 4
Tool Specifications mm 25
Tailstock
Sleeve Diameter/Travel mm Φ75
Sleeve Bore Taper MT5
Tailstock Moving Form Manual Mode
Sleeve Moving Form Manual Mode

Motor
Spindle Motor Power Kw 7.5
X/Z Motor Torque NM 5/7.7
Cooling Pump Motor Power W 90

Others
Spindle Box Length mm 670
Tailstock Length mm 400
Power Capacity KVA 10
Saddle Layout Form Flat Bed
Guideway Form Box Way（HRC55)
Machine Weight Approx. kg 2600/3000/3500
Machine Size: L×W×H mm 2650/3150/3600*1550*1750

Ⅱ. Machine Tool Execution Standard
1. GB/T16462-1996 Numerically controlled turning machines Testing of the accuracy
2. JB/TB4368.3-96 Digital control horizontal lathe Technical conditions
3. GB5226.1-2002 Safety of machinery - Electrical equipment of machines - Part 1: General
requirements
Test Items Factory Standards
Positioning Accuracy X Axis 0.01
Z Axis 0.015
Repeat Positioning
Accuracy
X Axis 0.008
Z Axis 0.012
Positive And Negative
Values
X Axis 0.008
Z Axis 0.008
Ⅲ.Main Configurations

Item Model

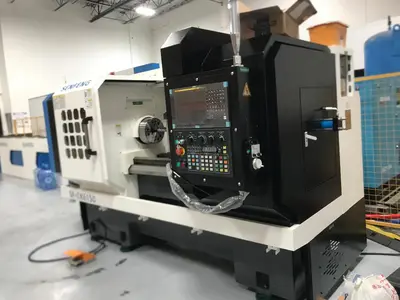

CNC System GSK980TB3
Main Motor 7.5KW
X-Axis Ball Screws φ25*06
Z-Axis Ball Screws Φ40*08
Chucks 250 Three-Jaw Hydraulic Chucks
Tool Holder 4 Station Motorized

Ⅳ. Machine Accessory Part
No. Item Quantity Note
1 Chuck Wrench 1 In Accessory Box
2 Tool Holder Wrench 1 In Accessory Box
3 Pad Iron 6 In Accessory Box

Ⅴ. Machine Accessory File
1 Instruction Manual
Mechanical Parts
(Including Certificate of
Conformity, Packing List)
2 Instruction Manual Electrical Component
3 System Operation
Manual

4 Drive Manuals
5 Inverter Manuals
