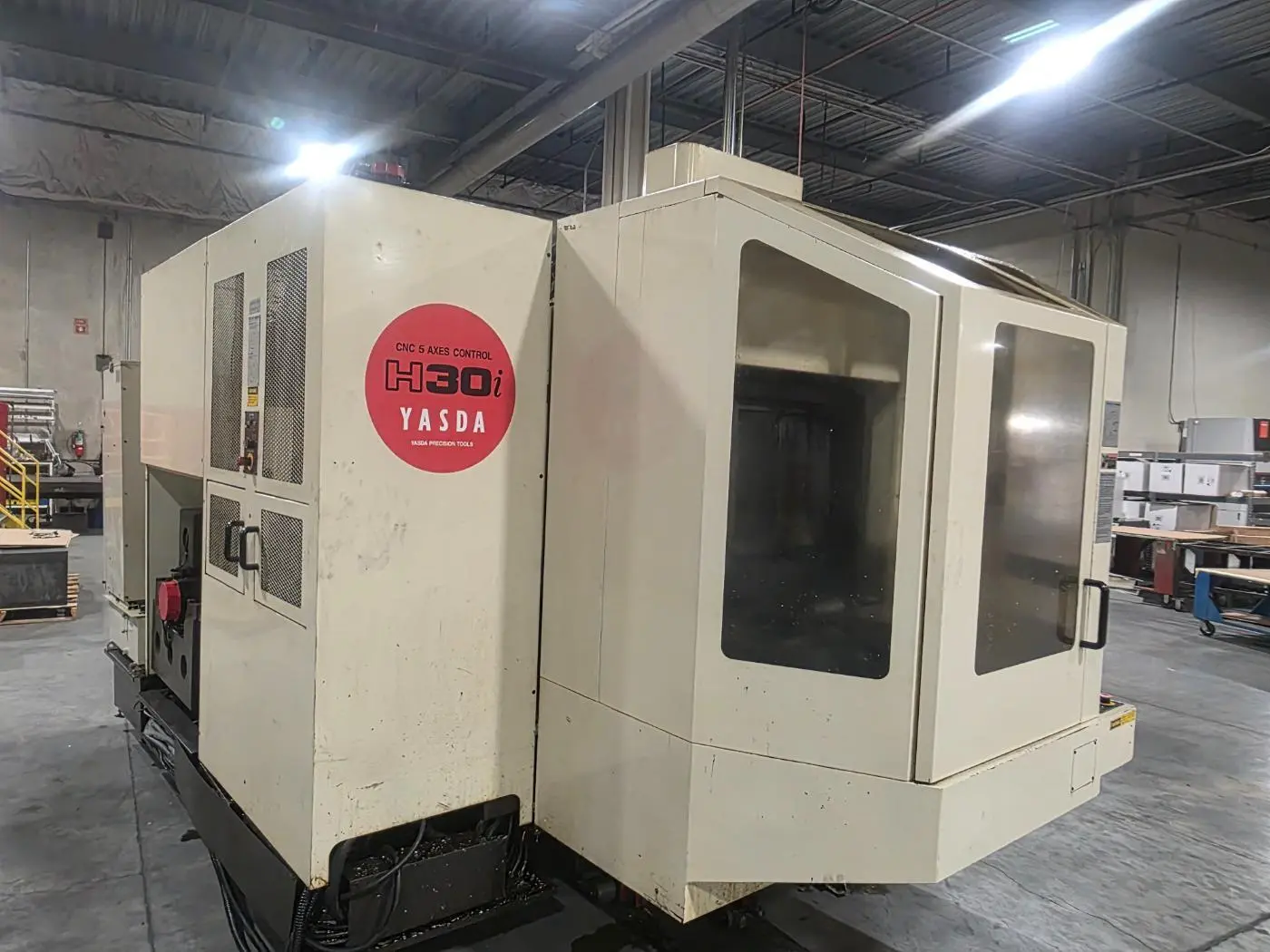

USED 1999 YASDA H30i

CNC Horizontal Machining Center
5-Axis Simultaneous Control
Manufacturer: Yasda Precision Tools K.K.
Model: H30i
Date of Manufacture: 1999 (August)
Electrics: 230 Volt, 3 Phase, 60 Cycle
Main Motor: 30HP

Features and Specifications:
...Fanuc Series 16i-M CNC Control
...Pallet Size (tombstone): 12" x 12" (305 mm x 305 mm)
...Table Load Capacity: 177 lbs.
...Travels:
......X-Axis: 25.6”
......Y-Axis: 22.1”
......Z-Axis: 22.1”
......5-Axis w/ 0.001 mm Optical Scale Feedback
...Spindle Specs:
......Speed: 12,000 RPM
......Taper: BT40 / CT40
...ATC: 60 Slots
...Automatic Pallet Changer: 2 Positions
...Feeds:
......Standard: Controlled by Fanuc iHMI Interface
......Rapid (X,Y,Z): 1,575 IPM
...Support for High-Pressure TSC (confirmation pending)
...Multi-Part Coolant System
...132-200 Gallon Coolant Tank
...Daikin Oil Cooling Unit
...Scrap Chip Conveyor
...Manuals/Documentation

Main CNC Dimensions (approx.): 170" x 104" x 119"
Scrap Conveyor (approx.): 125" x 45"
Equipment Weight (approx.): 24,300 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This equipment was decommissioned and disconnected during mid-June 2026. Was making production parts up until day before. The present owner wants to sell because need space in shop for new equipment. Part of standard process improvement and evolution in a plant's manufacturing process.

Video was taken of this machine in operation prior to disconnecting. I am working on getting those files from the current owner. I will post those videos upon file receipt. I am also confirming if this machine has the high pressure through spindle coolant option installed on this unit.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is under power; available for inspection.
Buyer responsible for loading equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
