Used

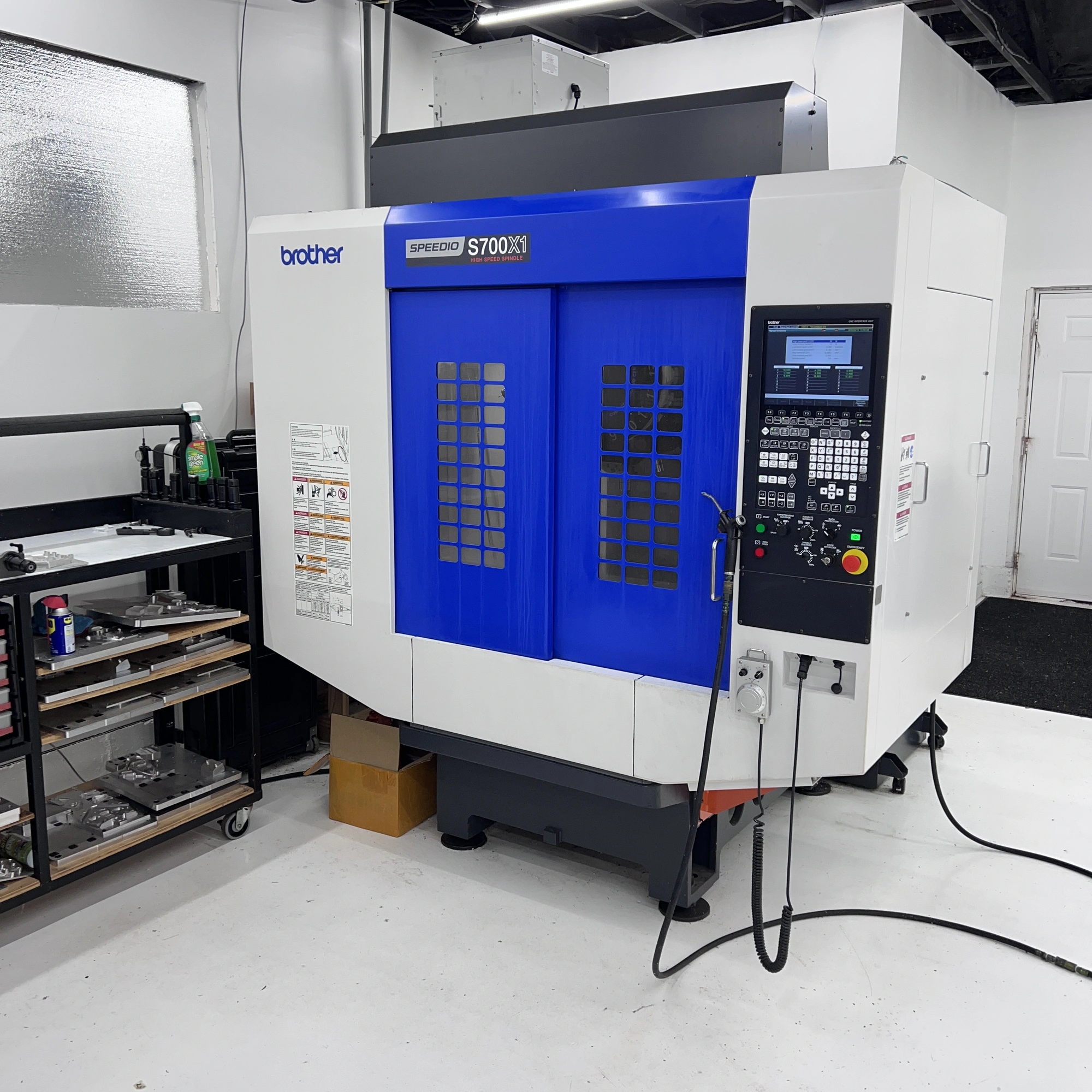

USED 2020 BROTHER SPEEDIO S700X1

California, United States
757Listings|91Followers
Overview
Vertical Machining Centers

27,000 RPM spindle

2,800 hours

03/2020 build date

Cut aluminum and plastic only its entire life

Original machine table has never been used Table was protected with LPS-3 and covered with a fixture plate from new

Machine Specs:

Brother C00 control with built-in PLC

27,000 RPM spindle

11.8 / 8.4 HP spindle motor

BT30 taper

21-tool drum ATC

Travels: 27.6" x 15.7" x 11.8"

Table: 31.4" x 15.7"

Rapids: X/Y 1,969 IPM / Z 2,205 IPM

Spindle taper air blast

Auto grease lubrication system

150L coolant tank with chip shower

High Accuracy Mode BII

Safety door interlock system

Manual pulse generator

2-light work light kit

Shower gun

Metrol TM26D-01 tool setter with 60 mm rise

Top cover

MistAway MA700C coolant mist collector, 700 CFM

Specs
X
27.6"
701.04 mm
Y
15.7"
398.78 mm
Z
11.8"
299.72 mm
Power
10.1 kW
13.5 hp
RPM
10,000 RPM
10,000 RPM
# ATC
21
21
Taper
7/24 #30
7/24 #30
Table-W
15.7"
398.78 mm
Table-L
31.5"
800.1 mm
# Axis
3
3

Brand: BROTHER SPEEDIO
Model: S700X1
Type: Vertical Machining Center
Year: 03/2020

Brother C00 control with built-in PLC
27,000 RPM spindle
11.8 / 8.4 HP spindle motor
BT30 taper
21-tool drum ATC
Travels: 27.6" x 15.7" x 11.8"
Table: 31.4" x 15.7"
Rapids: X/Y 1,969 IPM / Z 2,205 IPM
Spindle taper air blast
Auto grease lubrication system
150L coolant tank with chip shower
High Accuracy Mode BII
Safety door interlock system
Manual pulse generator
2-light work light kit
Shower gun
Metrol TM26D-01 tool setter with 60 mm rise
Top cover
MistAway MA700C coolant mist collector, 700 CFM

HOURS: 2,800

Sellers Note:
Cut aluminum and plastic only its entire life. Original machine table has never been used Table was protected with LPS-3 and covered with a fixture plate from new

TERMS:
Location Los Angeles, CA - “AS-IS, WHERE-IS”, with all faults, off seller’s floor. Full Payment due prior to shipment. Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
