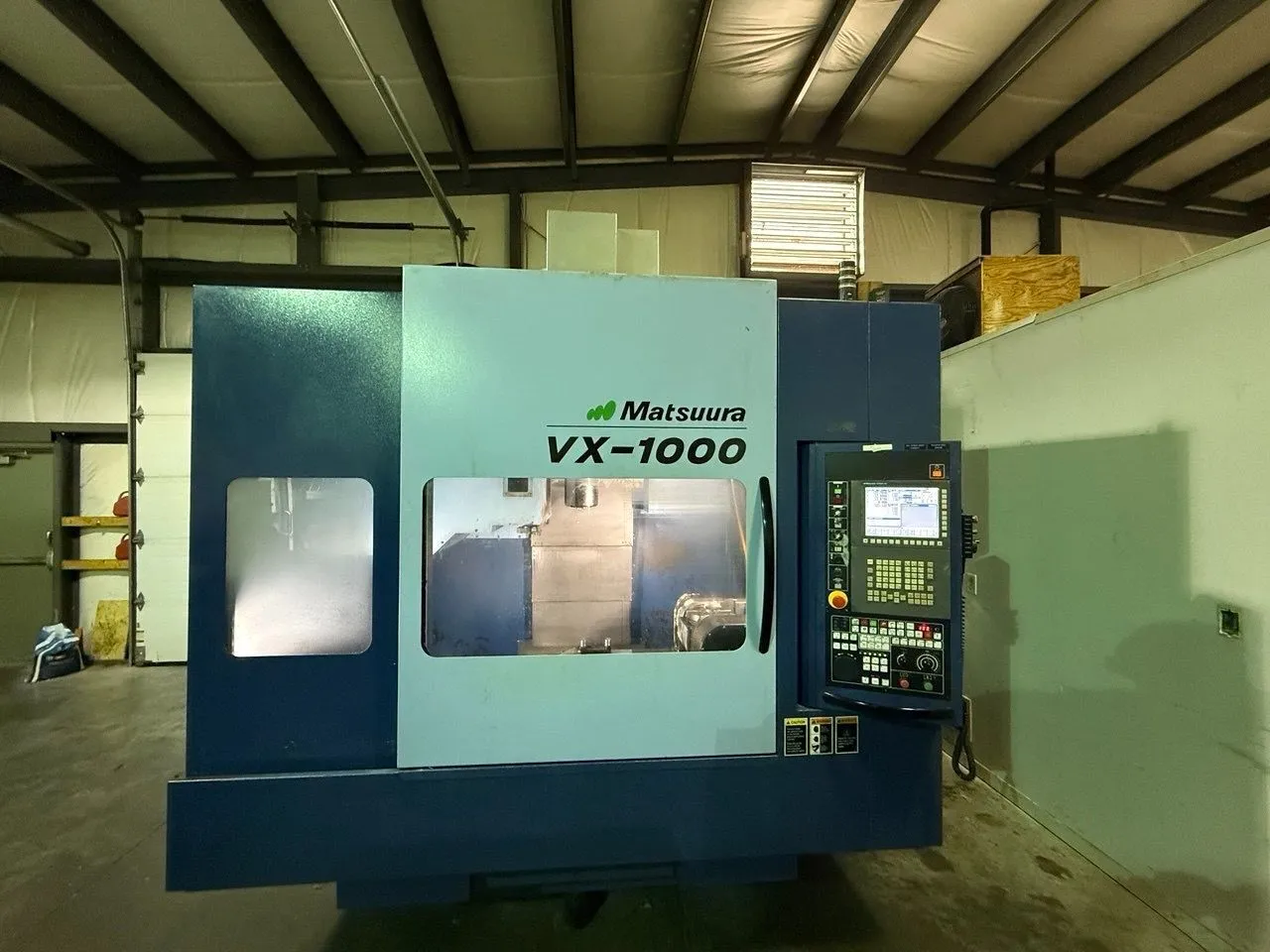

USED 2017 MATSUURA VX-1000

2017 MATSUURA VX-1000 3-AXIS CNC VERTICAL MACHINING CENTER

Manufacturer: Matsuura
Model: VX-1000
Machine Type: CNC Vertical Machining Center
Mfg Date: 2017

Power: 200V / 3 Phase / 60 Hz

Hours:
Power On Hours: 16,018 hrs
Run Hours: 8,509 hrs
Cutting Hours: 6,450 hrs

Axis: 3 + 2 Rotary Table
Specs:
Control: Matsuura G-Tech 31i (Fanuc 31i Platform)
Travels (X x Y x Z): 40.15 in x 24.01 in x 24.01 in (1,020 x 610 x 610 mm)
Table Size: 47.24 in x 23.62 in (1,200 x 600 mm)
Table Capacity: 1,100 lb (500 kg)
Spindle Taper: CAT 40
Spindle Speed: 15,000 RPM Standard
Tool Changer Capacity: 30 Tools Standard
Rapid Traverse (X/Y): 1,575 IPM (40 m/min)
Rapid Traverse (Z): 1,417 IPM (36 m/min)
Through-Spindle Coolant: Standard
Chip Conveyor: Lift-Up Conveyor Standard
Automatic Tool Changer: Twin-Arm Style
Maximum Tool Diameter: 3.94 in (100 mm)
Maximum Tool Length: 11.02 in (280 mm)
Maximum Tool Weight: 15.4 lb (7 kg)

Included:
Renishaw Probe
Tool Height Setter
4th & 5th Axis Trunnion Rotary Table
Pull Studs (Retention Knobs)
2 Indexable Face Mills

*SPINDLE REPLACED OCTOBER 2025 BY MATSUURA*
Machined Aluminum Only

Weight: 16,300 lb
Dimensions: 104 X 104 X 130in
