NEW 2021 FANUC M-900iB/700 + R-30iB PLUS
Overview
Description

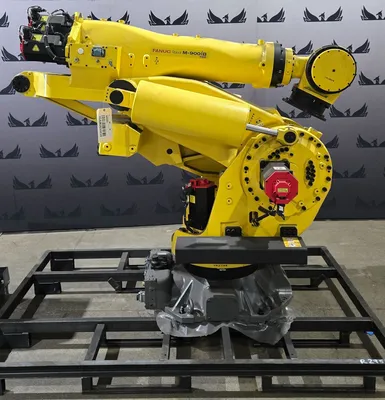

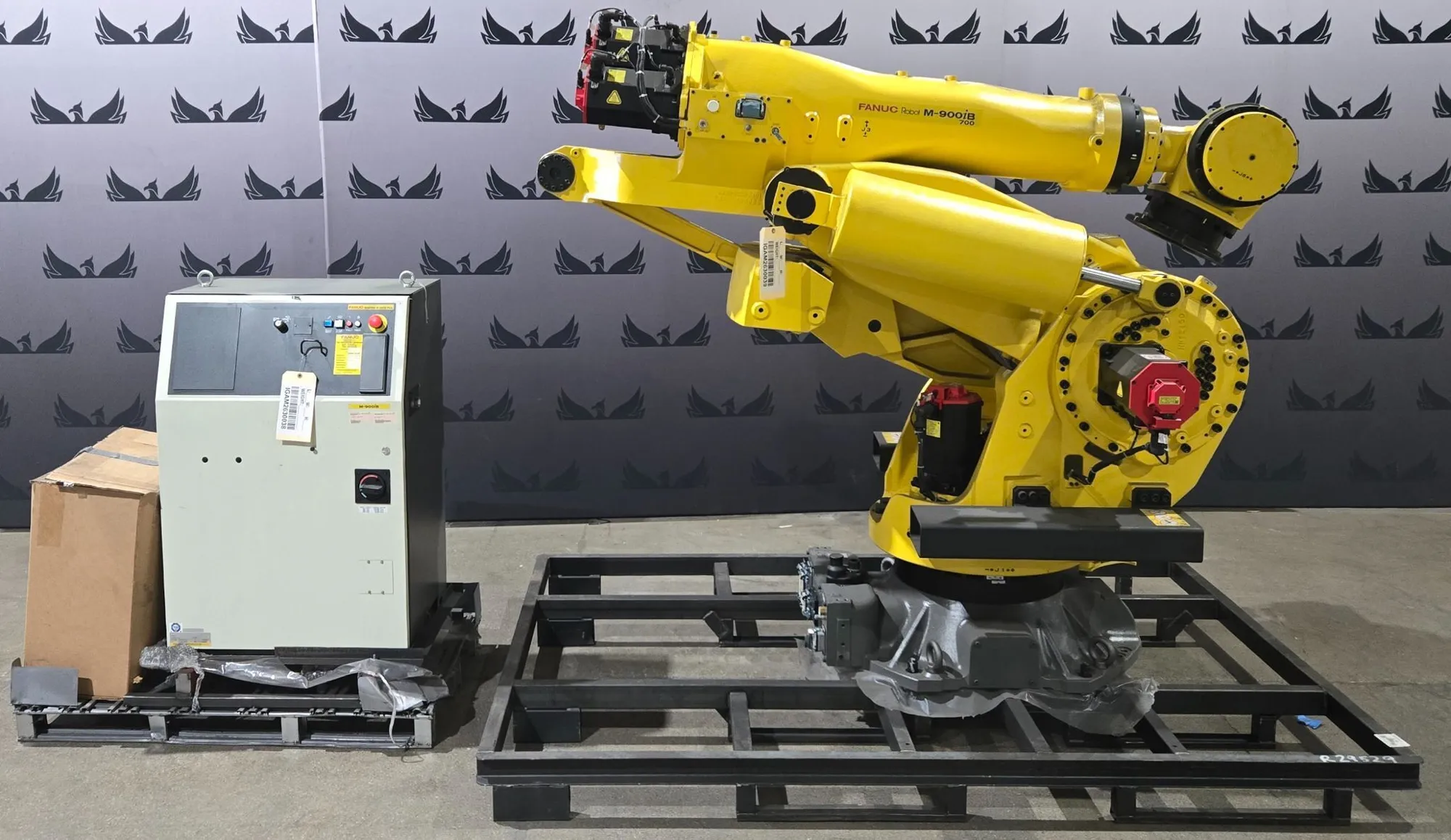

This listing is for a NEW FANUC M-900iB/700 robot complete with R-30iB Plus controller and iPendant. This system supports high-payload robotic handling, multi-axis positioning, and large-scale automation tasks requiring extended reach and structural stability in heavy industrial environments.
Specifications
| # Axis | 6 | 6 |
|---|---|---|
| Payload | 700 kg | 1,543.2 lb |
| Horizontal Reach | 2,832 mm | 111.5" |
| Dimensions | 96 X 64 X 89 | 96 X 64 X 89 |
| Weight | 6300 LBS | 6300 LBS |
Manufacturer: FANUC

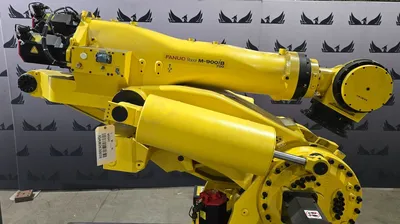

Model: M-900iB/700
Robot Type: 6-Axis Articulated Robot

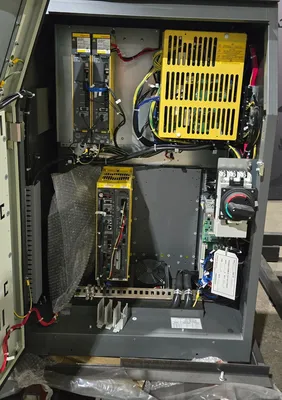

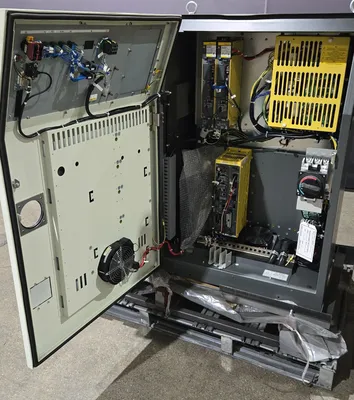

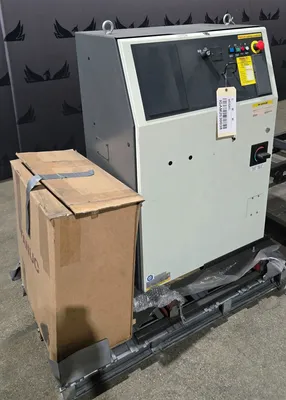

Controller: R-30iB Plus
Payload Capacity: 700 kg
Max Reach: 2832 mm
Repeatability: ±0.2 mm
Number of Axes: 6
Mounting Configuration: Floor Mount
Installation Orientation: Upright / Floor

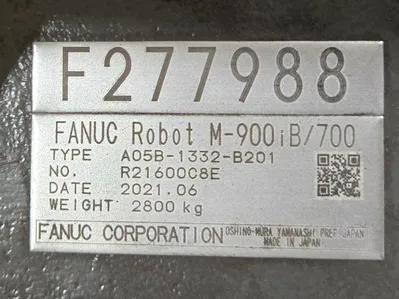

Robot Type Number: A05B-1332-B201
Robot Serial Number: R21600C8E
Robot Weight: 2800 kg
Controller Type Number: A05B-2614-B070
Controller Serial Number: E21631402
Controller Input Voltage: 380–480 VAC (Multi-Tap)
Input Phase: 3 Phase
Frequency: 50/60 Hz
Apparent Power Rating: 13 kVA

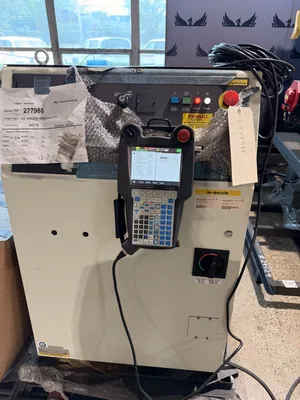

Teach Pendant: Included

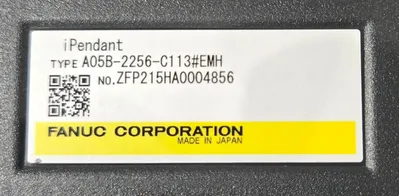

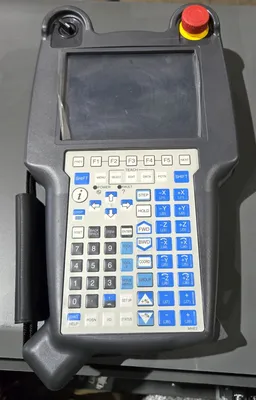

Pendant Model: iPendant
Pendant Type Number: A05B-2256-C113#EMH
Pendant Serial Number: ZFP215HA0004856
Runtime (Servo On Time): 1.5 hours
Year of Manufacture: 2021

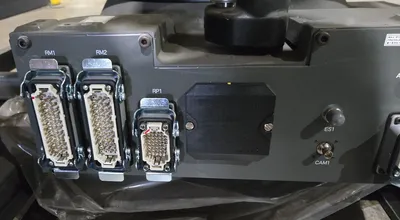

Robot to Controller Cables: Included
End of Arm Tooling: Not included
Software / Options: V9.3 Spot +
Condition: NEW
