USED 2009 Amada Togu III, 2009

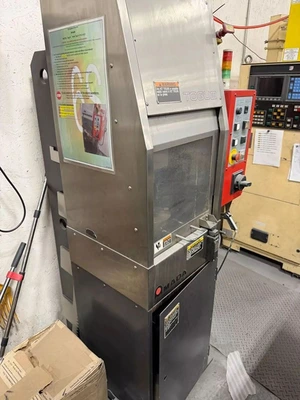

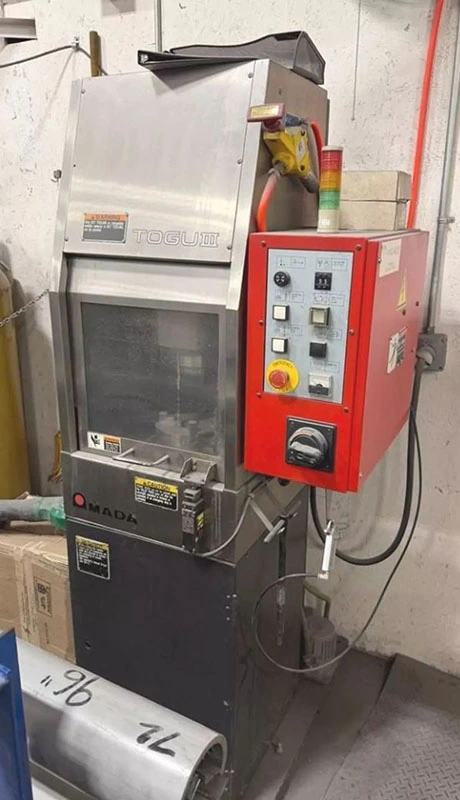

        AMADA MODEL TOGU-III

       PUNCH & DIE GRINDER

         (MADE IN JAPAN)

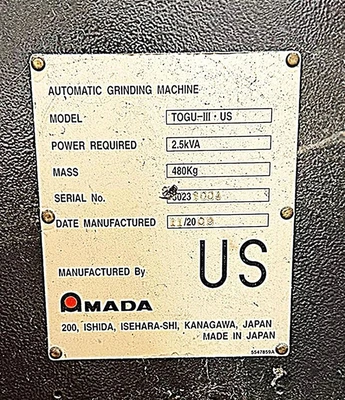

S/N: 30231004     NEW: 11/20/2009

** MAINTAIN PUNCHES & DIES

   AT OPTIMUM CONDITION **

GENERAL SPECIFICATIONS:

MAXIMUM GRINDING AMOUNT: 0.099"

MAXIMUM/MINIMUM TOOL DIAMETER: 6.299”

MAXIMUM/MINIMUM TOOL HEIGHT: 5.906"

STANDARD GRINDING WHEEL: 5.315"

SPINDLE MOTOR: 2 H.P.

SPINDLE ROTATING SPEED: 3000 R.P.M.

VERTICAL TRAVEL DISTANCE: 9.449"

VERTICAL FEED MOTOR: DC SERVO MOTOR

JOG FEED SPEED: 11.811 I.P.M.

POSITIONING SPEED: 1.1811 I.P.M.

GRINDING SPEED: 0.0023622 I.P.M.

TABLE MOTOR: 0.1 KW

TABLE ROTATING SPEED: 72 R.P.M.

COOLANT TANK CAPACITY: 8.90 GALLONS

COOLANT PUMP MOTOR: 0.06 KW

SUPPLY VOLTAGE: 230 VOLTS

ELECTRIC POWER CONSUMPTION: 2.5 KVA

DIMENSIONS: 33" x 34" x 76"

WEIGHT: 1,100 LBS

EQUIPPED WITH:

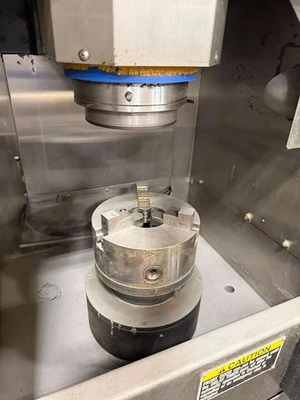

6" DIAMETER SCROLL-TYPE THREE JAW CHUCK

"COMMENTS FROM AMADA":

* HIGH-PRECISION AUTOMATED GRINDING

  DESIGNED SPECIFICALLY

  OR TURRET PUNCH PRESS TOOLING.

* SERVO-CONTROLLED WET ROTARY GRINDING

  PROVIDES UNSURPASSED SURFACE FINISH

  WHILE SIGNIFICANTLY INCREASING

  TOOL LIFE.

* EASY OPERATION, EXPERIENCED GRINDING

  OPERATOR IS NOT REQUIRED.

* SMALL FOOTPRINT ALLOWS STRATEGIC

  SHOP PLACEMENT.

** INSPECT UNDER POWER IN OUR HARRISON, NJ **

** EXCEPTIONAL CONDITION & APPEARANCE **

** - ORIGINAL PAINT - **

FOR MORE INFORMATION: Call Andy at 973-497-7600
