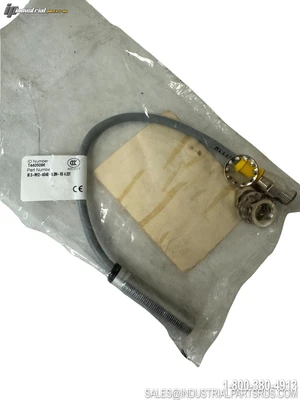

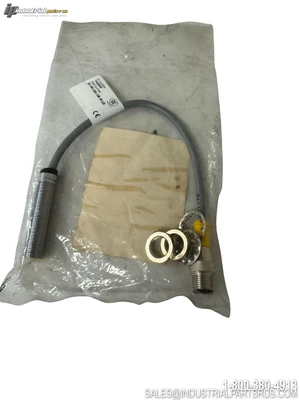

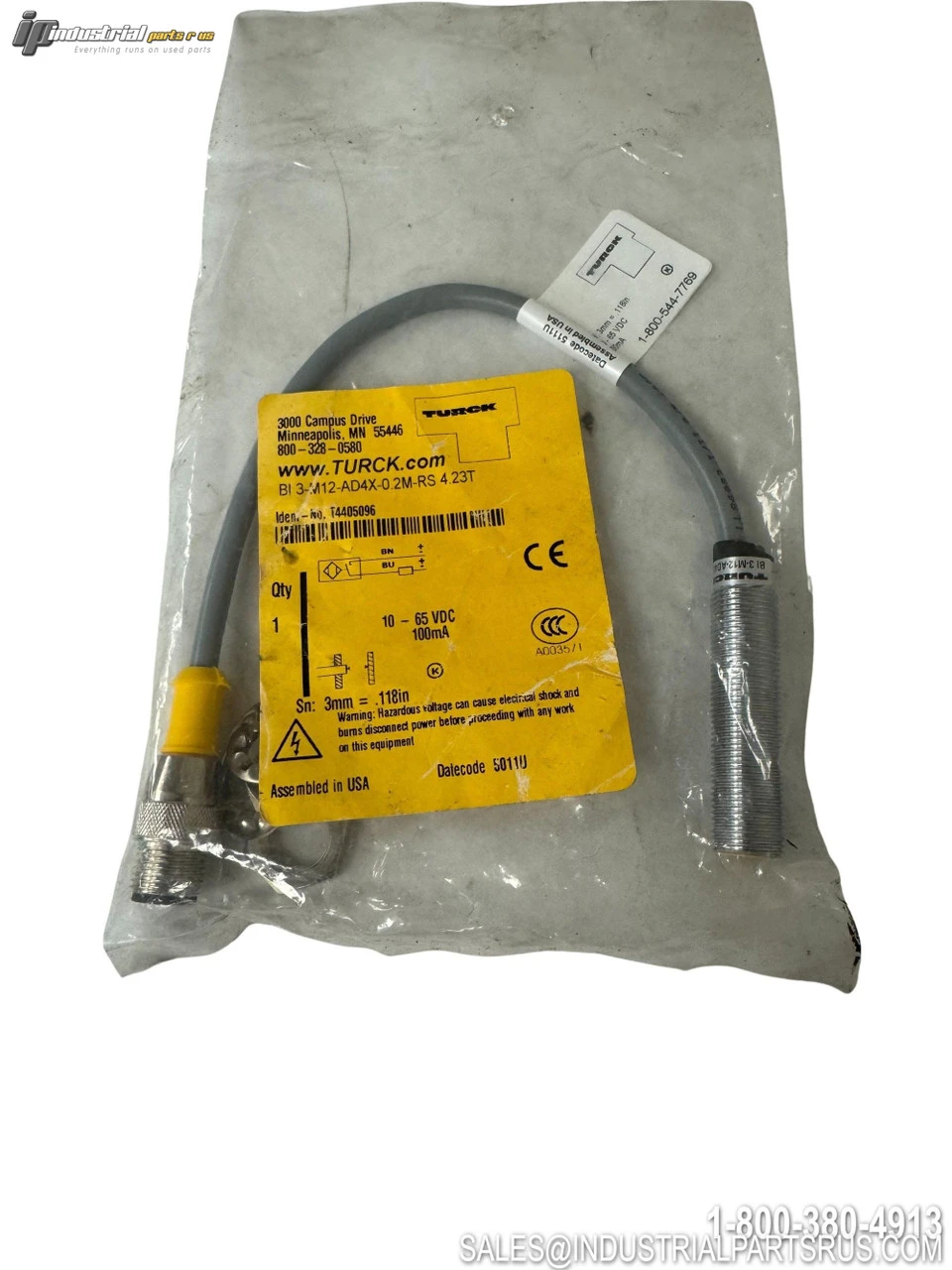

NEW TURCK BI 3-M12-AD4X-0.2M-RS 4.23T

The Turck BI 3-M12-AD4X-0.2M-RS 4.23T is a shielded (embeddable/flush-mount) inductive proximity sensor in an M12 × 1 threaded brass barrel housing. It features a 3mm rated sensing distance, DC 2-wire normally open (NO) output operating from 10–65 VDC, and terminates in a 0.2m (20cm) pigtail cable fitted with a 4-pin M12 Eurofast quick-disconnect male connector. The sensor is designed for reliable metal target detection in industrial automation environments and is rated IP67 for protection against dust and water ingress.
Specification
Value
Brand
Turck
Model / Part Number
BI 3-M12-AD4X-0.2M-RS 4.23T
Product Type
Inductive Proximity Sensor
Sensing Range (Nominal)
3 mm
Body / Thread Size
M12 × 1 (partially threaded barrel)
Sensing Face Diameter
12 mm
Housing Material
Chrome-plated brass (CuZn)
Active Area (Face) Material
PA12-GF30 (glass-fiber reinforced polyamide)
Supply Voltage
10–65 VDC (12V / 24V / 48V nominal)
Output Type
DC 2-wire, Normally Open (NO)
Max. Load Current
100 mA
Switching Frequency
1,000 Hz (1 kHz) max.
Mounting Style
Flush / Embeddable (Shielded)
Connection Type
0.2m (20cm) pigtail cable with 4-pin M12 Eurofast QD male straight connector
Number of Pins
4-pin M12 (2-wire active)
IP Rating
IP67
NEMA Rating
NEMA 1, 3, 4, 6, 13
Operating Temperature
-25°C to +70°C (-13°F to +158°F)
Short-Circuit Protection
Yes (pulsed)
Overload Protection
Yes
Reverse Polarity Protection
Yes
LED Indicator
Yes (Yellow, output energized)
Overall Length
62 mm
RoHS Compliant
Yes
Series / Product Family
BI...-M12 Series
We warranty all items for 30 days from date of purchase.
