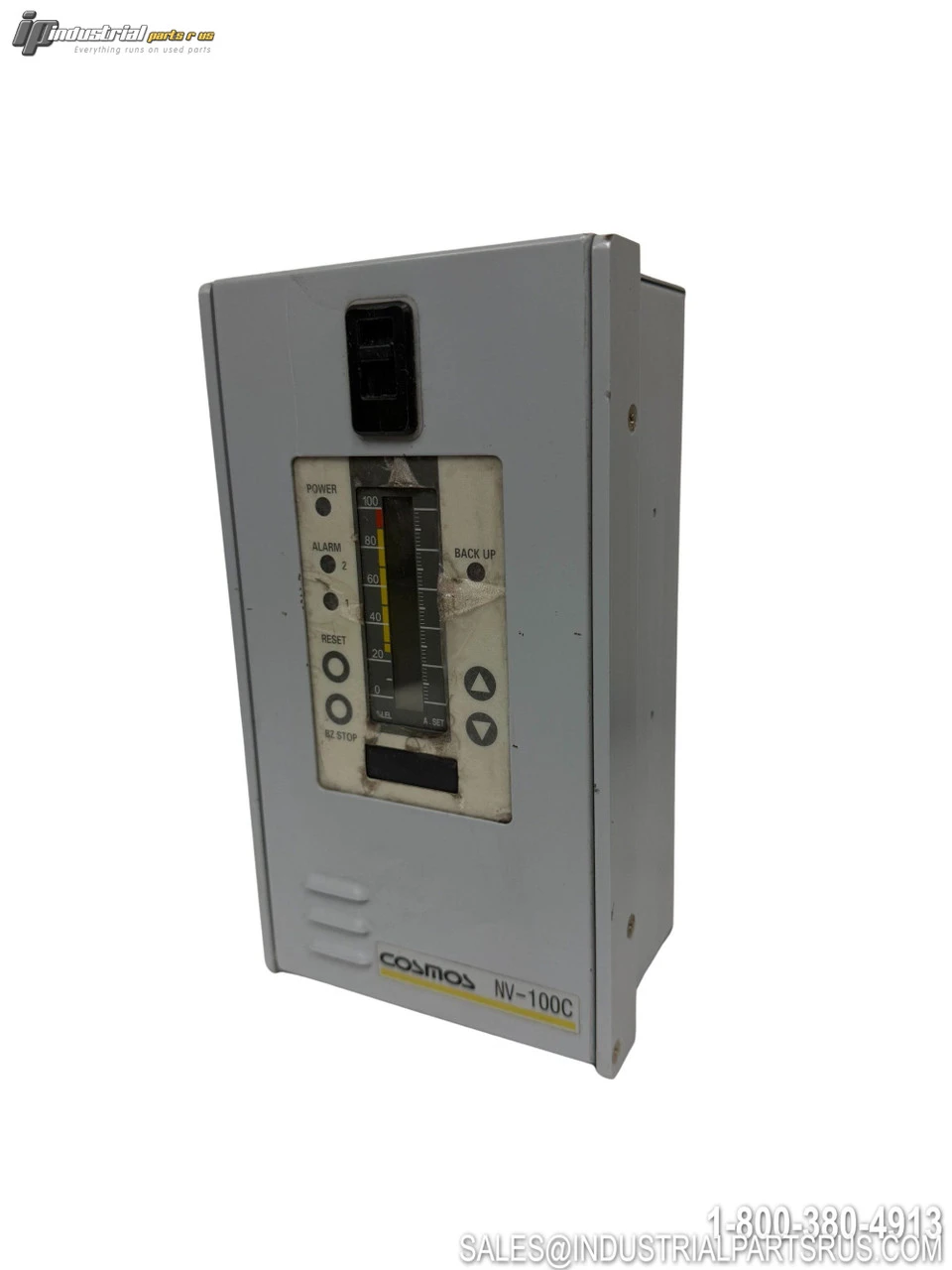

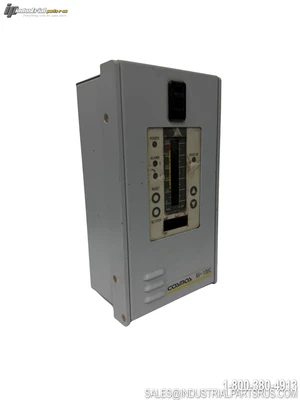

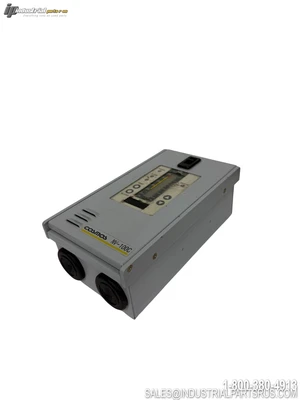

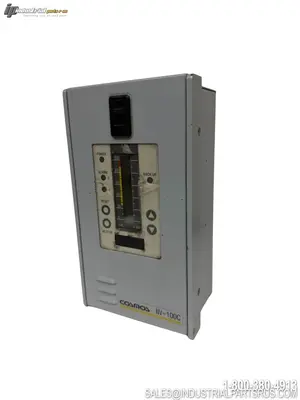

USED COSMOS NV-100C

The New Cosmos Electric NV-100C is a single-point combustible gas detection and alarm system designed for continuous monitoring of combustible gas leakage in industrial environments. It uses catalytic combustion on a platinum filament as its detection principle and displays gas concentration on an LCD bar graph meter with backlight. The unit is housed in an earthquake-resistant, slim plastic molded case and can be wall-hung or panel-embedded, making it suitable for petrochemical, semiconductor, and steel industry applications.
Specification
Value
Brand
New Cosmos Electric (Cosmos)
Model / Part Number
NV-100C
Product Type
1-Point Type Combustible Gas Detection / Alarm System
Principle of Detection
Catalytic Combustion on a Platinum Filament
Gases to be Detected
Combustible gases
Indicating Range
0–100% LEL
Gas Concentration Indicator
LCD bar graph meter with backlight
Power Source (Input Voltage)
AC100/240V or DC24V
Power Consumption
Approx. 5.0W (excluding power consumption of extractive gas detector)
Alarm Output Contact
1c no-voltage relay contact (100V AC / 1A resistive load); 1a for trouble contact
Alarm Stages
1st and 2nd stage alarm, adjustable within detection range
Alarm Type
Latching (standard); non-latching available as option
Power Lamp Indication
Green (normal); Blinks green on startup (30s warm-up); Orange on sensor failure; Off on trouble
Alarm Lamp Indication
Red flashing on alarm; Lights up by reset
Dimensions (W x H x D)
113 x 204 x 71.5 mm
Weight
Approx. 1.5 kg
Housing / Body Material
Plastic molded case
Mounting Type
Wall-hung or panel-embedded
Compatible Gas Detectors
Diffusion type: KD-5□-N (3C cable); Suction type: PE-2DC (6C cable)
Backup Power Option
Optional battery backup for continuous monitoring 60+ minutes after power failure
Explosion-Proof
No — install in non-hazardous area only
Calibration
Auto zero and span adjustment (one-touch maintenance mode)
Zero Suppression Function
Yes — cancels slight reading fluctuations due to environmental change
Peak Hold
Yes — peak value blinks after alarm even when reading decreases
Optional Features
Peak hold function, alarm delay, low flow rate alarm, switch cover
Instruction Manual No.
GAE-009-01 (December 2004)
Applications
Petrochemical, semiconductor industry, steel industry
We warranty all items for 30 days from date of purchase.
