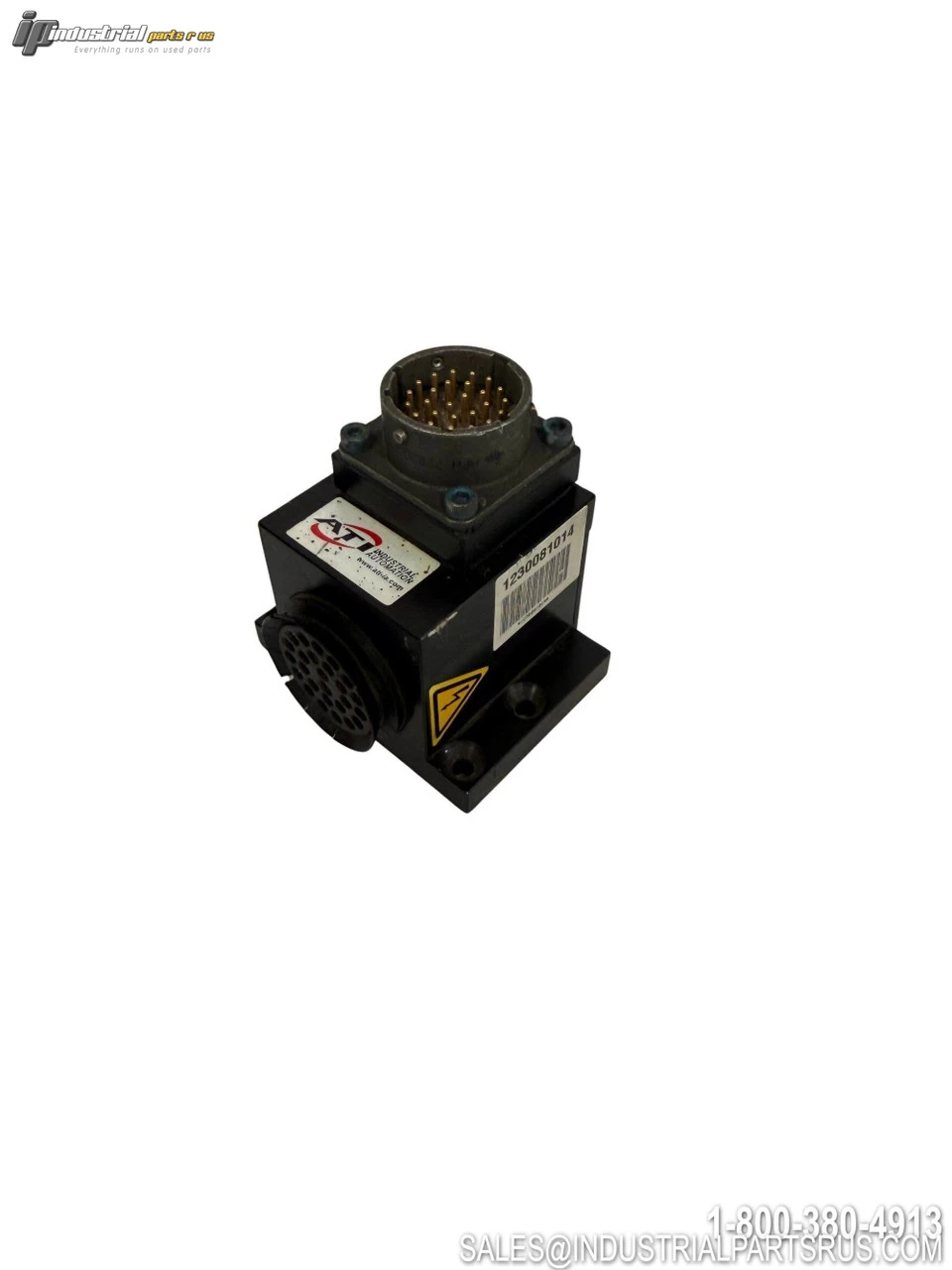

USED ATI R26M

The ATI Industrial Automation R26M (catalog number 9120-R26-M) is the master-side 26-pin electrical pass-through module designed for ATI's Quick-Change (QC) robotic tool changer systems. It features a miniature MS quick-disconnect connector rated at 3A and 250VAC, enabling reliable digital electrical signal transfer between robot arm and end-effector tooling. The module is compatible with a wide range of ATI QC tool changer body sizes including QC-40, QC-41, QC-71, QC-110, QC-150, and QC-300.
Specification
Value
Brand
ATI Industrial Automation
Model / Part Number
R26M (9120-R26-M)
Product Type
Robotic Tool Changer Electrical Module – Master Side
Number of Pins
26 Pins
Rated Current
3A per pin
Rated Voltage (AC)
250VAC
Connector Type
Miniature MS Quick-Disconnect
Side
Master Side (Robot Arm Side)
Compatible Tool Changer Models
QC-40, QC-41, QC-71, QC-110, QC-150, QC-300
Application
Robotic End-of-Arm Tooling / Automatic Tool Changer
Housing Material
Aluminum
Seal Type
V-Ring Seal (watertight when locked)
Contact Pin Material
Gold-plated spring housing (Master side)
Manufacturer Location
Apex, NC, USA
Related Module (Tool Side)
9120-R26-T (R26T)
High-Temp Variant
R26-VL (Viton seals, Teflon wires, rated to 125°C)
We warranty all items for 30 days from date of purchase.
