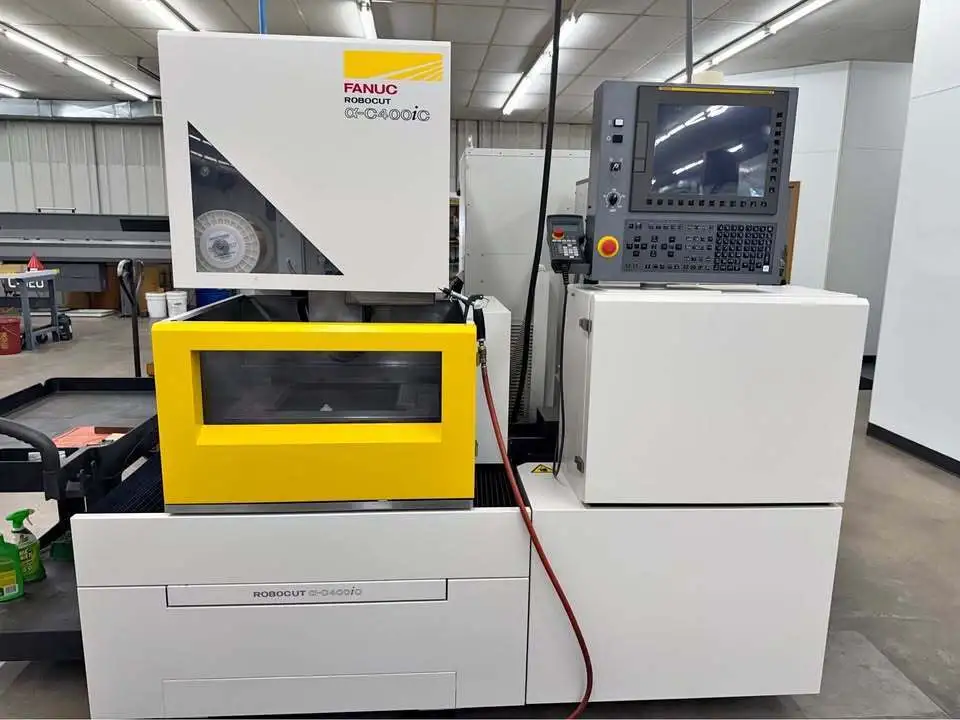

USED 2022 FANUC ROBOCUT ALPHA C400IC

Fanuc Robocut Alpha C400IC EDM Electrical Discharge Machine (2022)

Technical Workpiece & Capacity Limits

Maximum Workpiece Dimensions: 730 × 630 × 250 mm
Maximum Workpiece Weight: 500 kg
Machine Weight (Approximate): 2,200 kg (4,850 lbs)
Axis Travel & Precision Mechanics
X / Y Axis Travel: 400 × 300 mm
Z Axis Travel: 255 mm (10.0 in)
U / V Axis Travel: ± 60 × ± 60 mm
Standard Taper Angle: ± 30° at 80 mm height
Optional 45° Die Guide Taper: ± 45° at 40 mm height
Drive Step Increment Minimum: 0.0001 mm
Positioning Accuracy: ± 0.000050 inFeedback System:
High-resolution Rotary/Heidenhain Glass Encoders (0.000002 in / 0.05 μm)
Wire & Discharge Control Specifications
Standard Wire Diameters: ∅ 0.10 to ∅ 0.30 mm (0.004 to 0.012 in)
Thin Wire Option: ∅ 0.05 to ∅ 0.07 mm
Maximum Wire Spool Weight: 16 kg (35 lbs standard; upgradable to 30 kg)
Automatic Wire Feeding (AWF3):
Rapid 10-second submerged air/water threading path.
Standard Power Supply: SF3 high-frequency generator for anti-recast and high-speed cutting.
Optional Power Supply: MF2 fine-discharge unit for ultra-smooth surface finishes.Controller & Software
CNC System: FANUC 31i-WB Controller featuring the intuitive iHMI touchscreen interface.Part Program Storage: 8 MB internal memory.
Key Features: iPulse3 discharge control, AI thermal displacement compensation, "Core Stitch" slug retention, and fully integrated 4/5-axis "Turn & Burn" capabilities.
Utility & Installation Layout Requirements
Power Supply: 3-phase AC 200V/220V (± 10%), 50/60HzPower Consumption: 13 kVAAir Supply Source: 0.5 - 0.7 MPa pressure at a minimum flow rate of 160 L/min
Operating Environment: Optimal temperature range of 15-30°C (strictly 20± 1°C recommended for high-precision operations) under 75% relative humidity or less.
