USED CLAUSING COLCHESTER 17

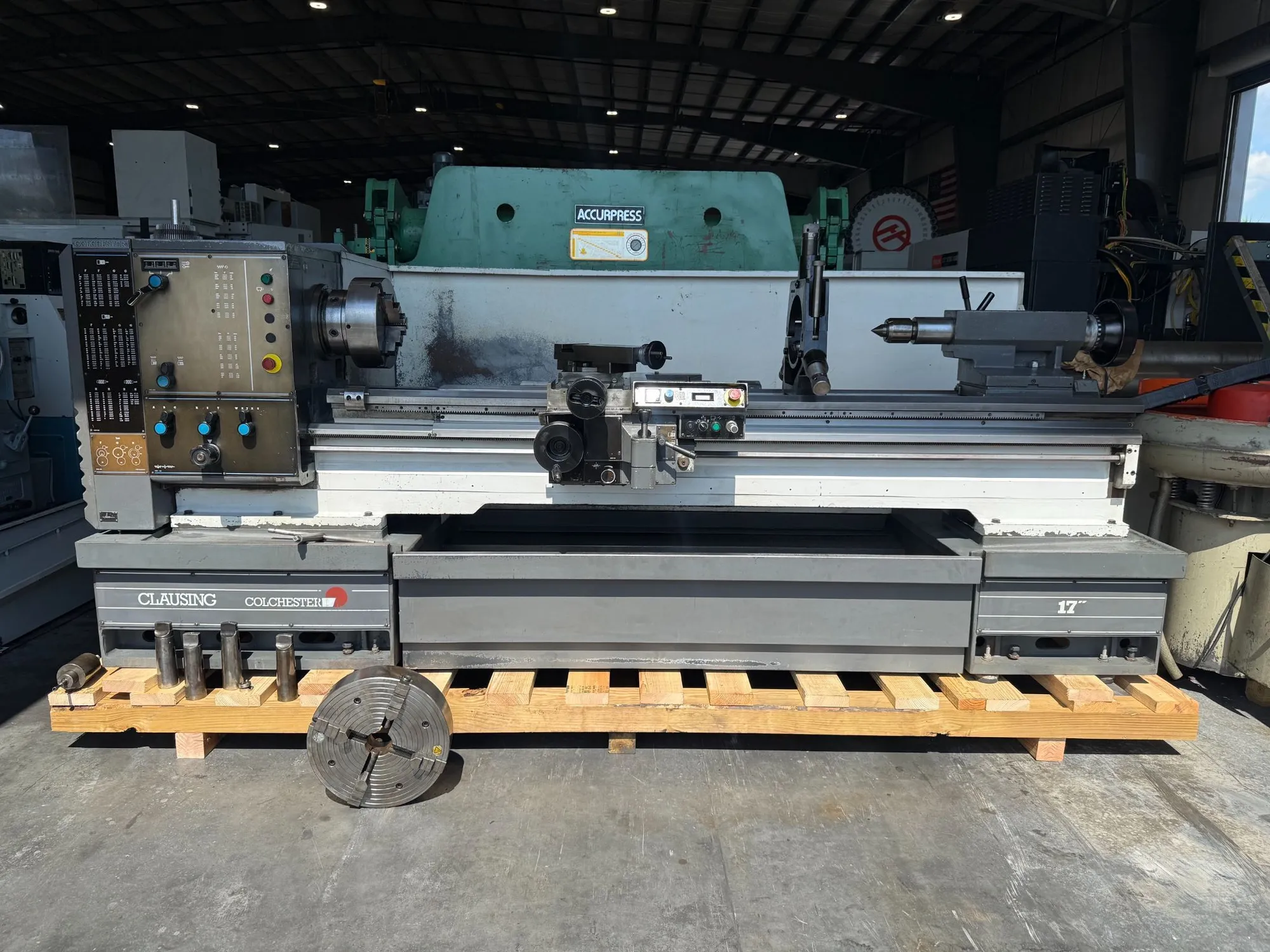

CLAUSING COLCHESTER 17”/22” x 80”cc Engine Lathe Variable Speed #8395
Reference # 8395
Model # 17” Colchester
Serial # 089GIL3V1681
Swing over bed- 17-1/4”
Swing in gap- 22”
Swing over cross slide- 10-1/2”
Distance between centers- 80”
Hole through spindle- 3-1/16”
Spindle nose, Camlock, size- D-1-8
(3) Spindle speeds- 20 – 2000 R.P.M. Variable
Headstock and tailstock spindle center taper- #5 Morse
Tailstock spindle travel- 7”
Tailstock spindle diameter- 2-15/16”
Width of bed- 13-1/2”
Longitudinal feeds- .002” - .032” I.P.M.
Cross feeds- .001” - .016” I.P.M.
Inch threads- (45) 2 – 72 T.P.I.
Metric threads- (39) .4 – 14 mm
