USED MAZAK VTC-800/30SR
Overview

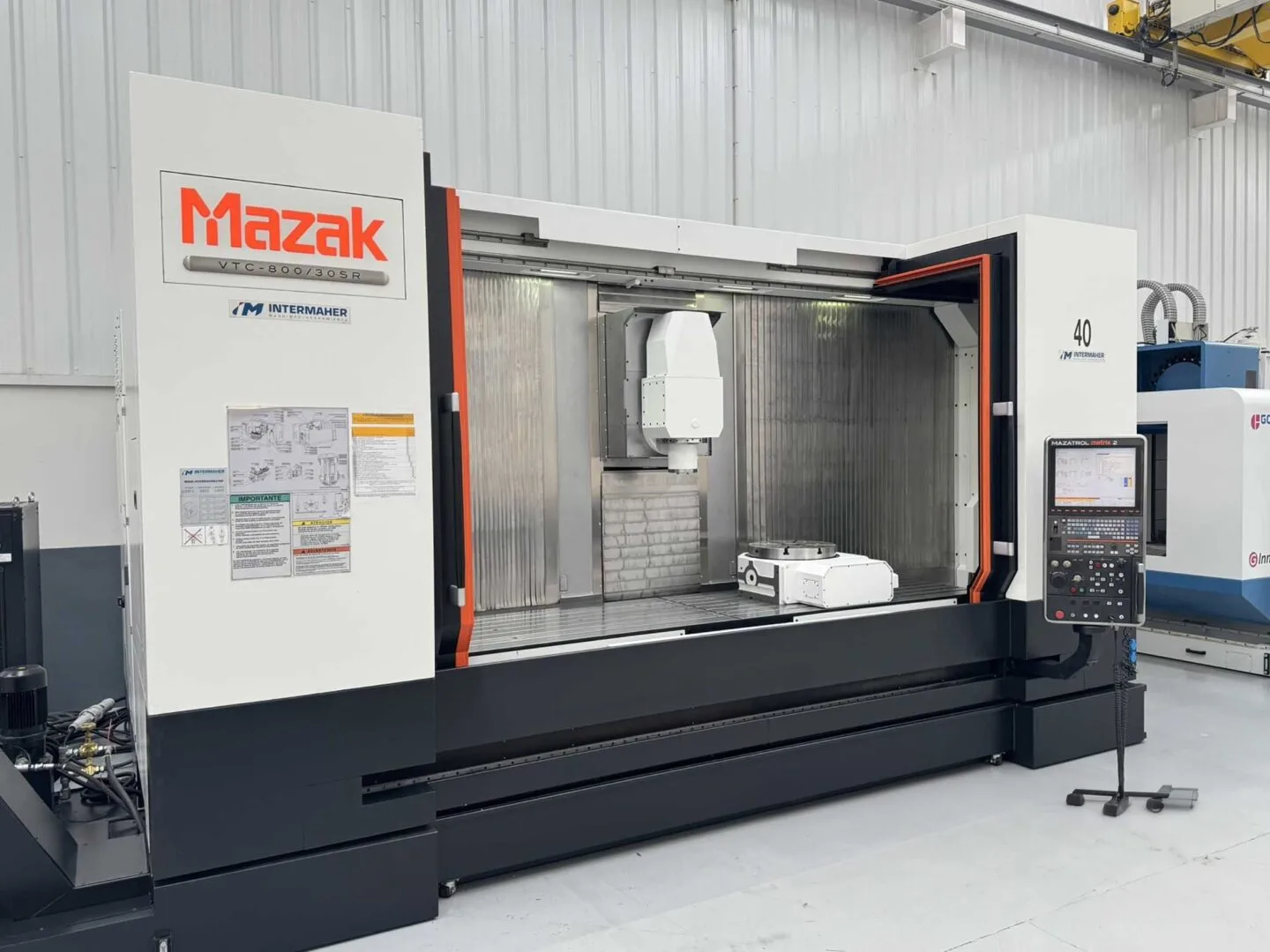

The Mazak VTC-800/30SR is a high-performance 5-axis vertical machining center engineered for large, complex workpieces. Its swiveling B-axis head (±110°, 220° total range) enables vertical, horizontal, and angled surface machining in a single setup — reducing cycle time and fixturing costs. With a 118″ X-axis stroke and 18,000 RPM spindle, the VTC-800/30SR is a proven solution for aerospace, mold making, and precision manufacturing applications.
Axis Travels X: 118.1″ | Y: 31.5″ | Z: 28.35″ | B-axis: ±110° | C-axis: 360°
Worktable 137.8″ × 32.3″ table with 5,512 lb max load capacity.
Spindle 18,000 RPM | 47 HP | 124 ft-lb torque | CAT-40 taper
Tool Magazine 30 tools standard (48 optional) | Max tool Ø 3.15″ | Max tool length 13.78″
Performance Rapid traverse: 1,969 in/min | B-axis indexing: 0.0001° | Control: Mazatrol Matrix 2
Standard Equipment NC rotary table, high-pressure through-spindle coolant, chip conveyor, tool length measurement and breakage detection, 3-color signal light.
Specs
X-axis travel: 118.1″
Y-axis travel: 31.5″
Z-axis travel: 28.35″
B-axis range: ±110° (220° total)
C-axis range: 360° (0.001° increments)
Spindle nose to table: 5.5″ – 33.9″
Table size: 137.8″ × 32.3″
Max table load: 5,512 lb
Spindle speed: 18,000 RPM
Spindle power: 47 HP / 35 kW
Max torque: 124 ft-lb
Spindle taper: CAT-40
Tool magazine capacity: 30 (48 optional)
Max tool diameter: 3.15″
Max tool length: 13.78″
Max tool weight: 17.6 lb
Rapid traverse: 1,969 in/min
B-axis indexing resolution: 0.0001°
B-axis clamp interval: every 5°
Control: Mazatrol Matrix 2
Year: 2014
