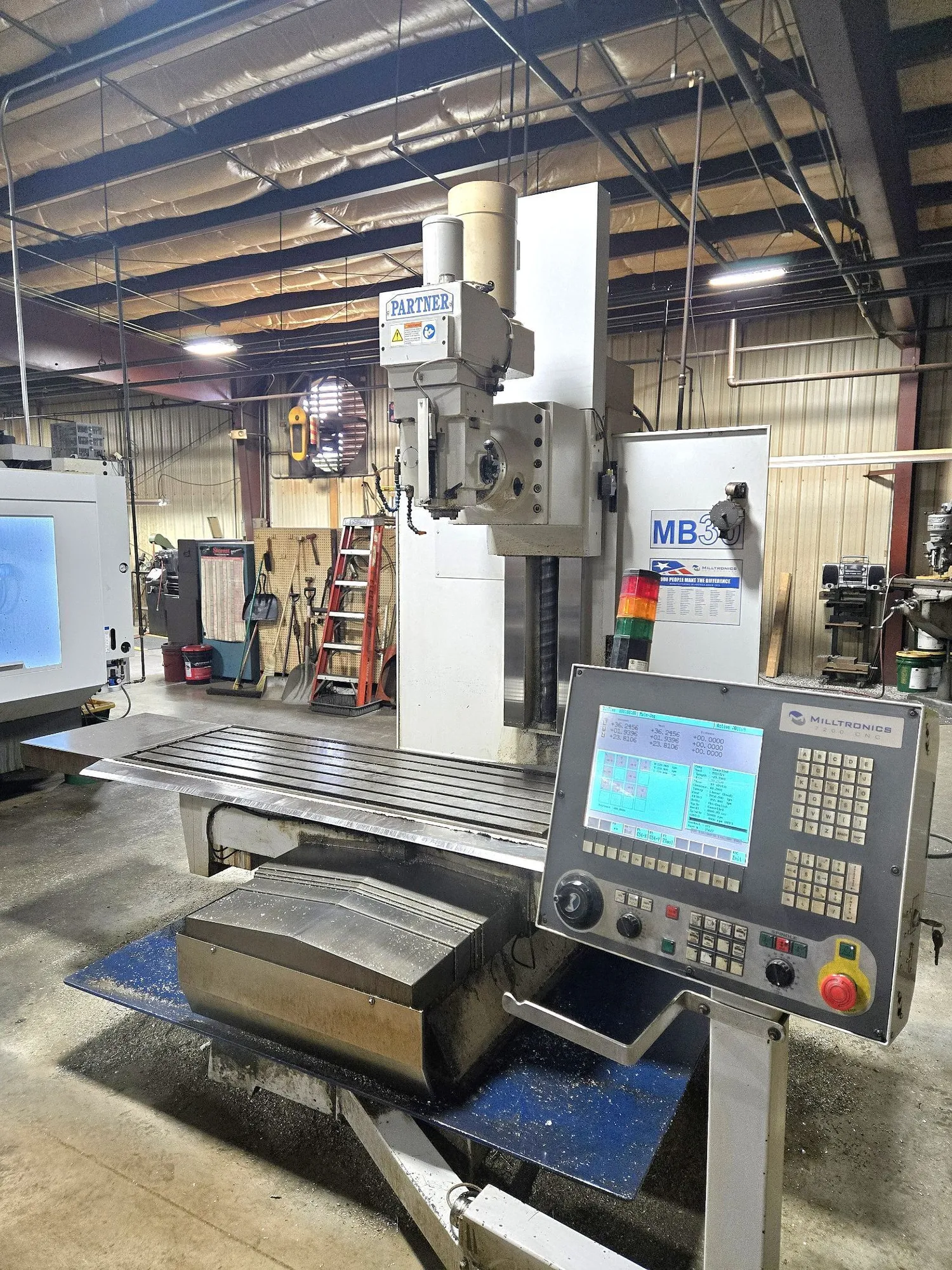

USED 2018 MILLTRONICS MB-30
Overview
Description
Used MILLTRONICS MB-30 Vertical Machining Center available. Features X/Y/Z travel of 60/30/28 inches, 15 HP spindle motor, 4000 RPM, BT 40 taper, and a 73" x 24" table. Approximate weight is 10,000 lbs. Ideal for precision machining tasks.
Specifications
| TABLE LENGTH | 73" | 1,854.2 mm |
|---|---|---|
| TABLE WIDTH | 24" | 609.6 mm |
| TABLE SIZE | 73" x 24" | 73" x 24" |
| TABLE CAPACITY | 3,500 lb | 1,587.6 kg |
| X-AXIS TRAVEL | 60" | 1,524 mm |
| Y-AXIS TRAVEL | 30" | 762 mm |
| Z-AXIS TRAVEL | 28" | 711.2 mm |
| SPINDLE SPEED | 4,000 RPM | 4,000 RPM |
| SPINDLE MOTOR | 15 hp | 11.2 kW |
| SPINDLE TAPER | BT 40 | BT 40 |
| RAPID TRAVERSE - X AXIS | 500 in/min. | 12.7 m/min. |
| RAPID TRAVERSE - Y AXIS | 500 in/min. | 12.7 m/min. |
| RAPID TRAVERSE - Z-AXIS | 300 in/min. | 7.6 m/min. |
| APPROX MACHINE WEIGHT | 10,000 lb | 4,535.9 kg |
| APPROX MACHINE DIMENSIONS | 169" X 91" | 169" X 91" |
| Control | CNC | CNC |
| Weight | 10000 lbs | 10000 lbs |
Equipped With
CENTURION 7200 CNC
6" MANUAL QUILL TRAVEL
BT 40 SPINDLE
LARGE ASSORTMENT OF MISC BT40 HOLDERS AND COLLETS
FULLY HARDENED & GROUND BOX WAYS WITH TURCITE
FULLY GROUND TABLE WITH PRECISION GROUND BALL SCREWS
12" LCD ACTIVE MATRIX COLOUR DISPLAY C/W
TACTILE KEYS
OPERATES AS 3 AXES CNC, SIMPLE 2 AXIS OR
MANUAL MODE
DRIP PAN
SPINDLE FULLY PROGRAMMABLE TO 4000 RPM
METAL WAY COVERS IN FRONT & REAR SADDLE
AUTO LUBE SYSTEM
220/3/60 ELECTRICS (SINGLE PHASE AVAILABLE)
** MACHINE IS COMING OUT OF A SINGLE SHIFT SHOP. SELLER ESTIMATES IT IS USED 1/4 OF THE TIME. LIGHT USE. ESTIMATED USE: @ 2,000 HOURS TOTAL
* COOLANT TRAY IS INCLUDED, NEVER INSTALLED (AS PICTURED)
.
