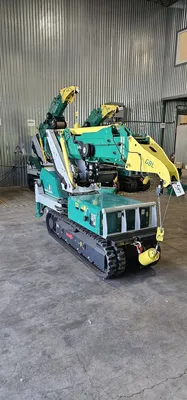

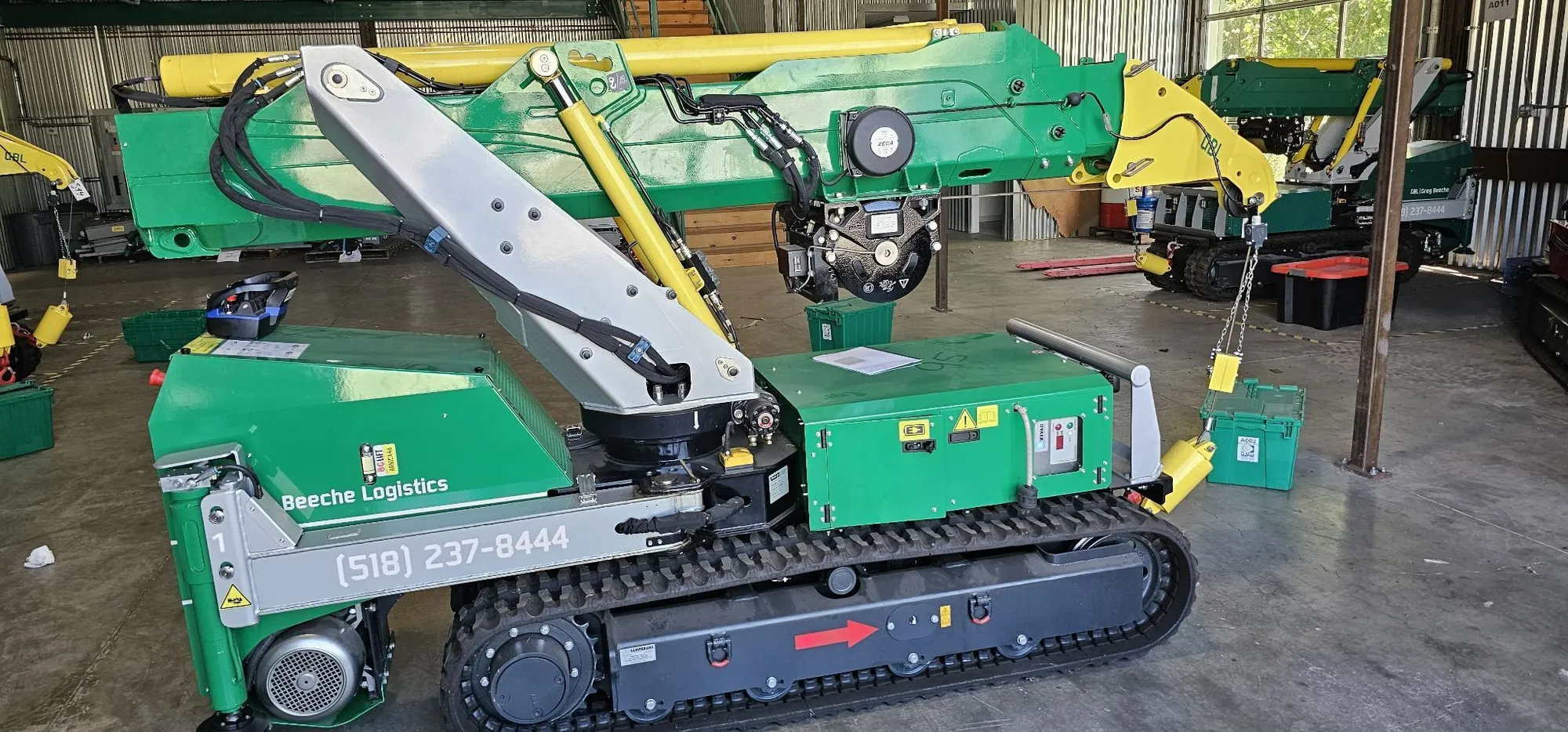

USED Brennero Gru M201_G

Telescopic crawler hoist complete with -Winch. 900 kg Rotzler hydraulic winch Radio controlled, mounted below the main boom, complete of single line pulleys and complete of upper and lower limiting device, rope length 150 m. -Hydraulic extensible -Black tracks -Two speeds epicycloidal moto-reducers with negative brake -Three phases electric motor coupled with electronic inverter and flow controlled hydraulic pump -Can bus controlled Lithium battery pack with LCD control panel integrated - Electronic battery charger onboard -Nr. 2 multi positions adjustable hydraulic stabilizers, multi- position stabilizer beams 0°-45°-90° -Automatic working area management system in relation to the opening of the stabilizer beams -180° slewing by means of slewing ring automatically limited -The telescopic boom with 1 hydraulic extension - Electronic load limiting device regulated to 1980 pounds. Key selector for electronic limit system deactivation; the hoist-lifter will safely operate at the maximum allowed hydraulic pressure within the allowed working area. -Hydraulic circuit with n.1 hydraulic pump, multi-functions HAVE flow sharing can-bus controlled distributor - Proportional multi- functions (all hoist+carrier functions) Scanreco radio remote control connected in can-bus to the hoist system. The Radio control is equipped with an LCD screen reporting the main hoist/battery information (hydraulic pressure %, boom angles, load charge...) -remote diagnostic and setting system for all the hoist functions, speeds, sensors. -lifting, transport and fixing hooks -n.2 led lights mounted on the base carrier.

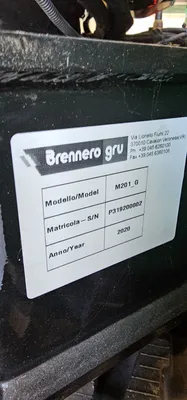

Unit A002 Model: M201_G Serial: P319200002 - 1.8 total work hours. 0.7 hours of track movement. 1.1 hours of boom movement.

Sold “AS-IS, WHERE-IS”. Available for pick-up only.
