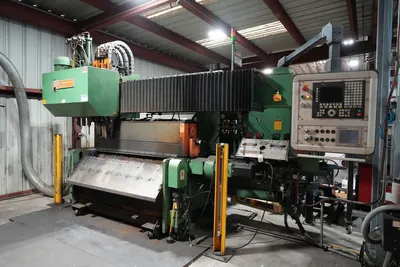

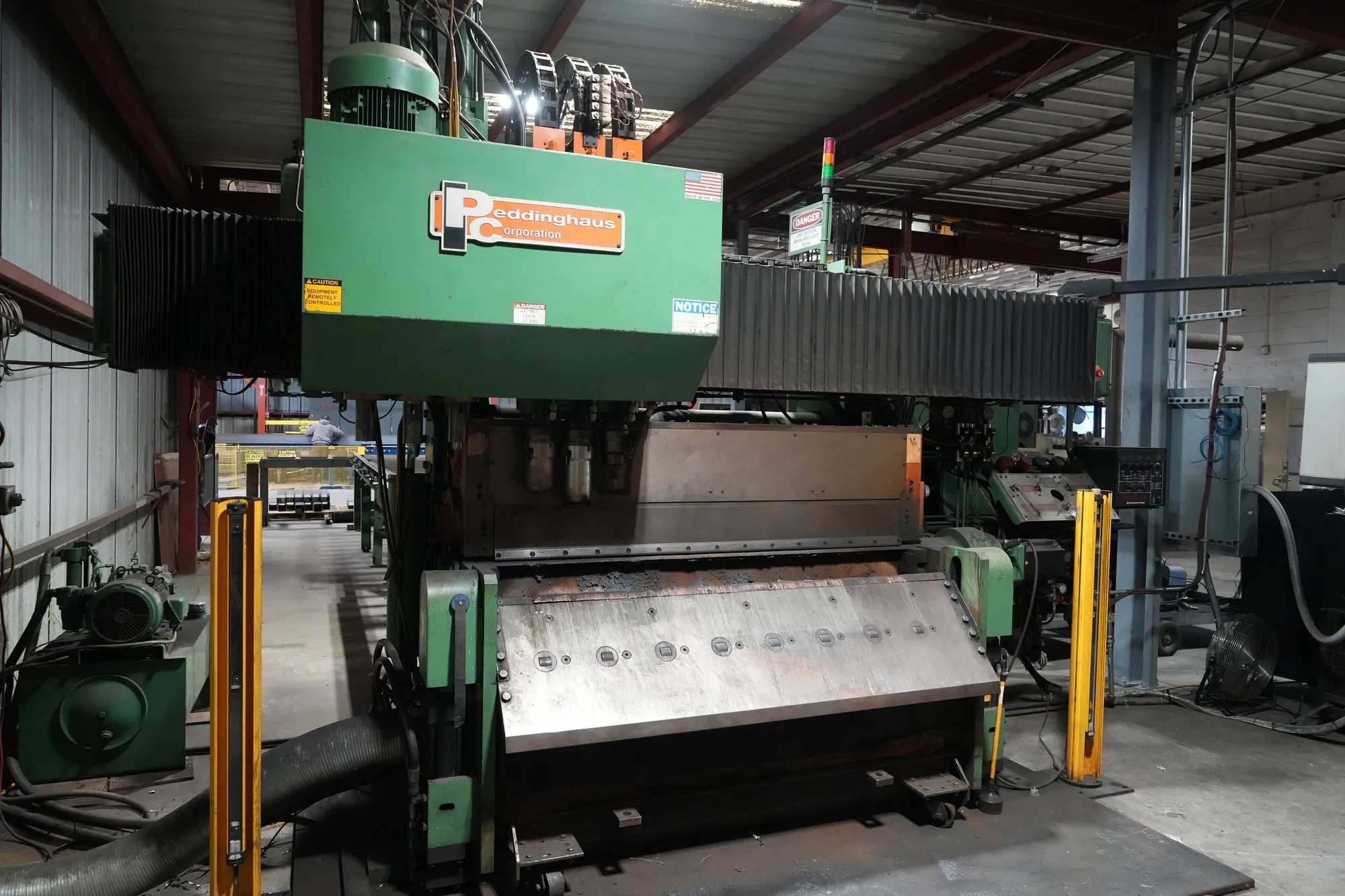

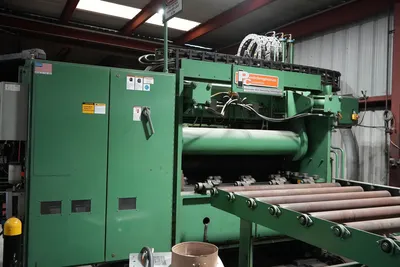

USED 2016 PEDDINGHAUS FDB1500B
Overview
Available Immediately. Please note: sold “as-is, where-is.” Pricing excludes decommissioning, loading, shipping, installation, training, taxes, and all other associated costs
Specs
NOTE: The machine was Rebuilt by Peddinghaus in 2016.
Replaced several components, including:
• New plasma torch head with hoses and harness cables
• New Y‑axis motor
• New horizontal clamp
• Spindle #1 solenoid
• All dust collector filters
• The ShopData nesting software annual license was renewed last month.
• All Peddinghaus‑required safety curtains for certification are installed.
Features:
• Machine remanufactured in 2016 by Peddinghaus
• Fagor CNC control
• Three drill heads
• Hypertherm plasma torch station
• Hypertherm HPR260XD plasma power supply
Specifications:
• Number of Drill Heads: 3
• Spindle 1 (Medium Speed): 75–757 RPM
• Spindle 2 (Slow Speed): 62–623 RPM
• Spindle 3 (Fast Speed): 90–907 RPM
• Maximum Plate Width: 60"
• Minimum Plate Width: 2"
• Maximum Piece Length: 240"
• Minimum Piece Length: 36"
• Passline: 40"
• Maximum Workpiece Weight: 8,250 lbs
• Maximum Drill Size: 2"
• Power per Spindle: 15 HP
• Spindle Travel: 11‑13/16"
• Maximum Plate Thickness: 2"
• Minimum Plate Thickness: 1/4"
• Machine Dimensions: 114" H × 77" W × 221" L
• Approx. Shipping Weight: 22,525 lbs
Equipped With

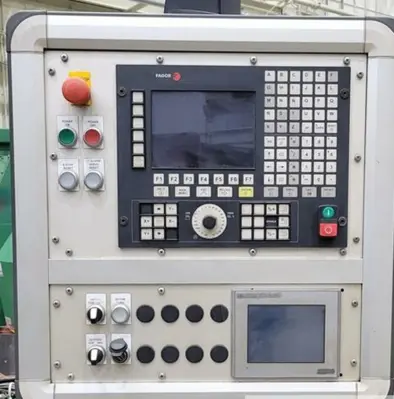

• Fagor CNC control
• Three drill heads
• Signoscript part marker

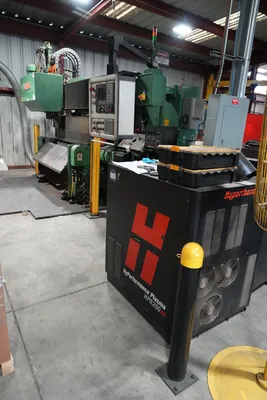

• Hypertherm plasma torch station

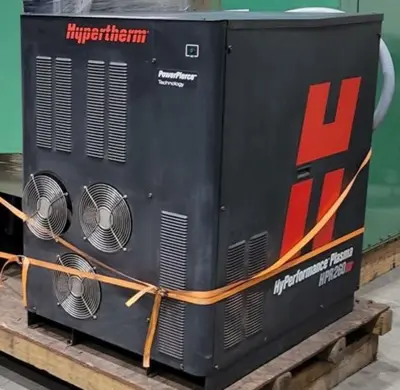

• Hypertherm HPR260XD plasma power supply
• Oxy‑fuel cutting torch

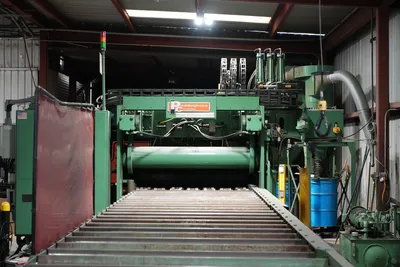

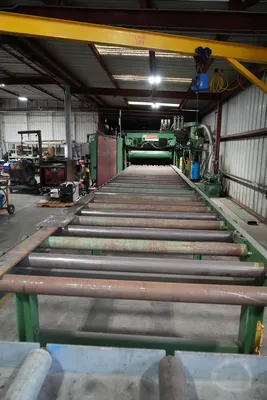

• 20' powered in‑feed conveyor

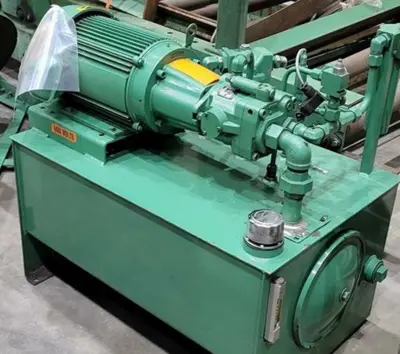

• Hydraulic power unit

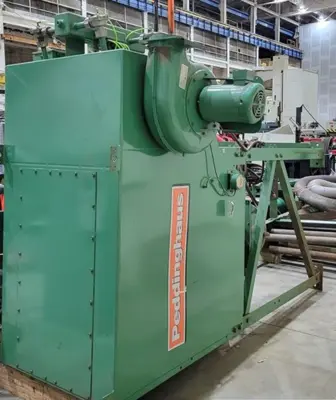

• Dust collector
