USED 2014 FANUC R-2000iB/210F + R-30iA
Overview

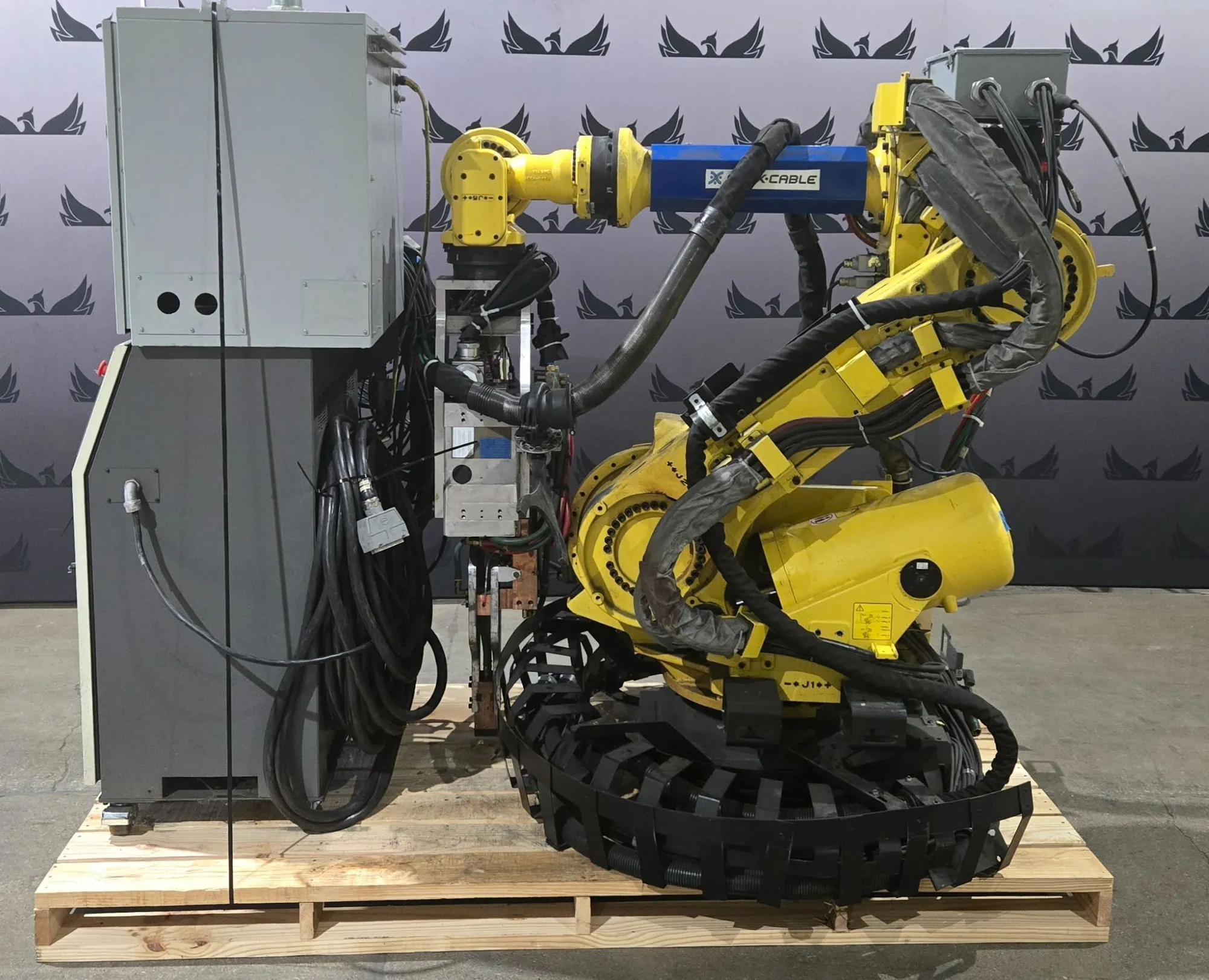

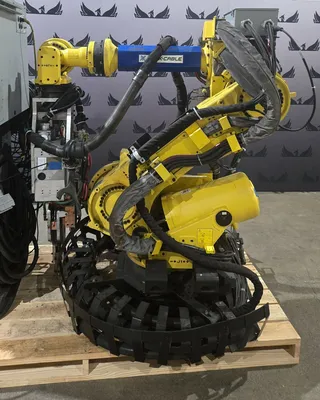

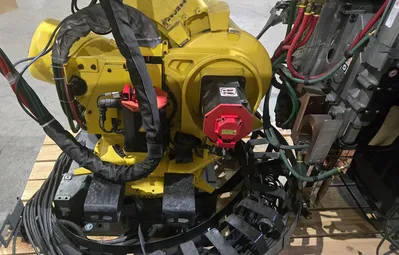

This listing is for a USED FANUC R-2000iB/210F complete system with R-30iA controller, WTC WT6000 MFDC inverter, and teach pendant. This system provides coordinated six-axis robotic motion integrated with medium frequency DC resistance welding capability, supporting high payload welding processes with synchronized motion control, weld power delivery, and operator interaction through the FANUC iPendant interface.
Specs
Manufacturer: FANUC
Robot Model: R-2000iB/210F
Robot Type: 6-Axis Articulated Robot
Condition: USED
Hours: 5756
YOM: 2014
Payload Capacity: 210 kg
Reach: Approx. 2655 mm
Mounting: Floor-mounted base
Robot Weight: 1240 kg

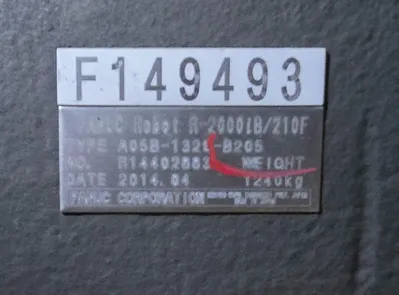

Robot Type Code: A05B-1329-B205
Robot Serial Number: R14402838
Software: V7.7 Spot +

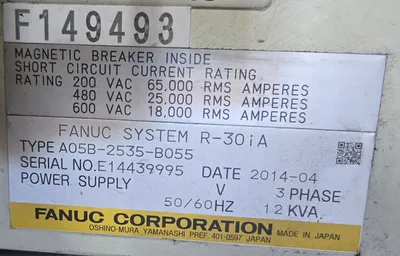

Controller Model: R-30iA
Controller Type: Industrial Robot Controller
Controller Type Number: A05B-2535-B055
Controller Serial Number: E14439995
Controller Phase: 3 Phase
Frequency: 50/60 Hz
Power Rating: 12 kVA
Short Circuit Current Rating:
- 200 VAC: 65,000 RMS Amperes
- 480 VAC: 25,000 RMS Amperes
- 600 VAC: 18,000 RMS Amperes
Weld Controller Manufacturer: WTC
Weld Controller Model: WT6000
Weld Controller Type: Gen 6 MFDC Inverter
Weld Control Method: Medium Frequency DC (MFDC)
Weld Input Voltage: 480 VAC

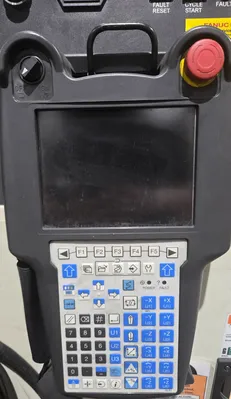

Teach Pendant Model: A05B-2518-C202#SGL
Teach Pendant Type: iPendant
Teach Pendant Serial Number: P11252
Teach Pendant Date: 2014.04
System Components:
- Robot arm

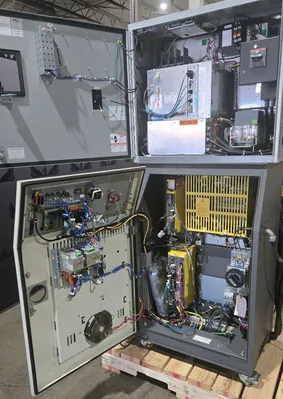

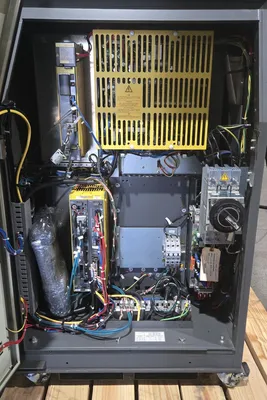

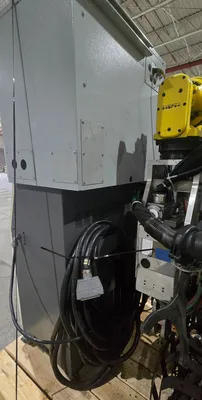

- R-30iA controller cabinet

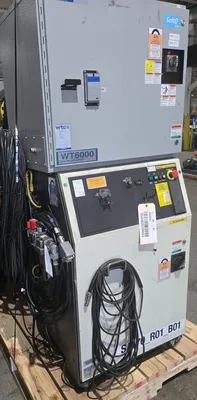

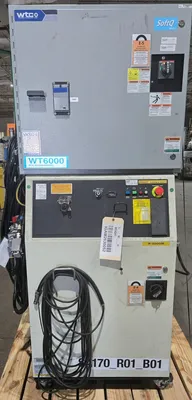

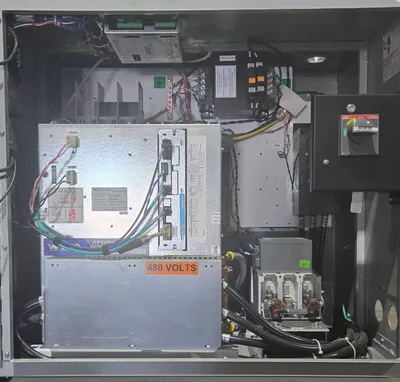

- WTC WT6000 MFDC inverter cabinet
- Teach pendant

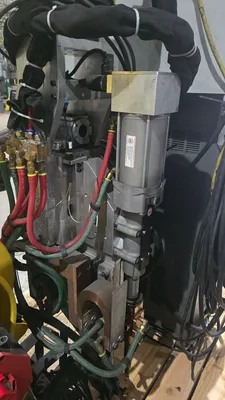

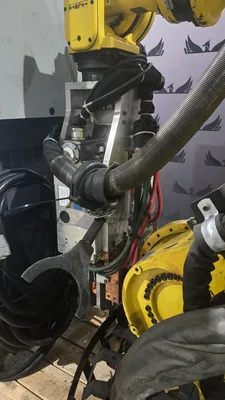

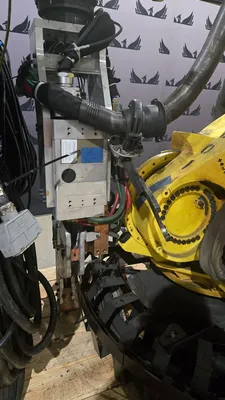

- Resistance weld gun assembly with electrodes

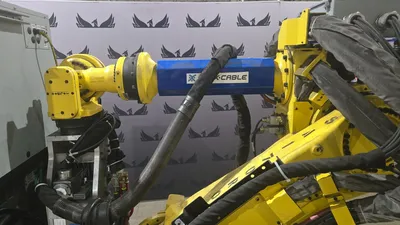

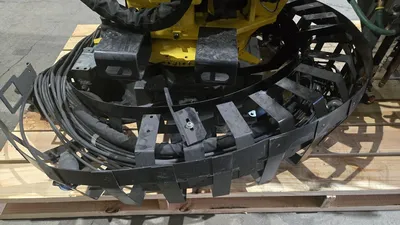

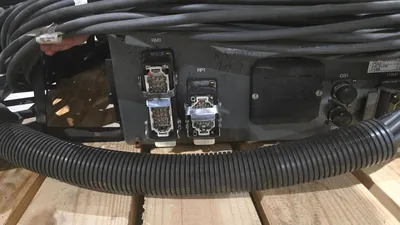

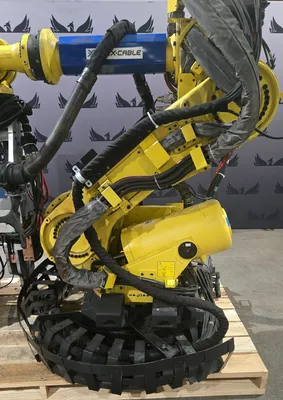

- Weld cabling, hoses, and Flex-Cable dress system
