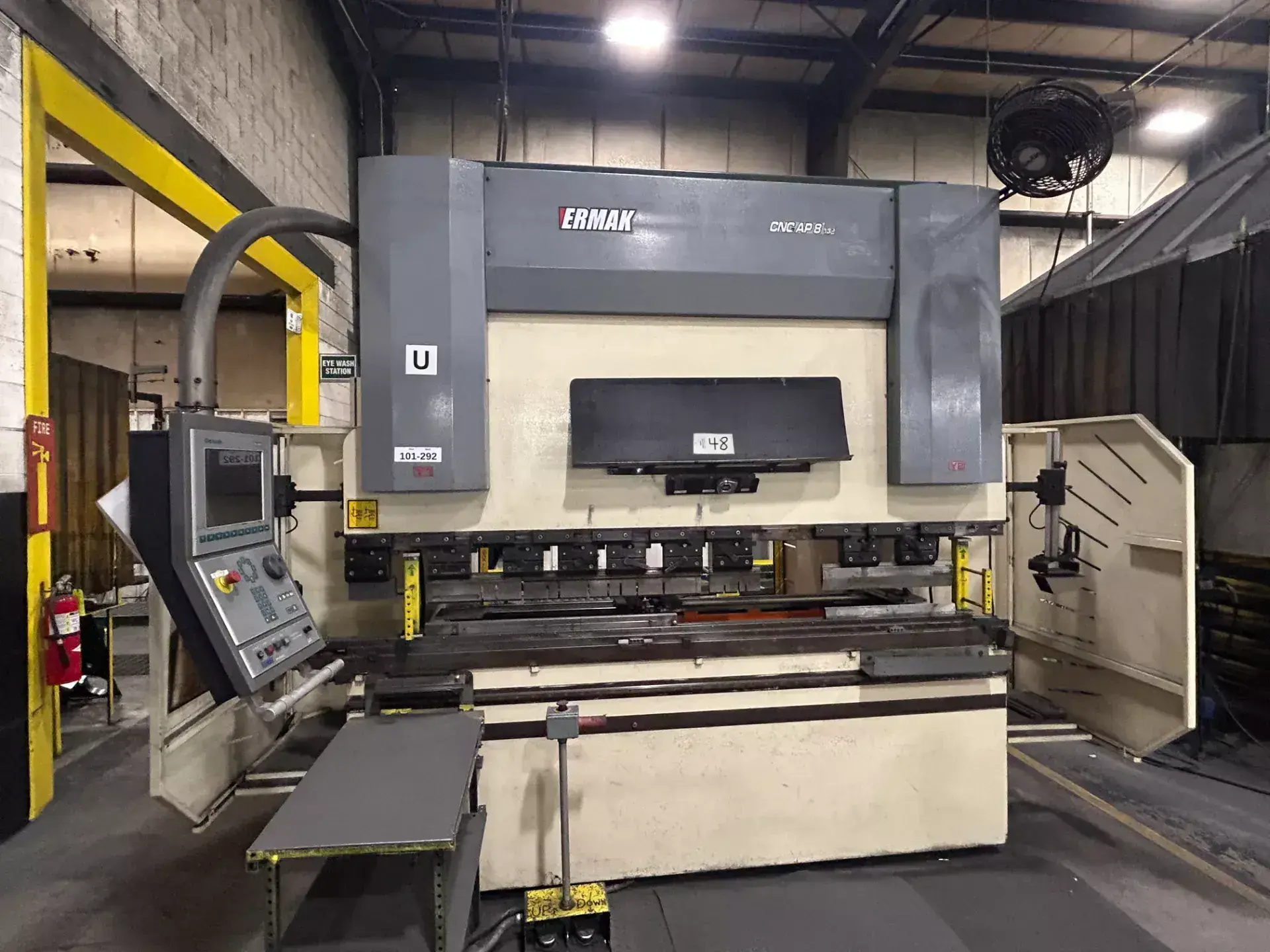

USED 2008 ERMAK CNCAP8X132
Overview
Description
8' ERMAK "CNCAP8X132" 132-TON CNC HYDRAULIC PRESS BRAKE - Dalem DA66W CNC Control w/4-Axis Back Gauge - 96" Overall - 82" Between Housings - 15 HP Motor - 2008
Specifications
| Tonnage | 132 T | 119.749 t |
|---|---|---|
| Type | HYD | HYD |
| Overall Length | 8' | 2.4 m |
| Between Housings | 82" | 2.1 m |
| Stroke | 10.8" | 274.32 mm |
| # Axis | 4 | 4 |
| Control | CNC (Dalem DA66W) | CNC (Dalem DA66W) |
| Dimensions | 77" x 148" x 111" | 77" x 148" x 111" |
| Weight | 15545 LBS | 15545 LBS |

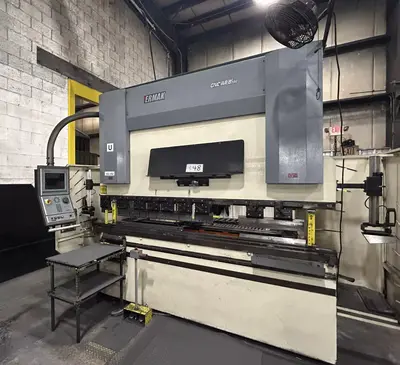

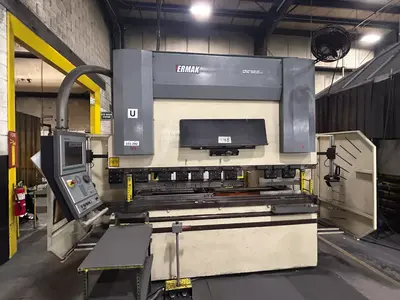

8' ERMAK 132-TON CNC HYDRAULIC PRESS BRAKE

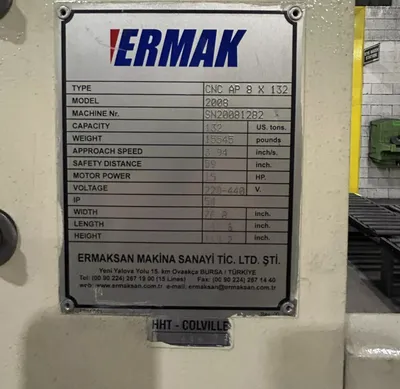

New 2008, Serial No SN20081282 Model CNCAP8X132
Equipped With:

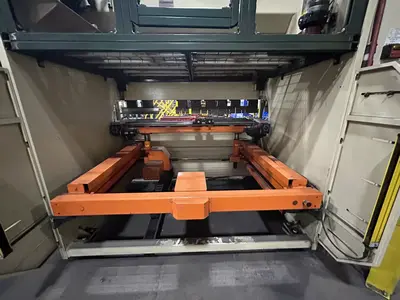

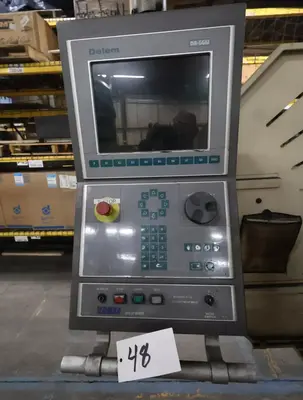

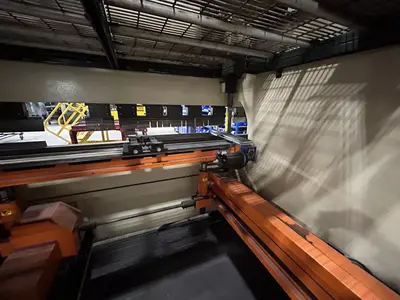

Dalem DA66W CNC Control w/4-AXIS Back Gauge
Laser Safe Light Guard

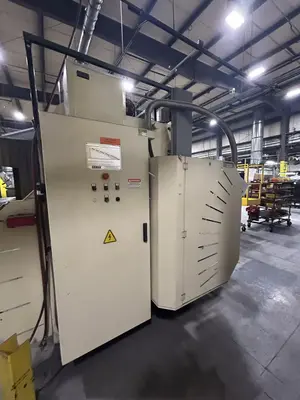

Amerex Fire Suppression Control Panel
Fiesler Electronik Light Curtain

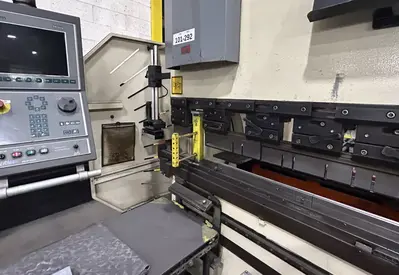

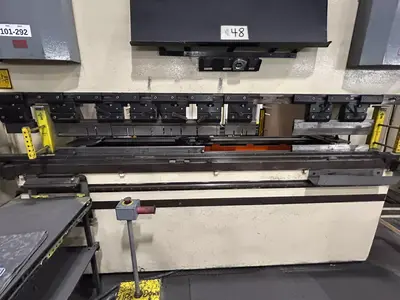

Amada Promecam Type Tool Holders
Pedestal Control
CATALOG SPECIFICATIONS:
Tonnage Capacity 132 TONS
Overall Bending Length 96"
Distance Between Housings 82"
Open Height 21.6"
Stroke Of Ram 10.8"
Throat Depth 15.75"
Approach Speed, Rated 3.94 IPS
Motor, Horsepower 15 HP
Electrical System 230-460/3/60
Overall Dimensions, L x W 148" x 77"
Overall Height 111"
Weight, Approximately 15545 LBS
F.O.B. ON WAY IN
