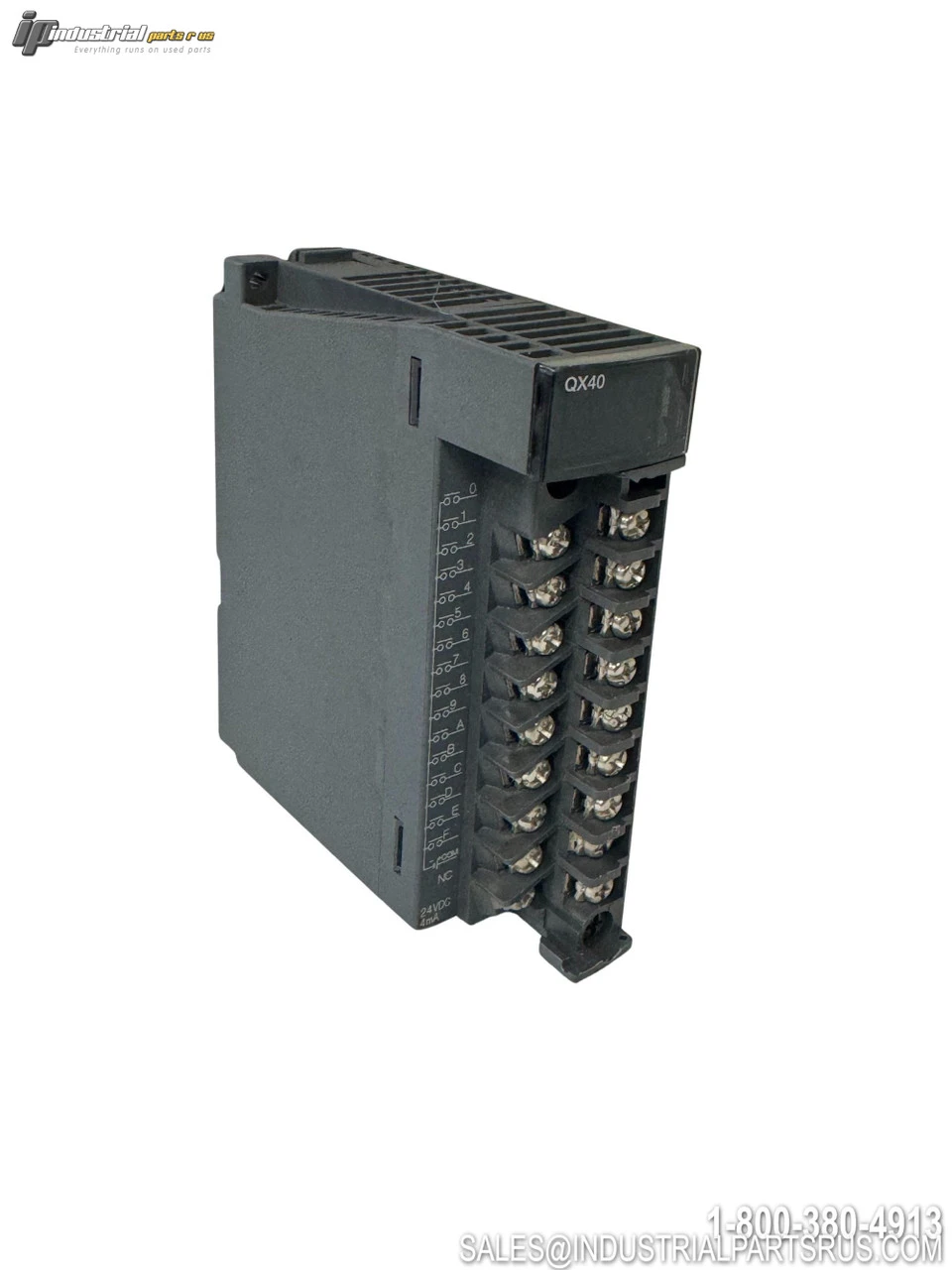

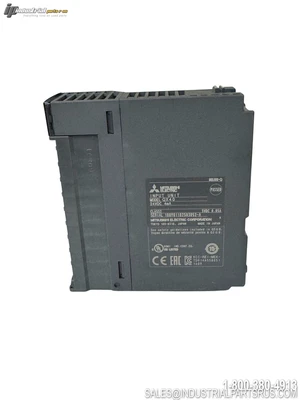

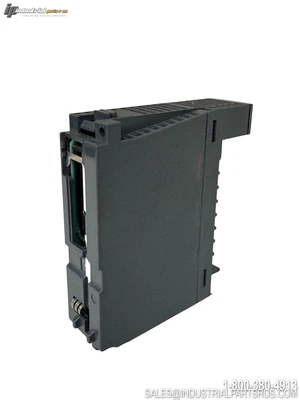

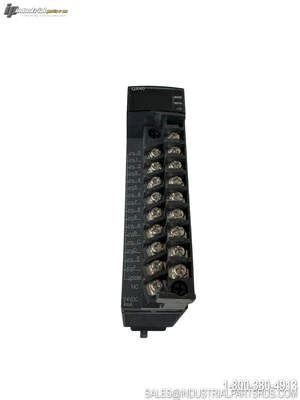

USED OMRON QX40

The Mitsubishi Electric QX40 is a 16-point DC digital input module designed for the MELSEC-Q Series programmable logic controller platform. It accepts 24V DC on/off signals from external devices such as sensors, switches, and proximity inputs, converting them into internal PLC logic for machine control applications. The module features optical (photocoupler) isolation on all input points, a shared 16-point common in sink-type configuration, per-point LED status indicators, and an 18-point removable screw-terminal block for secure industrial wiring.
Specification
Value
Brand
Mitsubishi Electric
Model / Part Number
QX40
Series / Platform
MELSEC-Q (QnU)
Product Type
DC Digital Input Module
Input Points
16
Rated Input Voltage
24VDC (+20% / -15%, ripple within 5%)
Rated Input Current
Approx. 4mA per point
Operating Voltage Range
20.4 – 28.8VDC
Input Type
DC Input, Sink Type (Positive Common)
Common Configuration
16 points / 1 common
ON Voltage / ON Current
19V or higher / 3mA or higher
OFF Voltage / OFF Current
11V or lower / 1.7mA or lower
Input Impedance
Approx. 5.6 kΩ
Isolation Method
Photocoupler (optical isolation)
Dielectric Withstand Voltage
560VAC rms / 3 cycles (altitude 2000m)
Insulation Resistance
10MΩ or more
Input Response Time
1 / 5 / 10 / 20 / 70 ms (selectable)
Occupied I/O Points
16
Internal Current Consumption
0.05A (50mA at 5VDC)
Wiring Method
18-point removable screw-terminal block
Status Indication
LED per input point
Protection Degree
IP2X
Mounting
MELSEC-Q base rack slot
Dimensions (W × H × D)
27.4mm × 98mm × 90mm
Weight
0.16 kg
Certifications
CE, UL/cUL
Compatible Programming Software
GX Works2, GX Developer
We warranty all items for 30 days from date of purchase.
