USED 2003 HOLZ-HER SPRINT 1320-2

Lot Closes:: 7/31/2026 8:05:00 AM PT

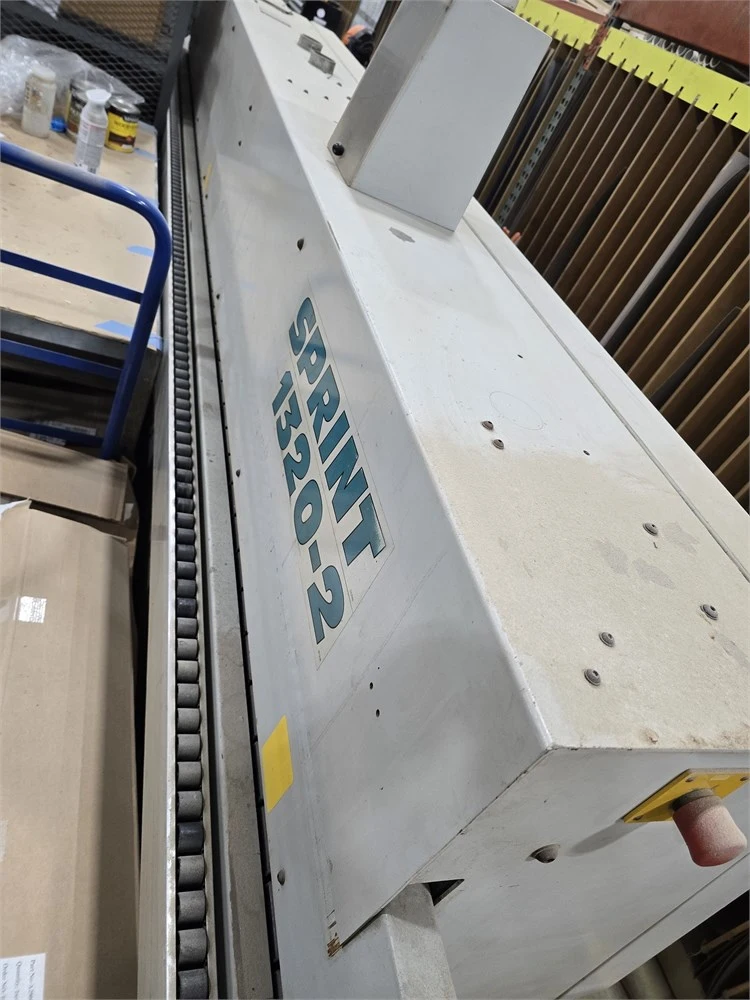

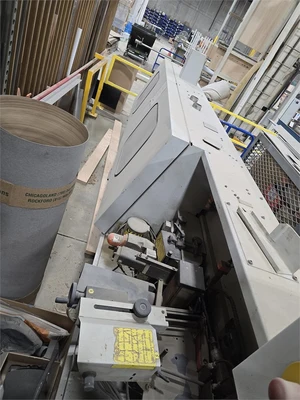

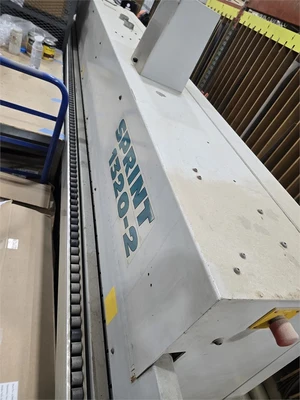

Holz-Her "Sprint 1320-2" Edgebander
0.3 - 15 mm Thickness edgebanding capability (3 mm coil or 15 mm max. strip); 6 - 50 mm panel thickness, workpiece width min. of 60 mm; workpiece Length min. 180 mm; Feed speed 12.5 MPM (41 FPM).

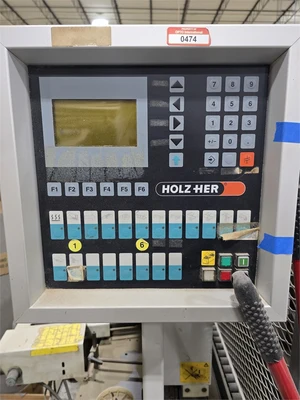

Controller
Edgebanding infeed table
Infeed fence
1903 - Edgestrip Magazine; (1) Universal magazine for solid edges, strips, and coiled material.  Utilizes motion detector to ensure accurate, trouble-free positioning of edge material; exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety, 3° approach angle allows easy feeding of large wood edges.
1906 - Gluing Station - Cartridge System.
1913 - Servo controlled pressure section with (1) large driven roller & (2) cantered idle rollers.
1918 - Front & rear end trim unit (0.35 kW - 9,000 RPM motor each) 0° - 10° bevel,"PCS" Pneumatic Changeover from flush to bevel from control panel.
1823 - Top & bottom flush trim unit (0.6 kW - 300 Cy HF motors 18,000 RPM Motor ea.)
1824 - Top & Bottom combination flush/chamfer & radius unit (0.6 kW - 18,000 RPM each motor).
1929 - Top & bottom PVC scrape station.
1983 - 1-Motor Corner Rounding unit: For edges up to 3 mm edge thickness.
1964 - Top & Bottom glue scraper station
1944 - Top & bottom jump buffing station
Sound enclosure
Outboard roller support
