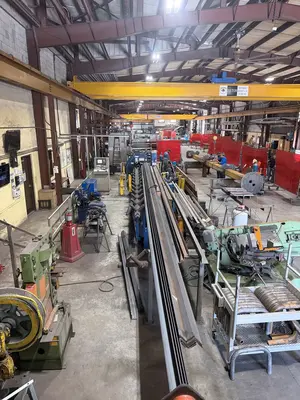

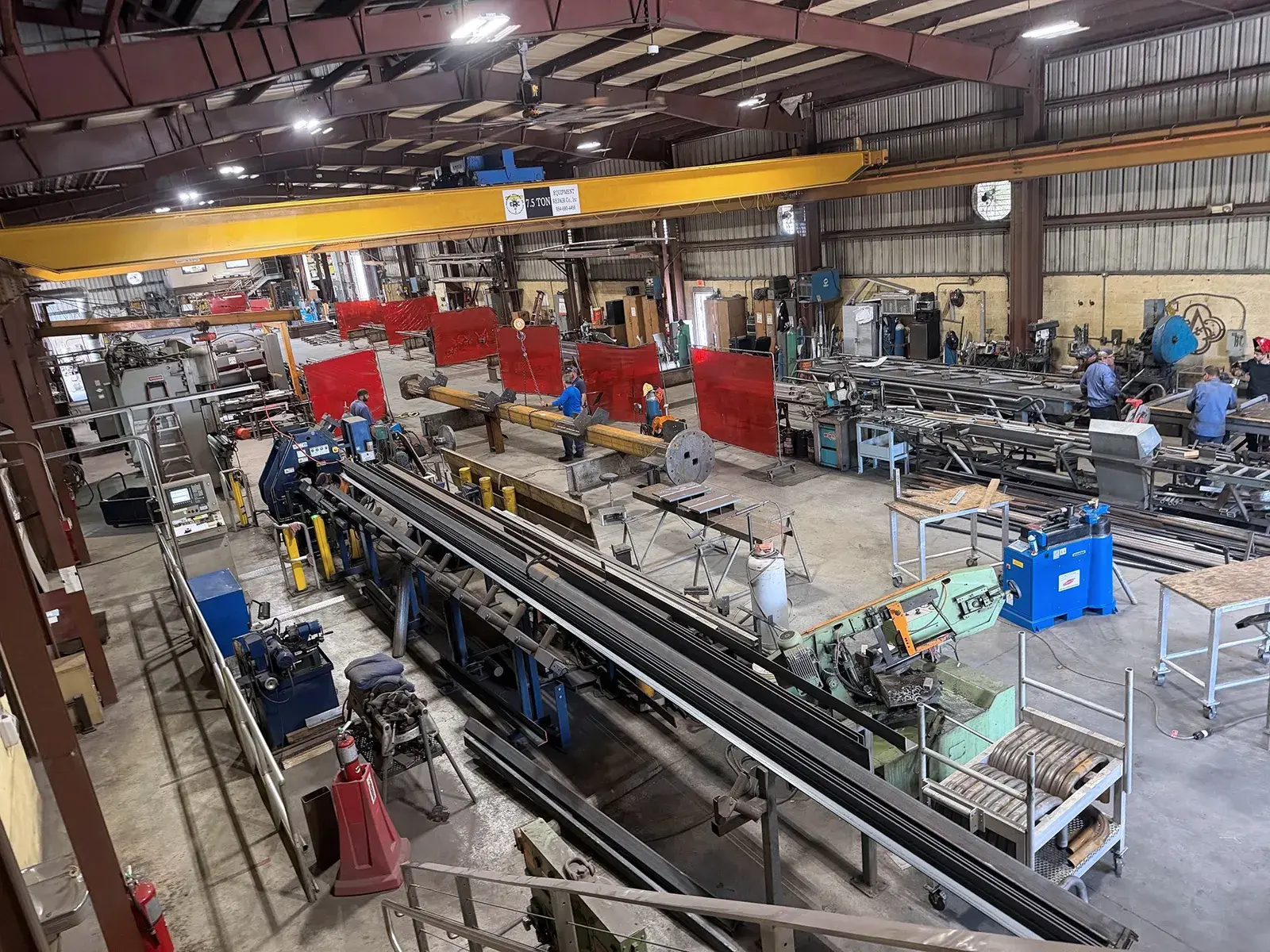

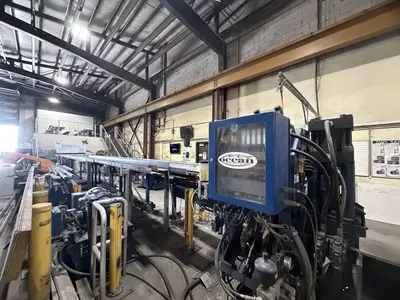

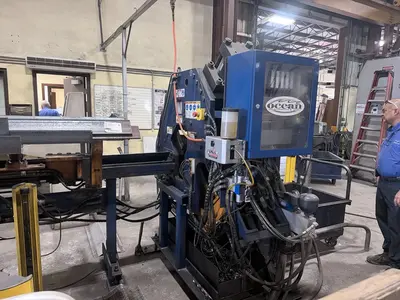

USED 2015 Peddinghaus Ocean Clipper Angle Line
Overview
Ocean Clipper Angle Line (2015) is a compact automated CNC steel processing system for structural fabrication shops. It rapidly punches, shears, and processes clip angles, bracing angles, flat bars, gusset plates, and ledger angles, delivering high-speed accuracy and efficiency for modern steel construction workflows. Ideal for heavy-duty industrial production.
Specs
Angle Sizes:
Max angle size: 6 x 6 x 5/8" (150 x 150 x 15 mm)
Minimum angle size: 1-1/2 x 1-1/2 x 1/8" (40 x 40 x 4 mm)
Drill One Leg - Round Hole Only:
Minimum Hole Diameter: 5/16" (8 mm)
Maximum Hole Diameter: 1-9/16" (40 mm)
Minimum Drill Gauge: 0.5" (12 mm)
Maximum Drill Gauge: 5.5" (140 mm)
Drill Feed Rate: 2-10 inch/min (50-250 mm/min)
Punch One Leg - Slots, holes, shapes etc.:
Punching Tonnage: 75 Tons US (68 Metric Tons)
Maximum Punch Size: 1-1/4" (32 mm) diameter
Punch Cycle Time: 2 seconds

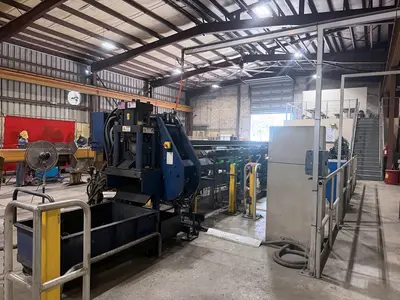

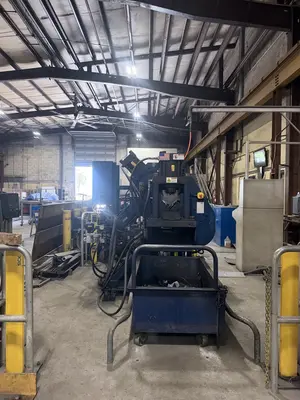

Shear - Cut to Length:
Shear Tonnage: 100 Tons US (91 Metric Tons)
Minimum Drop: 8.125" (206 mm
Shear Cycle Time: 5 seconds
Slug Size: 1/2" (12 mm)
Measurements & General:
In-feed Speed (X-Axis): 61 FPM (18.5 meters/min), max
Maximum X Direction Stroke: 50" (1270 mm)
Y Axis Travel: 12" (300 mm)
Z Axis Travel: 5" (127 mm)
Machine Pass Line: 45" (1143 mm)
In Feed Conveyor: 26'
Power Requirements: 460V, 3 Phase
Overall Dimensions: 34' x 8' x 7'
Overall Weight: 9,000 lbs
Equipped With

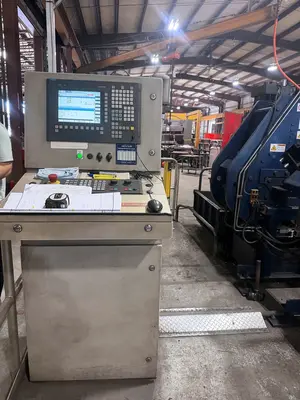

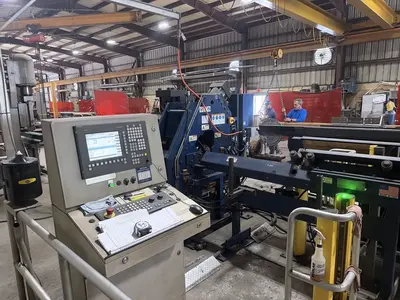

Siemens 840DI CNC Control
Hydraulic Punch Assembly
Hydraulic Drill Assembly
Hydraulic Shear Assembly
Shuttle Clamp Positioning System

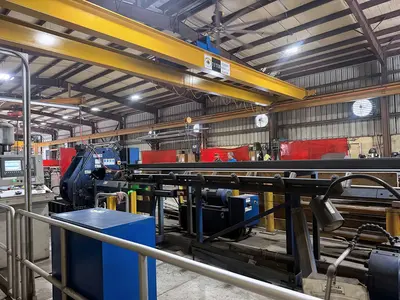

26 ft In‑Feed Conveyor System

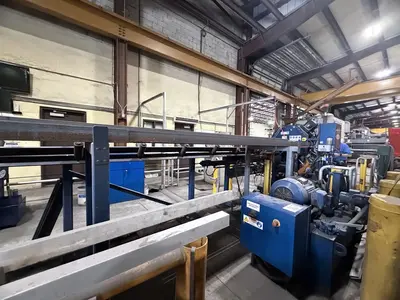

Standalone Hydraulic Power Unit
