USED WEBSTER & BENNETT EV-72
Overview

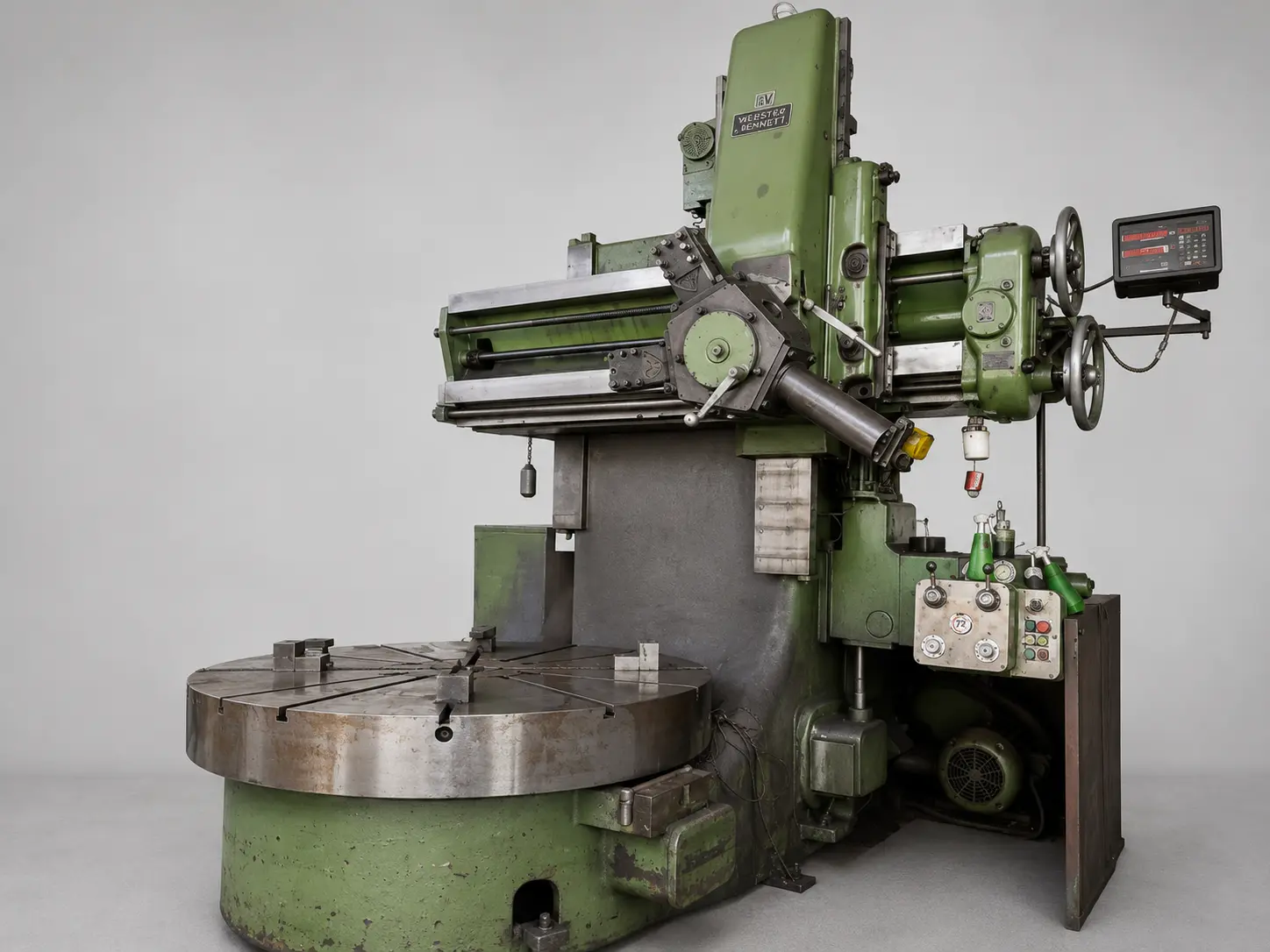

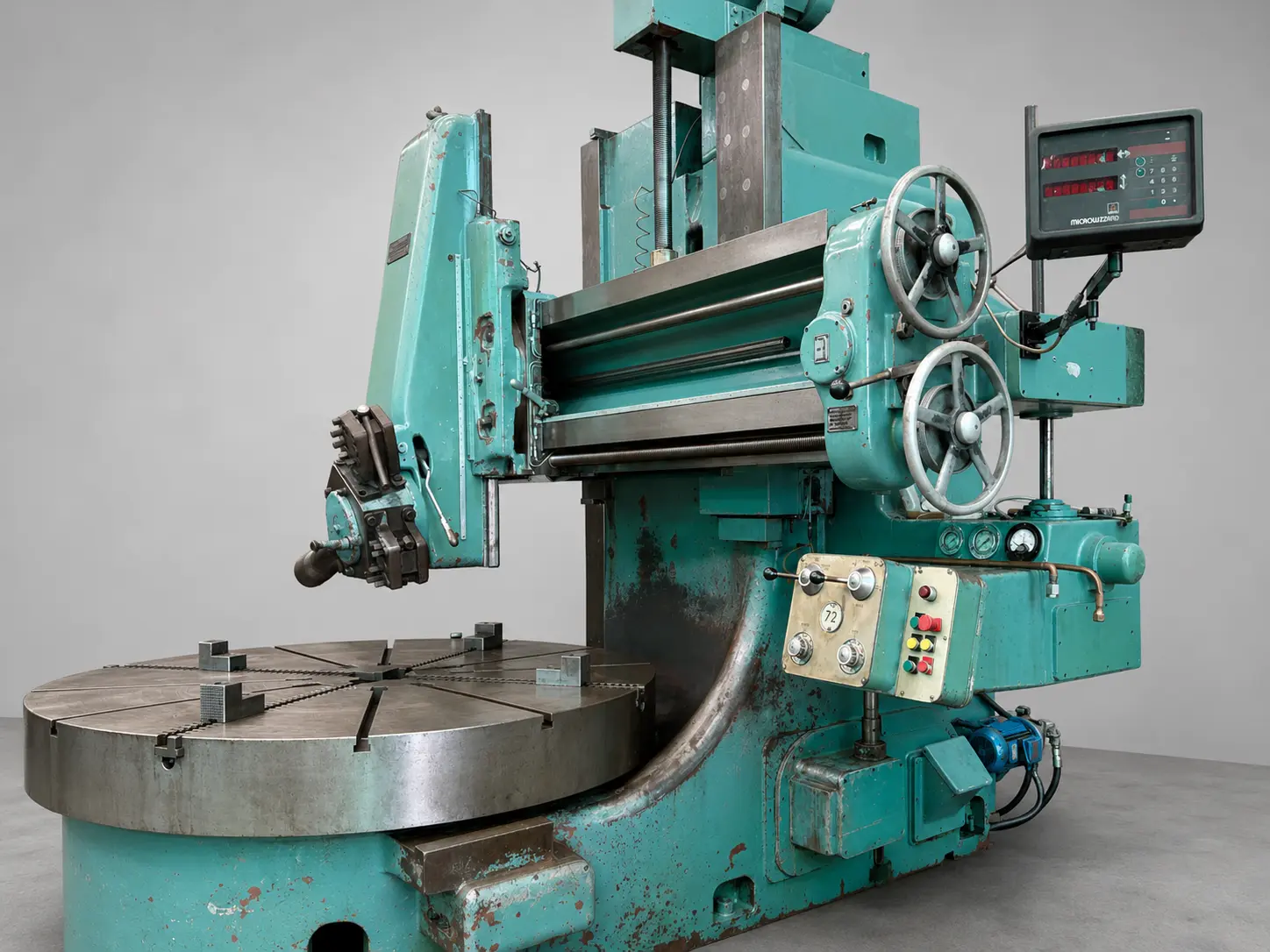

Heavy-duty Webster & Bennett EV-72 Vertical Borer, British built and featuring the desirable extended-height elevating bridge configuration, providing substantially greater vertical capacity than a standard 72" machine.
This is a particularly versatile large-capacity vertical borer, well suited to machining large and tall components where both diameter and increased working height are required.
The machine is equipped with a 72" (1829 mm) diameter table and approximately 84" (2134 mm) maximum swing. The elevating bridge allows the cross rail and tooling assembly to be positioned to accommodate workpieces of varying heights, with this machine having the extended-height column arrangement.
Fitted with a side-mounted turret/tool head, power feeds, rapid traverse, large manual control handwheels and digital readout, together with a substantial heavy-duty cast construction typical of Webster & Bennett machines.
The machine presents in good, honestly used condition for its age, with the table, slideways and major working surfaces presenting particularly well.
Key Features: 72" diameter table • Approx. 84" maximum swing • Extended-height model • Elevating bridge/cross rail • Heavy-duty vertical turning and boring capacity • Turret/tool head • Digital readout • British manufactured.
Comes with:
Chuck Jaws
Some tools
DRO
Machine can be seen running in our Melbourne facility.
Specs
Table (Chuck) Diameter: 72 inches (~1,828 mm) with 4 independent jaws.
Maximum Swing: 84 inches (~2,133 mm to 2.2 meters) clear of the column.
Under the Bridge: Adjustable up to 1.5 meters vertical clearance.
Tooling Head: Single pentagon (5-sided) manual turret head on the cross-rail.
Estimated Weight: Approximately 22 to 26 metric tonnes
Table Diameter: 72" / 1,829 mm
Maximum Swing: 84" / 2,134 mm
Maximum Height Under Elevating Bridge: 60" / 1,524 mm
Maximum Height Under Turret Face: 71" / 1,803 mm
Bridge Vertical Travel: 24" / 610 mm
Turret Slide Vertical Travel: 38" / 965 mm
Table Speeds: 3.8–83 rpm, 12 speeds
If relying on a particular measurement please ask for verification as we often just quote from published descriptions.
