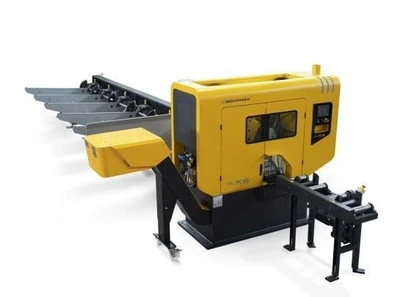

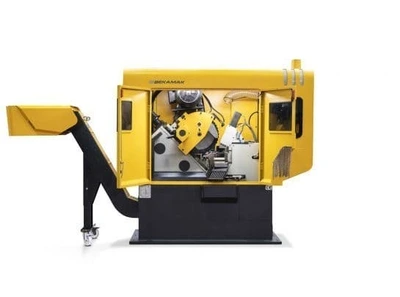

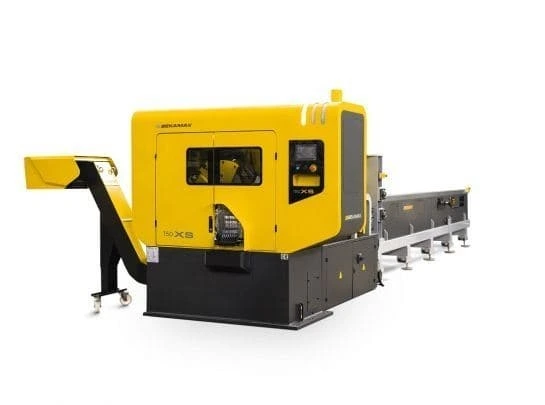

NEW 2026 BEKA-MAK BMDO-150 XS Circular Saw
Overview
2026 BEKA-MAK Model 150 XS TCT 6.3" Circ. Saw, Full Auto w/ Servo Feed System, 6-meter table
Mass production in continuous operation is done by BMDO 150 XS when producing cut-off pieces of steel and non-ferrous metals with a material cross-section up to a diameter of 150 mm. BMDO 150 XS is designed to be used with TCT circular saw blade in order to cut solid bars in high speed and excellent precise. It is also suitable for HSS blades to cut tubes. With the Standard 800mm stroke servo feeding and 6 meters automatic loader. BMDO 150 XS is perfect for large-scale production of solid bars.
Specs
Saw Capacities
Round mm 20-160 0.79"-6.3"
Square mm 20-120 0.79"-6.3"
Main Motor kW 15 20.12 HP
Hydraulic Motor kW 2,2 2.95 HP
Coolant Motor kW 0,2 0.27 HP
Bow Servo Motor kW 2 2.68 HP
Feeder Servo Motor kW 2 2.68 HP
Chip Conveyor Motor kW 0,25 0.34 HP
Saw Blade Speed m/min 40-200
Saw Blade Dimension mm Ø480X T2,6 X 2,27T 18.9" x
Stroke Length mm 800 31.5"
Remnant Part mm 60 2.36"
Control Panel - Omron Colour Touch Screen
Cutting Programme - 30 Program 50 Steps
Power Supply Voltage - Ac400V, 3 Ph, 50/60 Hz
Air Pressure Bar 5
Loader Capacities
Stroke 31.5"
Round Square Tube
Cutting Capacity 0° 20 - 153 mm - 40 - 110 mm
Main Drive Motor 15 kW 20HP
Hydraulic Motor 2,2 kW
Coolant Motor 0,2 kW
Feeder Servo Motor 2 kW
Head Servo Motor 2 kW
Chip Conveyor Motor 0,25 kW

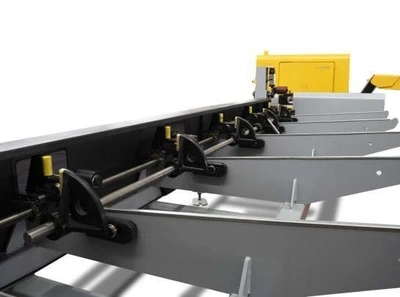

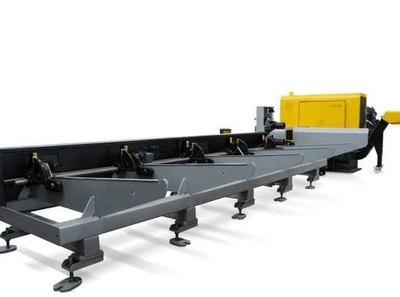

Maximum Stock Table Loading Capacity,
Round Bars (L x D) 6.000 x 160 mm x 10 bars
Incline Loader Dims (L x W x H) 6300 x 2300 x 1400 mm
Blade OD x T x t Ø460 x T2,7 x 2,27t mm
Bore Dimension 40 mm
Pin Holes 2/16/80
Saw Blade Speed 40-280 m/min
Power Supply Voltage AC400V, 3 PH, 50/60 HZ
Power Requirement 21,65 kW
Air Pressure 5 bar / 0,5 mPa
Air Flow Rate 245 lt/dk
Hydraulic Tank Capacity 70 lt
Oil Mist Tank Capacity 1,5 lt
Index Mechanism Servo Sürücü
Material Index AC Servo Motor & Vidalı Mil
Stroke 800 mm 31.5
Feeding Length 10-9999 mm
Feeding Speed 0-750 mm/s
Minimumend Trimming Length 10 mm
Remnant Length 60 mm
Table Height 900 mm
Machine Dims (W x L x H) 3400 x 2400 x 2750 mm
Machine Weight 3680 kg
Equipped With
STANDARD FEATURES
Hydraulic Top Clamping
ILC Microspray Coolant
Hydraulic Vice
Inverter
Control Panel
Saw Blade Brush
Cover Switch
Heavy Duty Gearbox
OPTIONAL FEATURES
Air Filter
6 Mt Material Roller Table
