NEW 2026 BEKA-MAK BMSO 350GA

Illinois, United States
602Listings|54Followers
Overview
Horizontal Band Saws

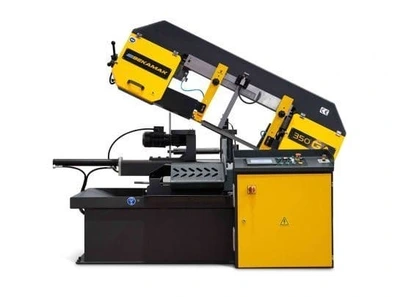

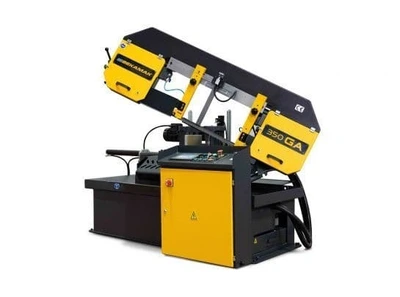

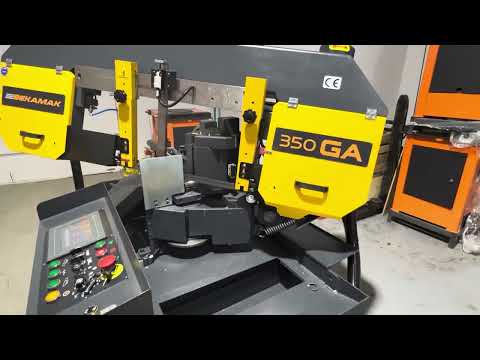

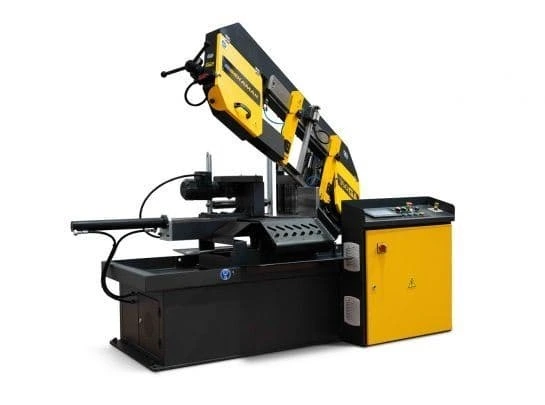

2026 BEKA-MAK Model BMSO 350GA, Round Cap 13.78, Fully Auto., One-Side Miter, PLC/HMI Interface
This fully automatic horizontal bandsaw comes with Motorized feeder system
comes with touch screen numeric controller
Vise jaws with programmable rollers accurately feed the material through.
Programmable for up to 10 different jobs, each with distinct cutting lengths and quantities.
Unlimited feeding stroke, unlike the shuttle vise system, thanks to the roller feeder concept.
0-45° swiveling head
Easy swing, heavy duty horizontal saw head
this horizontal metal bandsaw comes with Automatic head up lift
automatic part height measuring system prevents the head from moving all the way up when cutting small parts, thereby speeding up production in these bandsaws for metal.
this metal band saw comes with full stroking hydraulic vise
comes with blade breakage switch and blade tension indicator
heavy duty direct drive gearbox – no belts/pulleys
this metal cutting saw comes with inverter drive, allows infinite blade speed adjustment

Our BMSO 350 GA model is a jointed, PLC and HMI equipped, fully automatic band sawing machine independent of the support point. Our machine has the feature of straight and angled cutting of solid and pipe type materials and can cut in desired quantity and length. The machine performs the material feeding process with encoder precision thanks to the rollers in the hydraulically closing vice jaws. Cutting process is performed by writing the desired cutting list thanks to the easy-to-use user interface.

Founded as a family company in 1984, BEKAMAK is the pioneering company, opening up the sawing machines sector in Turkey to global market. Beginning its first export to Germany in 1991, BEKAMAK is now represented in nearly 80 countries by 60 distributors around the world, mainly in Europe, Russia and the United States. Our circular saw and bandsawing machines, which operate with high efficiency in a wide range of products, are also the preference of Turkey’s leading steel producers.

BEKAMAK, operating in 10.500m² establishment with its 210 qualified employees, continues to contribute to the steel industry with its philosophy of continues development and innovation. We are proud to announce that our official Research and Development Department was established in 2018.

Specs
Rect-Cap (H)
13.78"
350.01 mm
Rect-Cap (W)
15.75"
400.05 mm
Rounds-Cap
13.78"
350.01 mm
Square-Cap
13.78"
350.01 mm
Power
3 hp
2.2 kW
Type (Auto, Manual, Semi)
Auto
Auto
Blade Width
1.34"
34.036 mm
Blade Thickness
0.043"
1.0922 mm
Blade Length
163.78"
4,160 mm
Control
CNC (Omron PLC)
CNC (Omron PLC)
Dimensions
96.46"L x 36.22"W x 79.53H
96.46"L x 36.22"W x 79.53H
Weight
2,314.85 lbs
2,314.85 lbs


Cutting Capacity Round Rectangle Square
0° 13.78" 15.75" x 13.78" 13.78"
+30° 12.6" 15.75" x 9.06" 13.78"
+45° 12.6" 10.24" x 13.78" 11.02"
Main Drive Motor 2.95 HP
Hydraulic Motor 0.5 HP
Coolant Pump 1.61 HP
Feeding Motor 0.34 HP
Blade Speed 15-120 m/min
Blade Dimensions 163.78" x 1.34" x 0.043"
Working Height 29.92
Weight 2,314.85 LBS
Length 96.46"
Width 36.22"
Height 79.53"

Equipped With

STANDARD FEATURES
47.2" Roller Table
Saw Blade Brush
Heavy Duty Gearbox
Hydraulıc Vıce
Hydromechnic Blade Tension
Security Switch
Inverter
Control Panel
Mechanic Top Clamping
Coolant Pump
Height Adjustment Switch
Saw Blade 1.34 "

OPTIONAL FEATURES
Microspray Device
Chip Conveyor
118.1" Material Roller Table
