USED ROLL-IN ROLL-IN EF1459 ROLL IN VERTICAL BANDSAW

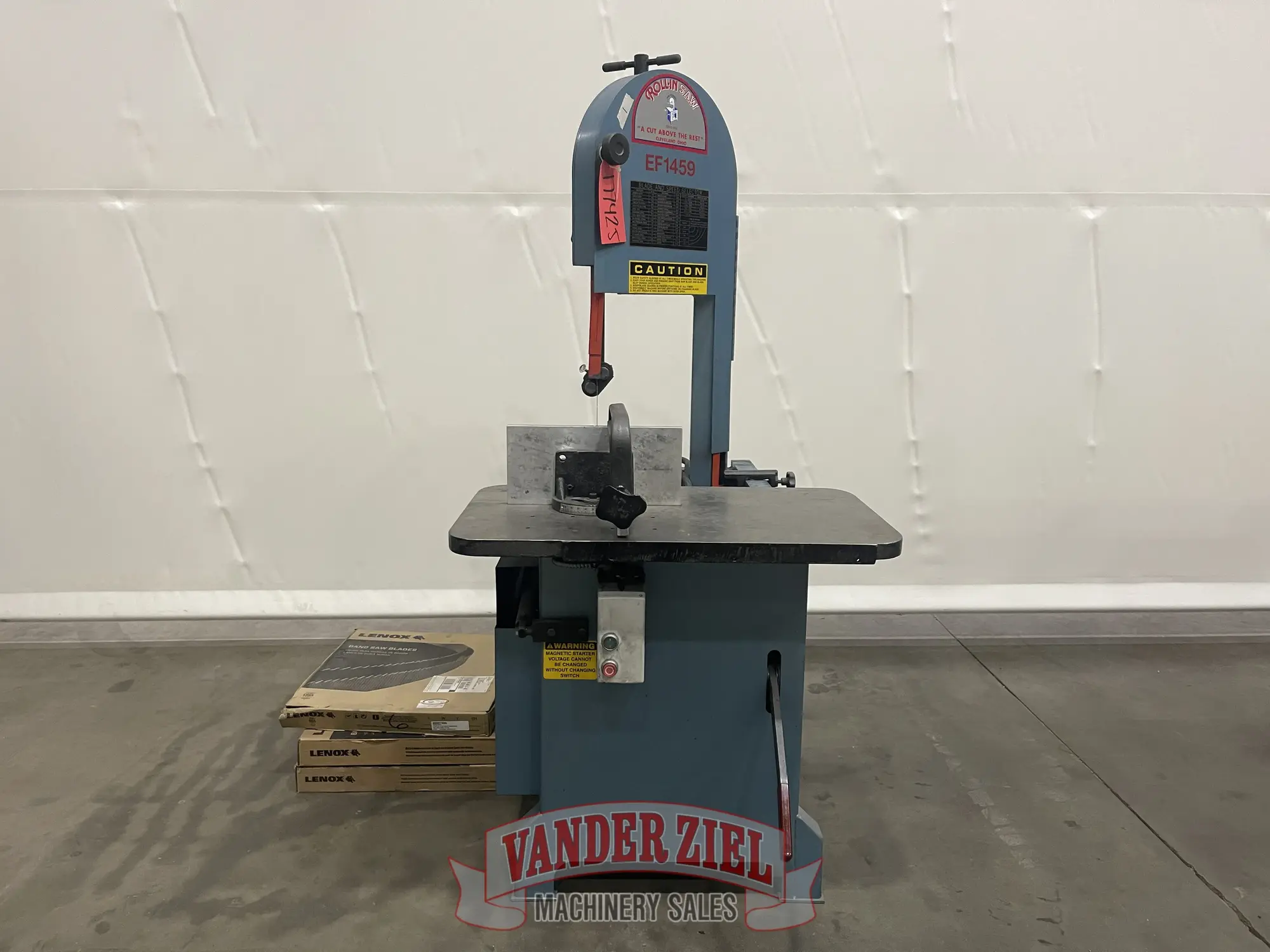

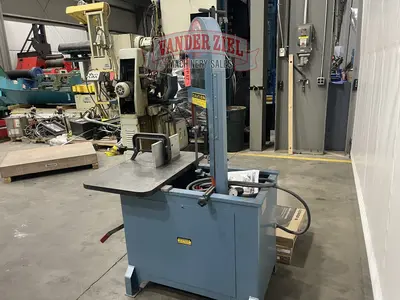

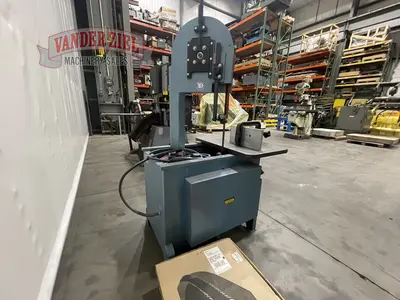

Roll-In EF1459 Roll In Vertical Bandsaw
Asset # 17742J

Blade Travel: 9"

Cutting Capacity at 90°:

Round: 8-1/2"

Rectangular: 14-1/2" x 8-1/2"

Capacity Under Guides (Height): 14-1/2"

Throat (Width): 8-3/4"

Table Size: 18-1/2" x 30"

Table Height (from floor): 30"

Blade Speeds: 70, 140, 270, 525 FPM

Blade Size (Included): 3/4" x 10′ x .035", 8/12 TPI

Acceptable Blade Widths: 1/4" to 3/4" (1" optional with guide rollers)

Motor: 1 HP

Voltage Options:

110V / 220V (Single Phase)

220V / 440V (Three Phase)

Overall Dimensions (Approx.): 30" W x 40" L x 66" H

Shipping Dimensions: 33" x 48" x 72"

Shipping Weight: 650-700 lbs

Feed System: Gravity-feed with hydraulic control

Guide Rollers: Standard (1" optional)

Pin Spacing: 4 / 12 / 64
