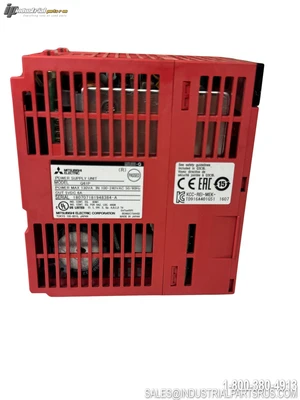

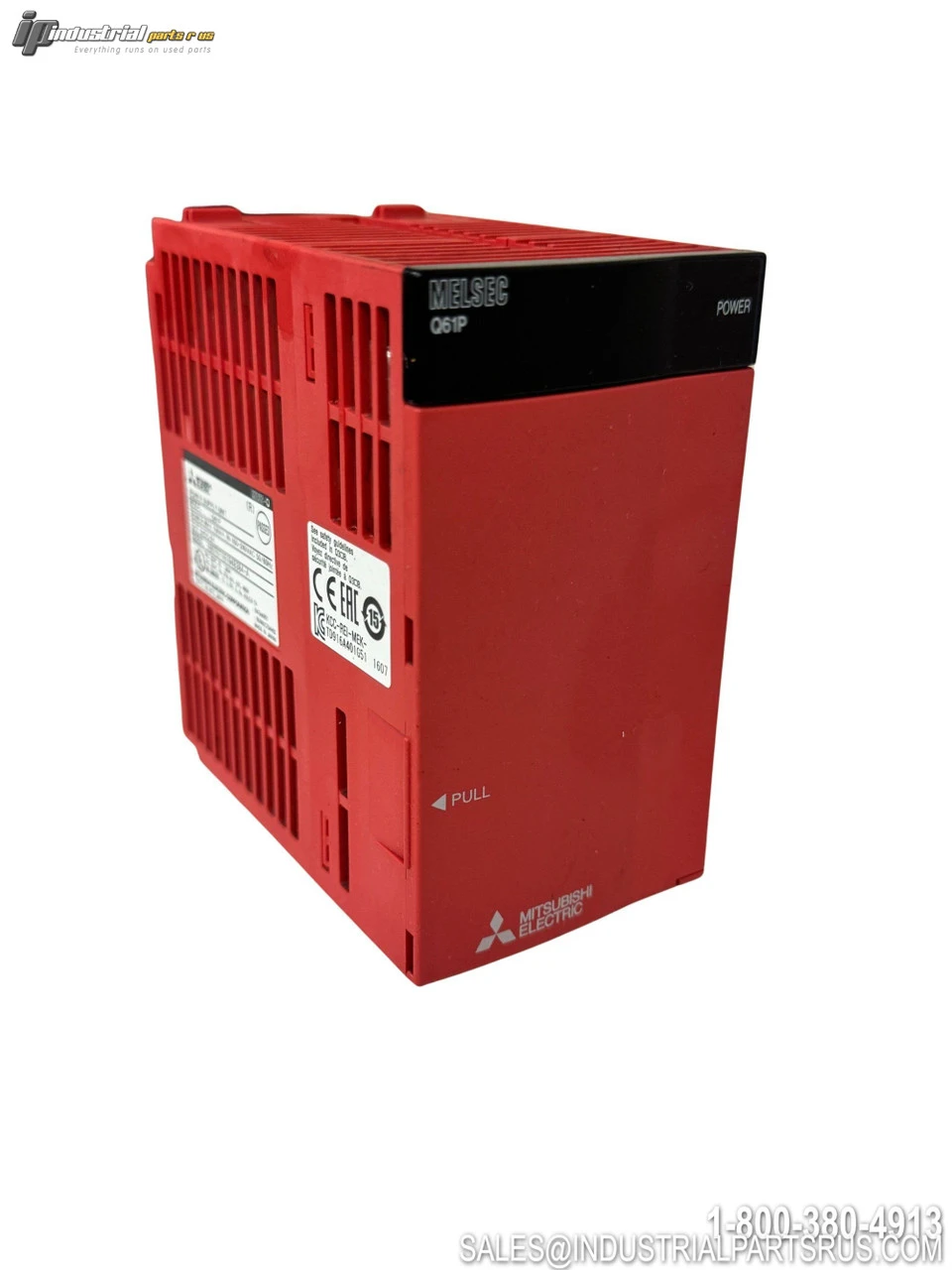

USED MITSUBISHI Q61P

The Mitsubishi Electric Q61P is a power supply module (PSU) for the MELSEC-Q Series programmable logic controller platform. It accepts a wide-range 100–240V AC input and delivers a stable 5V DC output at up to 6A (30W) to power the CPU, I/O modules, and all other modules mounted on the Q Series base unit. The module features built-in overcurrent and overvoltage protection, an ERR contact output for external fault diagnosis, and an LED power indicator, making it a robust and reliable foundation for industrial automation systems.
Specification
Value
Brand
Mitsubishi Electric
Model / Part Number
Q61P
Product Type
PLC Power Supply Module
Series / Platform
MELSEC-Q (QnU)
Rated Input Voltage
100–240V AC (+10% / -15%)
Input Voltage Range
85–264V AC
Input Frequency
50/60 Hz ±3 Hz
Input Voltage Distortion Factor
5% or less
Max. Input Apparent Power
105 VA
Inrush Current
20A max within 8 ms (at 100V AC); 40A max (at 200V AC)
Output Voltage
5V DC
Rated Output Current
6A (5V DC line)
ERR Contact Output
24V DC, 0.5A
Overcurrent Protection Range
6.6–7.9A
Overvoltage Protection Range
5.5–6.5V
Efficiency
70% or higher
Allowable Momentary Power Failure
Within 20 ms
Power Indicator
LED (lit at 5V DC output)
Base Unit Slots Occupied
1
Compatible Base Units
Q3_DB, Q3_B, Q6_B (MELSEC-Q Series)
Certifications / Approvals
UL, cUL, CE, RoHS
Weight
0.31 kg (0.68 lbs)
We warranty all items for 30 days from date of purchase.
