USED 2012 AMADA HDS2204NTW
Overview
2012, great condition

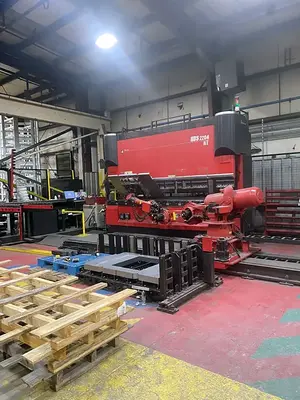

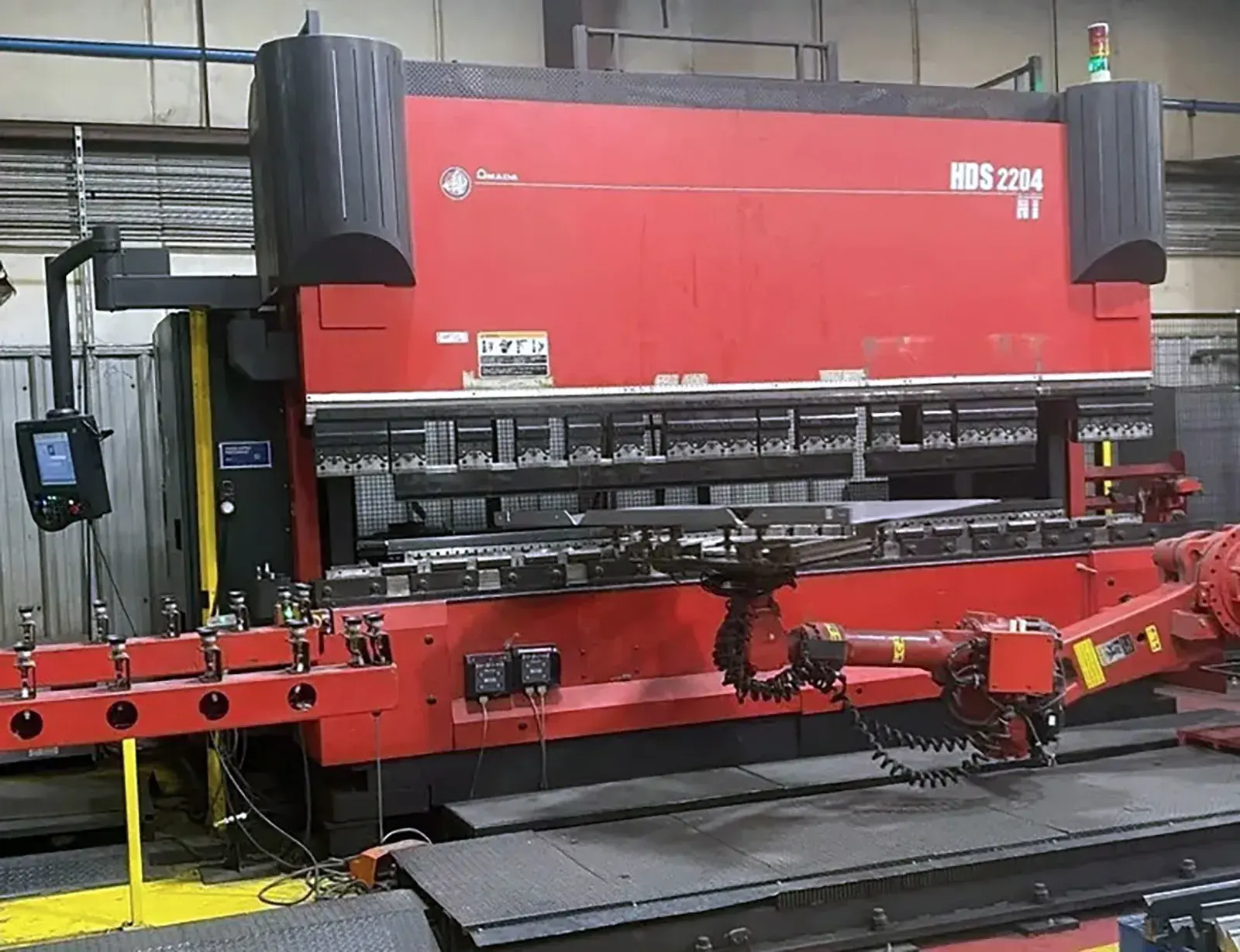

The Amada HDS2204NTW CNC Hydraulic Press Brake (2012) is a high-precision hybrid bending solution designed for heavy-duty metal forming. Equipped with AMNC-PC control and advanced backgauging, it delivers exceptional accuracy and productivity. Ideal for structural fabrication, automotive chassis parts, aerospace components, and heavy equipment manufacturing requiring strength, repeatability, and tight tolerances.
Specs
Tonnage: 243 Tons
Type: HYD
# Axis: 8
Capacity: 243 Ton
Overall Length of Bed: 14'
Distance Between Housings: 148"
Stroke.: 9.84"
Open Height: 26"
Machine Length (C): 224.8"
Machine Length (D): 126.57"
Approach Speed: 7.87 IPS
Bending Speed: 0.78 IPS
Power Requirement: 99 Amps @ 200 Volts
Hydraulic Oil Capacity: 33.4 Gallons
Astro 165W Structure (A=Travel Axis): Vertical 6-Axis Multi-Joint Type + Traveling Axis 15.75 Ft, 20 Ft
Astro 165W Lifting Capacity: 364 Lbs
Max. Parts Size: 59˝ x 118˝
Min. Parts Size: 5.9˝ x 5.9˝
Thickness: 0.024˝– (0.236˝ with Special Hands)
Positioning Accuracy: ±0.0027˝ (Robot), ±0.0078˝ (Axis)
Robot Weight: 3,400 Lbs
Equipped With
Control Amada AMNC Control

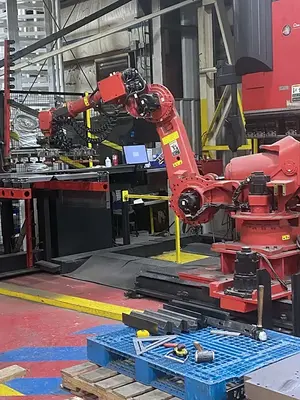

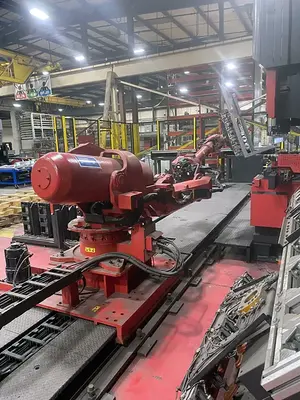

Astro 165W NT Robotic Bending/Loading System
