USED 2021 OKUMA U30002SW/1500
Overview
2021

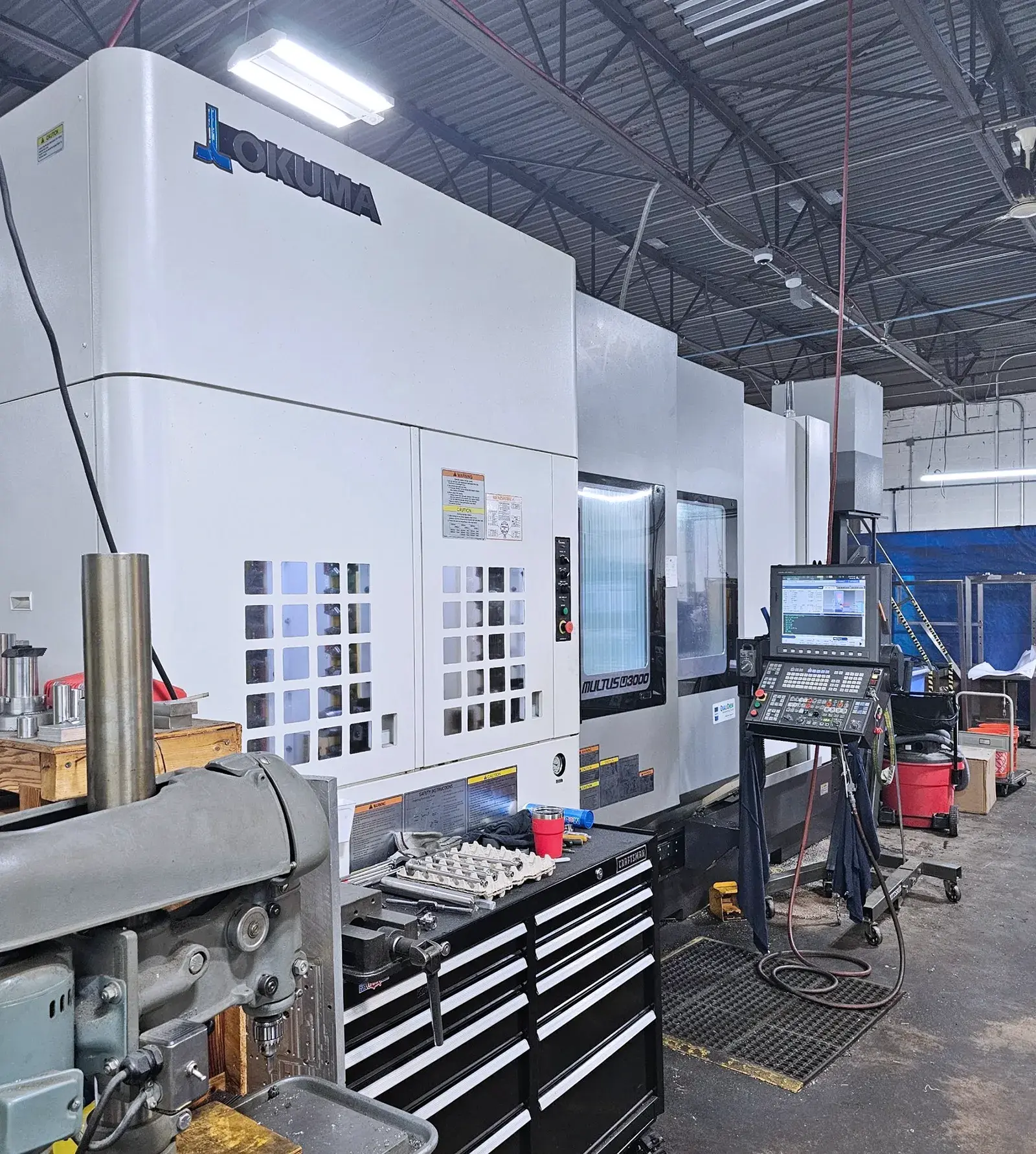

The OKUMA MULTUS U3000-2SW/1500 5-Axis Machining Center (2021) is a high-performance multitasking CNC designed for complete done-in-one machining. Combining turning, milling, drilling, and gear cutting in a single setup, it maximizes accuracy and productivity for aerospace, energy, oil & gas, automotive, heavy equipment, and high-precision general engineering applications.
Specs
Swing over Bed: 25.59"
Max Cutting Diameter: 25.59"
Max Cutting Length: 59.06"
X-Axis Travel: 25.39"
Y-Axis: Yes
Y-Axis Travel: 9.84" (+/- 4.92")
Z-Axis Travel: 62.99"
Bar Capacity: 3.1"
Spindle Nose: A2-8
Spindle Motor: 30 hp
Spindle Speed: 4,200 RPM
RAPID TRAVERSE RATE - X-AXIS: 1,968 in/min.
RAPID TRAVERSE RATE - Y-AXIS: 1,574 in/min.
RAPID TRAVERSE RATE - Z-AXIS: 1,969 in/min.
Sub Spindle: Yes
SUB SPINDLE - Spindle Nose: A2-6
SUB SPINDLE - SPINDLE MOTOR : 30 hp
Sub Spindle - Spindle Speed: 5,000 RPM
SUB SPINDLE / W-AXIS TRAVEL: 62.36"
B-AXIS SPINDLE MOTOR: 30 hp
B-AXIS MILLING SPEED: 12,000 RPM
B-Axis Spindle Taper: CAPTO C6
B-AXIS TOOL POSITIONS: 80
TURRET 2 CAPACITY: 12
TURRET 2 - X-AXIS TRAVEL: 9.25"
TURRET 2 - Z-AXIS TRAVEL: 62.36"
Equipped With

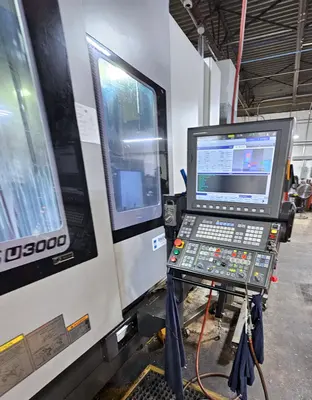

OKUMA OSP-P300SA-L THINC CONTROL

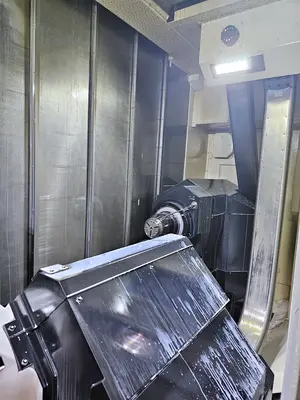

FULL 5-AXIS CONTOURING B-AXIS MILLING SPINDLE (12000 RPM CAPTO C6)
Y-AXIS

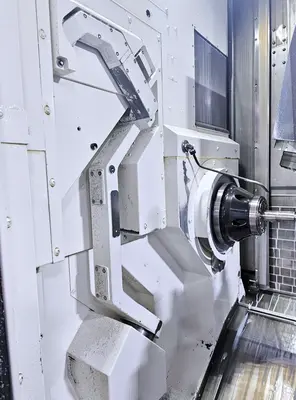

SUB SPINDLE

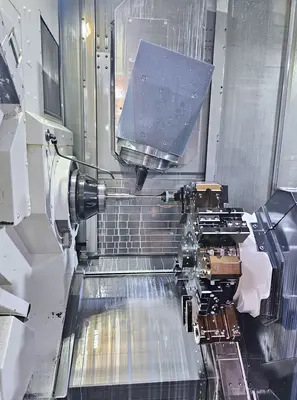

LOWER TURRET (STATIC)
BIG BORE (3.1” BAR CAPACITY – MAIN SPINDLE)
2-SPEED GEARBOX
ROYAL QG-80 COLLET CHUCK (MAIN)
ROYAL QG-65 COLLET CHUCK (SUB)
C-AXIS SYNC (BOTH SPINDLES)

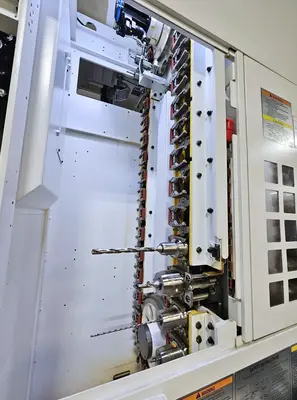

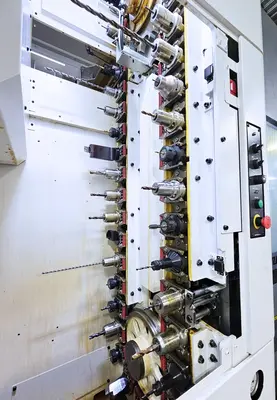

80-TOOL POSITIONS (CAPTO C6)
60”/1500MM BED LENGTH
RENISHAW RMP600 AUTO-GAUGING PROBE
AUTOMATIC TOOL PRESETTER

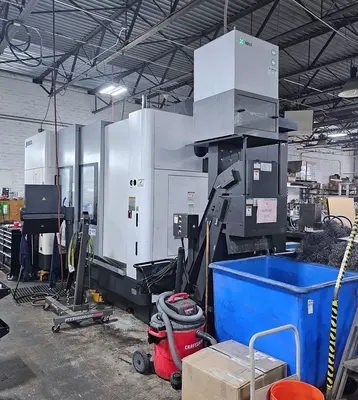

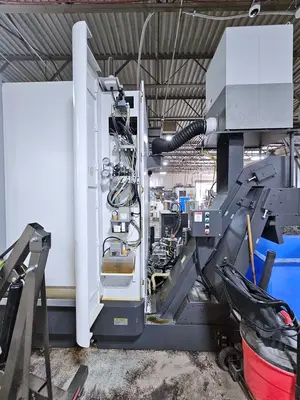

CHIP CONVEYOR

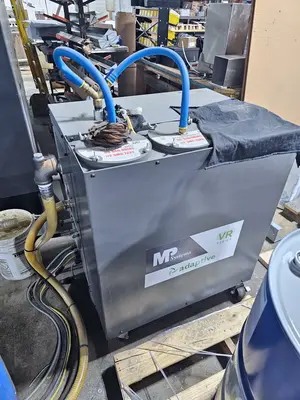

MP SYSTEMS (VF-8) HIGH-PRESSURE COOLANT UNIT
NIAGARA SHOWER COOLANT
EXO-MIST MIST COLLECTOR
Y-AXIS GAUGING WITH SLOPE GAUGING
C-AXIS AUTO ZERO OFFSET FUNCTION (BOTH SPINDLES)
Z-AXIS AUTO ZERO OFFSET FUNCTION (BOTH SPINDLES)
SUPER NURBS (X+ Y+ Z+ C+ B)
ADVANCED ONE-TOUGH IGF
MULTI-EDGE LATHE TOOL INDEX FUNCTION
THERMO FRIENDLY CONCEPT (SPINDLES & CASTING)
NEGATIVE TOOL RADIUS COMPENSATION
GEOMETRUC ERROR COMPENSATION
GEOMETRIC ERROR GAUGING
TOOL CENTER POINT CONTROL II
STRIAGHTNESS COMPENSATION
COLLISION AVOIDANCE SYSTEM
(8) SETS OF SPARE M-CODES
SPINDLE FLUCTUATE
FIXTURE TRACKING
SYNCHRO TAPPING
SPINDLE SYNC TAP
ARC THREAD CUT
3D ANIMATION
ANIMATION
HI-CUT PRO
MAC MAN
(50) CAPTO C6 TOOL HOLDERS
MORE OSP OPTIONS THAN LISTED (OSP DATA CARD AVAILABLE UPON REQUEST)

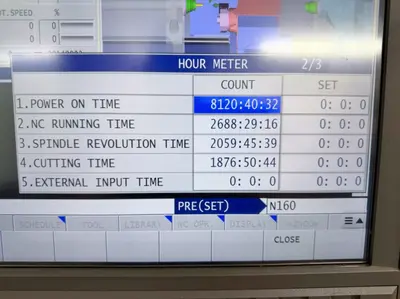

** AS OF JUNE 2026 CUTTING TIME – 1876 HOURS
** FULL REPLACEMENT COST AS EQUIPPED - $950000+
** MACHINE CUT PRIMARILY STAINLESS STEEL PLASTIC & HASTELLOY
** IN PLANT UNDER POWER AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
