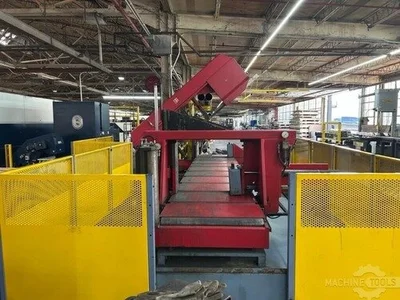

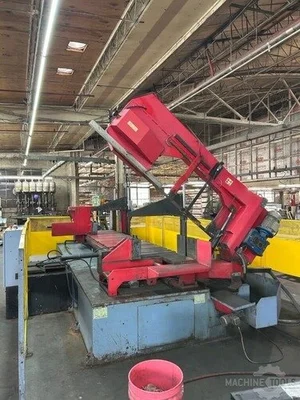

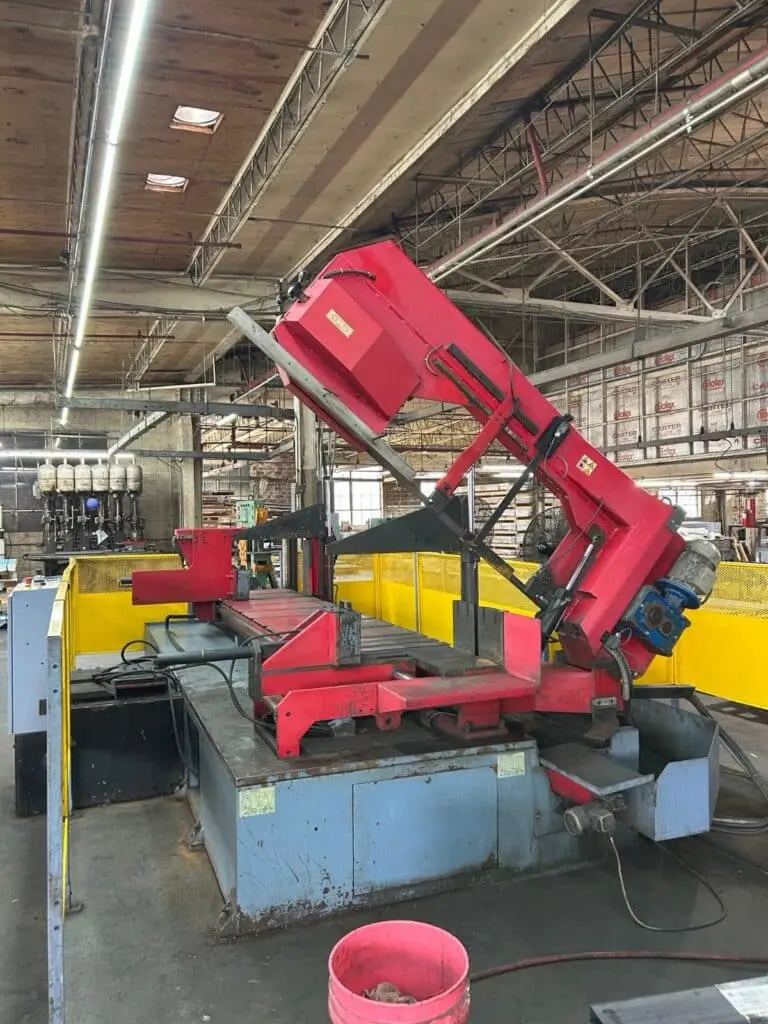

USED 2008 BTM 71.51 ADS

General Info

Stock #: 190260010
Location: Decatur, GA
Brand: Btm
Model: 71.51 ADS

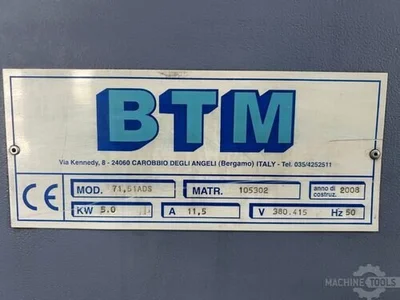

Serial #: 105302
Year: 2008
Approx. Shipping Weight: 11,000 Lbs.
Approx. Shipping Dimensions: 20' L x 8' W x 7' H
Skidding Fee: Skidding Unavailable

Specifications

Rectangular Cutting Capacity (90°): 28" x 20"
Round Cutting Capacity (90°): 20"
Rectangular Cutting Capacity (45°): 22" x 12.6"
Round Cutting Capacity (45°): 19.7"
Rectangular Cutting Capacity (60°): 15.7" x 9.4"
Round Cutting Capacity (60°): 15"

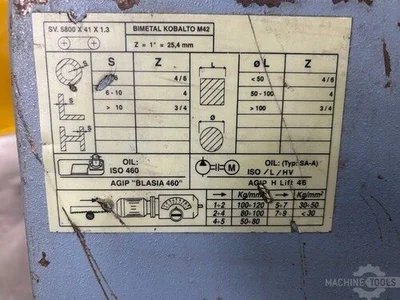

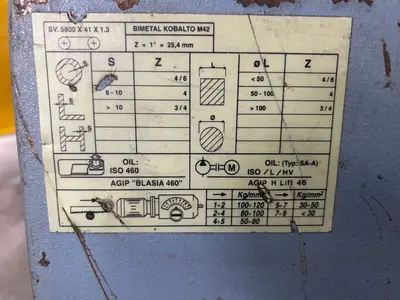

Blade Size: 5800mm x 41mm x 1.3mm, Bimetal M42
Miter Capability: 60° Left & Right
Blade Speed: 22 - 100 m/min (Variable, Inverter Driven)
Carriage Feed Travel: 118"
Max Cutting Length (With Repeats): 39'
Electrical: 230V/3PH

Equipped With

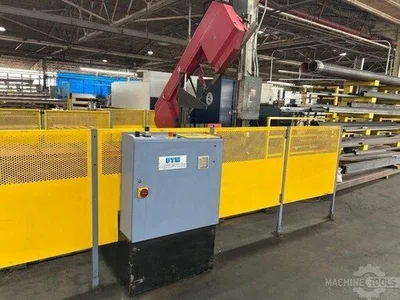

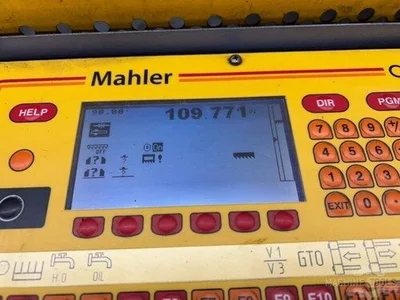

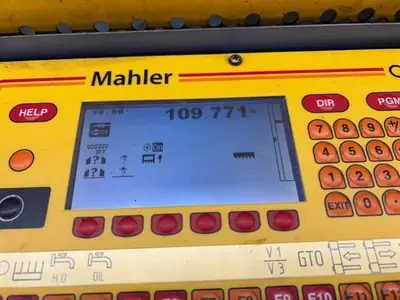

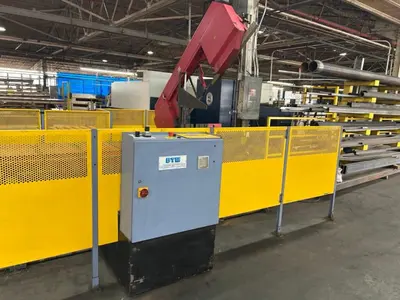

Mahler Ceb CNC Controller (Graphical LCD Display, 99 Program Memory, Programmable Cut Length & Miter Angle), Automatic CNC Carriage Feeding System (3000Mm Travel, Ball Guide Ways, Inverter Driven Motor), Hydraulic Head Rotation To 60° Left & Right (CNC Controlled Via DC Motor), Automatic Hydraulic Blade Tensioning With Auto-Release, Variable Speed Inverter Drive, Hydraulic Full-Stroke Vises, Workpiece Height Sensor, Automatic Feed Rate Correction Based On Cutting Resistance, Carbide (Widia) Blade Guides, Chip Auger, Coolant System, Yellow Perforated Safety Fencing, Emergency Stop Buttons, Btm Technical Manual, Made In Italy

Additional Info
The BTM 71.51 ADS 20" x 28" Automatic CNC Horizontal Bandsaw can be demoed upon request, check out the video on the listing to see it in operation.
