USED 2022 ABB IRB 4600-40/2.55 ROBOT WITH IRC5 CONTROLLER, CABLES. USED FOR TESTING.

1- NEVER IN PRODUCTION ABB IRB 4600-40/2.55 WITH IRC5 CONTROLLER AND CABLES
SERIAL NUMBER: 4600-
DATE OF MFG. 2022
STK#: 104171
HOURS 46
NEWEST ARM DESIGN FROM ABB FOR THE 4600 SERIES
===================================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

Robot Specifications:
Number of axes: 6+3 external (up to 36 with MultiMove)
Controller: IRC5
Payload 40 kg
Reach 2550 mm
Axes 6
Repeatability 0.05 mm
Mass 412 kg
Structure Articulated
Mounting Floor, Inverted, Angle

Motion Range:
J1:+180° to -180°
J2:+150° to -90
J3:+75° to -180°
J4:+400° to -400°
J5:+120° to -125°
J6:+400° to -400°

Axis Speeds:
J1:175°/s
J2:175°/s
J3:175°/s
J4:250°/s
J5:250°/s
J6:360°/s

EQUIPPED WITH:

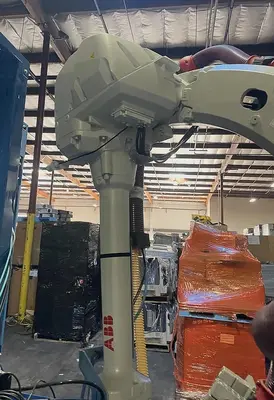

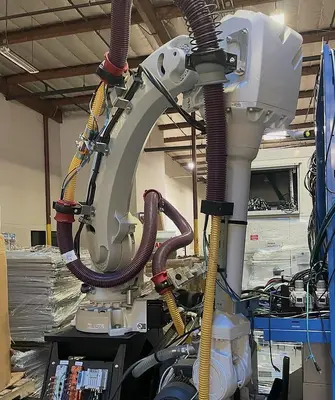

ABB ROBOT ARM MECHANICAL UNIT

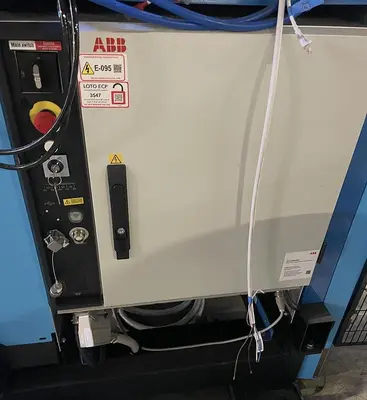

ABB ROBOT CONTROLLER
ABB ROBOT CONNECTION CABLES
ABB VERSION 11 TEACH PENDANT

PER THE OEM:
IRB 4600 is a highly productive general purpose robot optimized for short cycle times where compact robots can help create high density cells. The IRB 4600 enables more compact manufacturing cells with increased production output and higher quality - and that means improved productivity.
