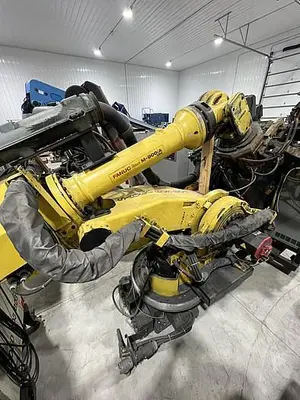

USED FANUC M900IA/350 6 AXIS ROBOT WITH R30IA CONTROLLER AND SERVO SPOT WELD GUN

1-USED FANUC M900iA/350 6 AXIS CNC ROBOT WITH R30iA CONTROLLER
EQUIPPED WITH SERVO DRIVEN SPOT WELD GUN

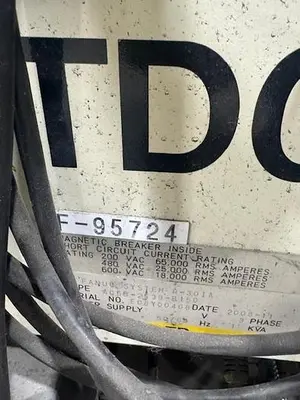

MACHINE SERIAL NUMBER F95724
DATE OF MFG. 11/2008
STK#104149
===================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

Specifications:
Axes: 6
Payload: 350kg
V-Reach 2650
H-Reach: na
Repeatability: ±0.3mm
Robot Mass: 1720kg
Structure: Articulated

Robot Motion Speed:
J1 100 °/s (1.75 rad/s)
J2 95 °/s (1.66 rad/s)
J3 95 °/s (1.66 rad/s)
J4 105 °/s (1.83 rad/s)
J5 105 °/s (1.83 rad/s)
J6 170 °/s (2.97 rad/s)

Robot Motion Range:
J1 ±360°
J2 ±150°
J3 ±223°
J4 ±720°
J5 ±250°
J6 ±720°

MECHANICAL WEIGHT 1720 KG
MOUNTING METHOD FLOOR, CEILING, ANGLE

EQUIPPED WITH:

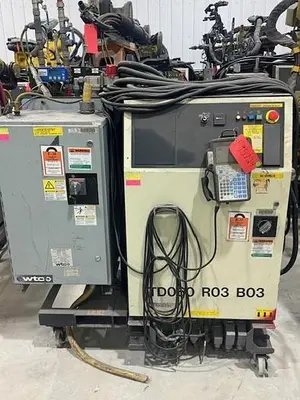

R30iA CONTROLLER
CABLES
COLOR TEACH PENDANT
ALUMINUM SPOT WELD GUN

THE M900iA SERIES ROBOT IS ENGINEERED FOR PRECISE, VERY HIGH PAYLOAD/HIGH SPEED
OPERATION. THE M900iA SERIES IS A SIX AXIS, ELECTRIC SERVO DRIVEN FAMILY OF ROBOTS
DESIGNED FOR A VARIETY OF MANUFACTURING AND SYSTEM PROCESSES.

FOB TRUCK, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.
