USED 2007 KITAKO VT4-350 4 SPINDLE VERTICAAL TURNING CENTER

Kitako VT4-350 4 Spindle Verticaal Turning Center
Year 2007
Stock # 104145

Specifications:
=====================================================================

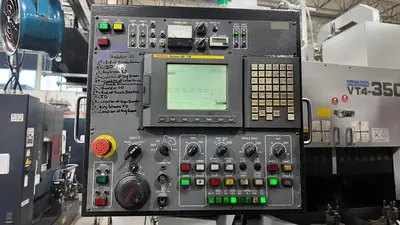

CNC Control Fanuc 18TB CNC Control
# Spindles 4
Chuck Size 12"
Max Turning Diameter 13.8"
Max Turning Length 7.9"
X-Axis (Cross Travel) 11.81"
Z-Axis (Longitudinal Travel) 17.72"
Spindle Nose A2-8
Spindle Horsepower 25 HP
Spindle Speed Range 25 - 3,200 RPM
X-Axis Rapid Traverse Rate 787 IPM
Z-Axis Rapid Traverse Rate 945 IPM
Approximate Machine Dimensions 106" x 98"
Approximate Machine Height 115"
Approximate Machine Weight 27,500LBS

Fanuc 18TB CNC Control, RS-232 Port, Background Edit, (4) Spindle Design with (2) in the Machining Area and (2) in Load Position, Separate Drive for Each Spindle, (4) 12" 3-Jaw Power Chucks, Hydraulic Actuators on all (4) Spindles For Chucks or Hydraulic Clamping. Spindle Orientation, 6 Position Tool Turrets, Chip Conveyor and Coolant System
