USED FANUC M-710IC/70 6 AXIS ROBOT WITH R-30IB CONTROL

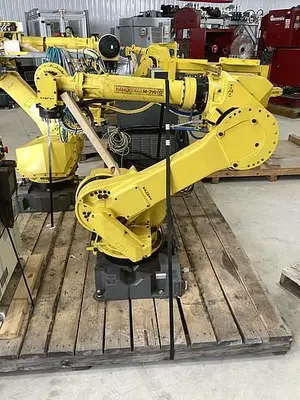

1-USED FANUC M-710iC/70 6 AXES ROBOT WITH FANUC R-30iB CONTROLLER
SERIAL NUMBER F177970
DATE OF MFG. 03/2016
FANUC MECHANICAL ARM TYPE A06B-1125-B202

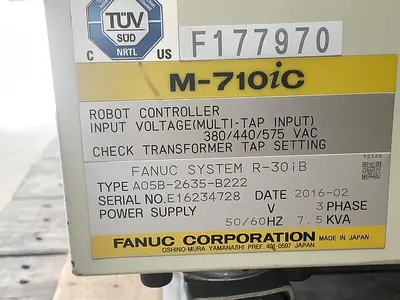

FANUC R-30iB CABINET TYPE A05B-2635-B222
HOURS SHOWN ON METER 680
STK#104148
===================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

The Fanuc M-710iC/70 is the heaviest M-710 in the series and highly sought after. It runs on the Fanuc R30iA or R30iB controller depending on the date of manufacture. This innovative series of lightweight robots features a slim wrist, rigid arm and small footprint. Offering best payload and inertia in its category, this powerful 6-axis model is suitable for various applications and combines a 70 kg payload with extremely high axis speeds. The robot can be deployed for a large array of applications.

Robot Specifications:
Axes: 6
Payload: 70kg
H-Reach: 2050mm
Repeatability: ±0.07mm
Robot Mass: 560kg
Structure: Articulated
Mounting: Floor, Inverted, Angle

Robot Motion Speed:
J1 160 °/s (2.79 rad/s)
J2 120 °/s (2.09 rad/s)
J3 120 °/s (2.09 rad/s)
J4 225 °/s (3.93 rad/s)
J5 225 °/s (3.93 rad/s)
J6 225 °/s (3.93 rad/s)

Robot Motion Range:
J1 ±360°
J2 ±225°
J3 ±440°
J4 ±720°
J5 ±250°
J6 ±720°

Applications:
Material Handling Robots
Part Transfer Robots
Machine Loading Robots
Assembly Robots
Packaging Robots
Arc Welding Robots
Spot Welding Robots
Cutting Robots
Fiberglass Cutting Robots
Material Removal Robots

EQUIPPPED WITH:

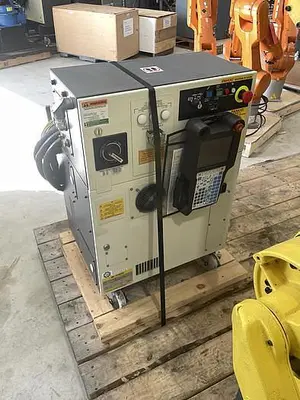

Fanuc R-30iB Controller
Fanuc Robot Connection Cables
Fanuc Color I Pendant
