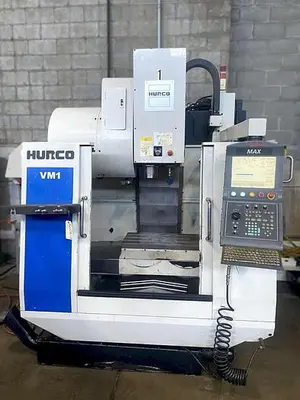

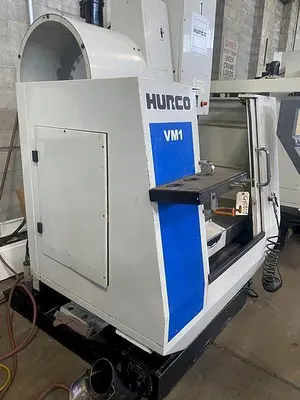

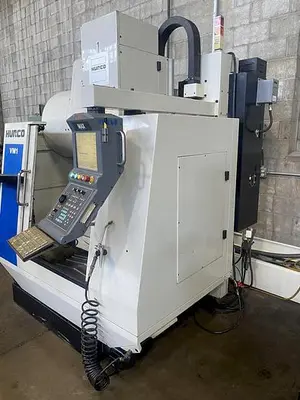

USED HURCO VM-1 CNC VERTICAL MACHINING CENTER
Overview
HURCO VM-1 CNC VERTICAL MACHINING CENTER
YEAR 2007
SN VM1=06037117CHA
STOCK # 104141
SPECIFICATIONS SUBJECT TO VERIFICATION
=========================================================

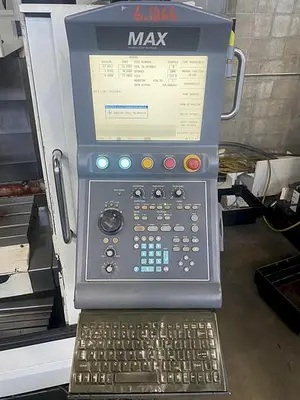

Type of CNC Control Hurco UltiMax CNC Control
# Axis 3

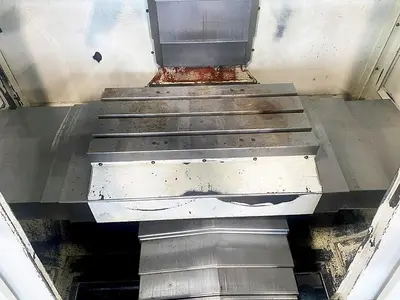

Table Size 30" x 14"
Table Load Capacity 750 LBS
X-Axis (Longitudinal Travel) 26"
Y-Axis (Cross Travel) 14"
Z-Axis (Vertical Travel) 18"
Rapid Traverse Rate, All Axes 750 IPM
Spindle Horsepower - Peak (1 Min. Rating @ 1450 RPM) 15 HP (11 kW)
Spindle Horsepower - Continuous 10 HP (7.5 kW)
Max Spindle Speed 8,000 RPM
Spindle Taper CAT 40
Torque, Up To 54 FT-LBS @ 1,450 RPM
Automatic Tool Changer Capacity (ATC) 16
Automatic Tool Changer Style Side Mount Swing-Arm

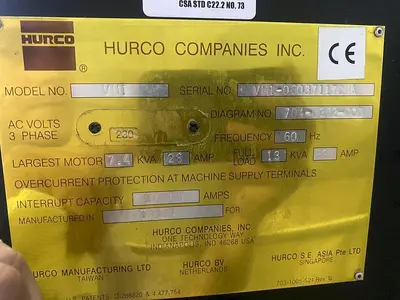

Electrics 230/3/60
Approximate Machine Dimensions 91" x 78"
Approximate Machine Height 96"
Approximate Machine Weight 6,500 LBS
CONDITION: This Machine Appears to be in Excellent Condition !
Equipped With
Hurco UltiMax CNC Control, 30" x 14" Table, Rigid Tapping, Manual Pulse Generator (MPG), RS-232 Port, Central Lubrication System, 16 Station Tool Changer, Coolant System.
www.harbormachinery.com
231-526-9525
