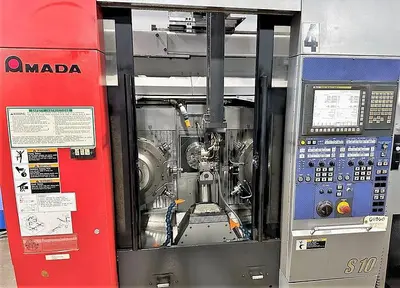

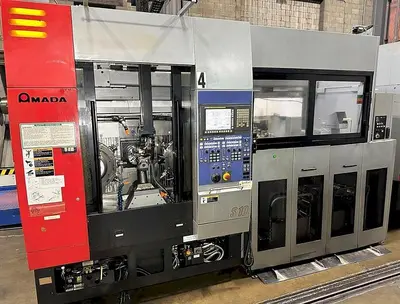

USED DMG AMADA WASINO S10 8-AXIS CNC MULTI-TASKING TURNING/MILLING CENTER

DMG AMADA WASINO S10 8-AXIS CNC MULTI-TASKING TURNING/MILLING CENTER
YEAR 2012

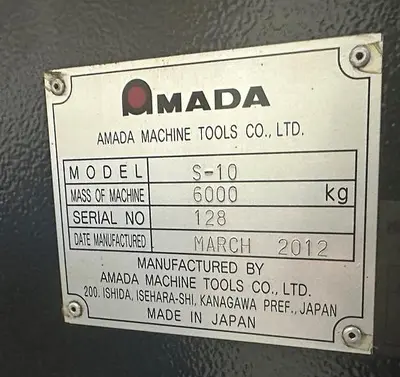

SN 128
STOCK #104139

SPECIFICATIONS SUBJECT TO VERIFICATION
================================================================

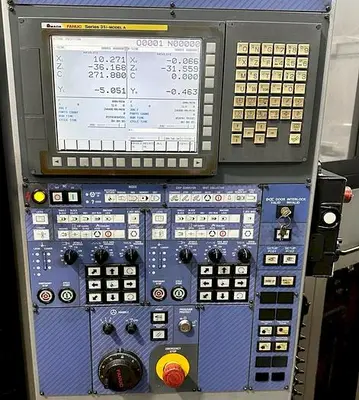

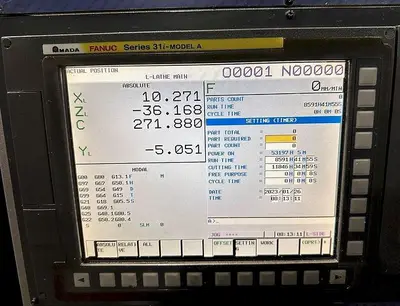

Type of CNC Control Fanuc 31i Model B CNC Control
# Axis 8
Chuck Size 6"
Max Swing Over Bed 12.20"
Max Turning Diameter 10.24"
Max Distance Between Centers 10.63"
X-Axis (Cross Travel of Left Turret) 5.91"
Z-Axis (Longitudinal Travel of Left Turret) 13.39"
Y-Axis (Both Turrets) TBD
X2-Axis (Cross Travel of Right Turret) 5.91"
Z2-Axis (Longitudinal Travel of Right Turret) 13.39"
Spindle Horsepower 20 HP (30 minute) / 14 HP (Continuous)
Max Spindle Speed 5,000 RPM
X-Axis Cross Travel Rapid Traverse Rate 994.88 IPM
Z-Axis Longitudinal Rapid Traverse Rate 1,260 IPM
C-Axis (Both Turrets) .001
Left Turret Live Tooling Horsepower 6 HP
Left Turret Live Tooling Speed Range 6,000 RPM
Left Turret Tool Capacity 12
Right Turret Tool Capacity 12
Tailstock? Yes
Approximate Machine Dimensions 66.9" x 78.7"
Approximate Machine Height 80"
Approximate Machine Weight 12,500 LBS

CONDITION: This Machine Appears to be in Excellent Condition !

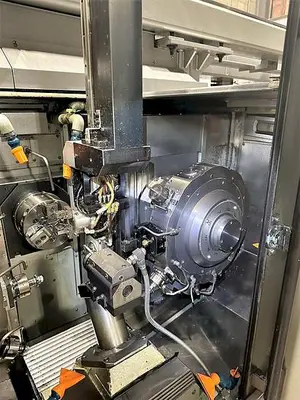

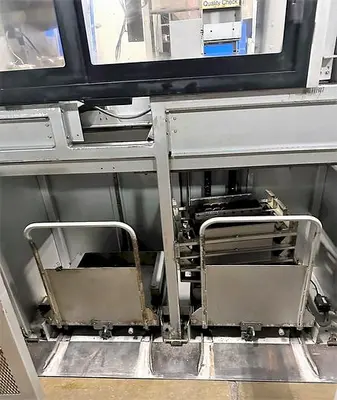

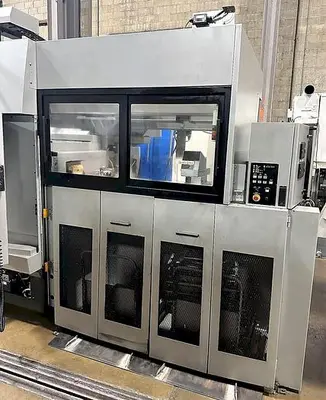

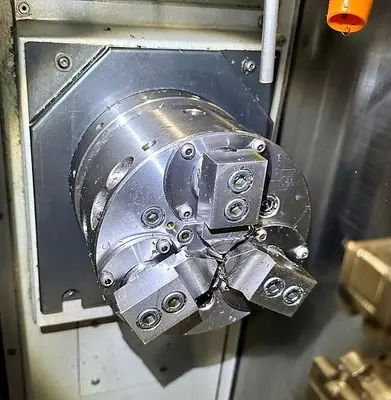

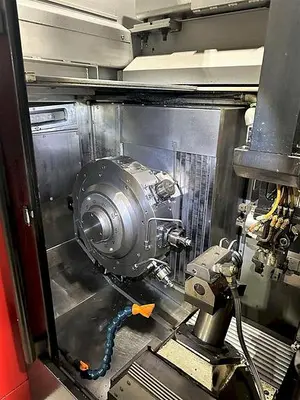

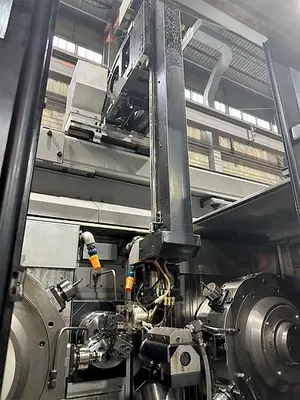

Simultaneous Dual 3-Axis 12-Position Turrets both with Live Tooling/Milling Capability, Automatic Gantry Load and Unload 2-Axis Robot System with Parts Stacker for High Precision and High Throughput, Fanuc 31i Model B CNC Control, 6" Howa H3YS6 Power Chuck, Y-Axis, C-Axis, Remote Handwheel, Part Gauging, Coolant System & Chip Conveyor.

*(3) Machines Available
